Specifications
Equipped With
GENERAL SPECIFICATION:

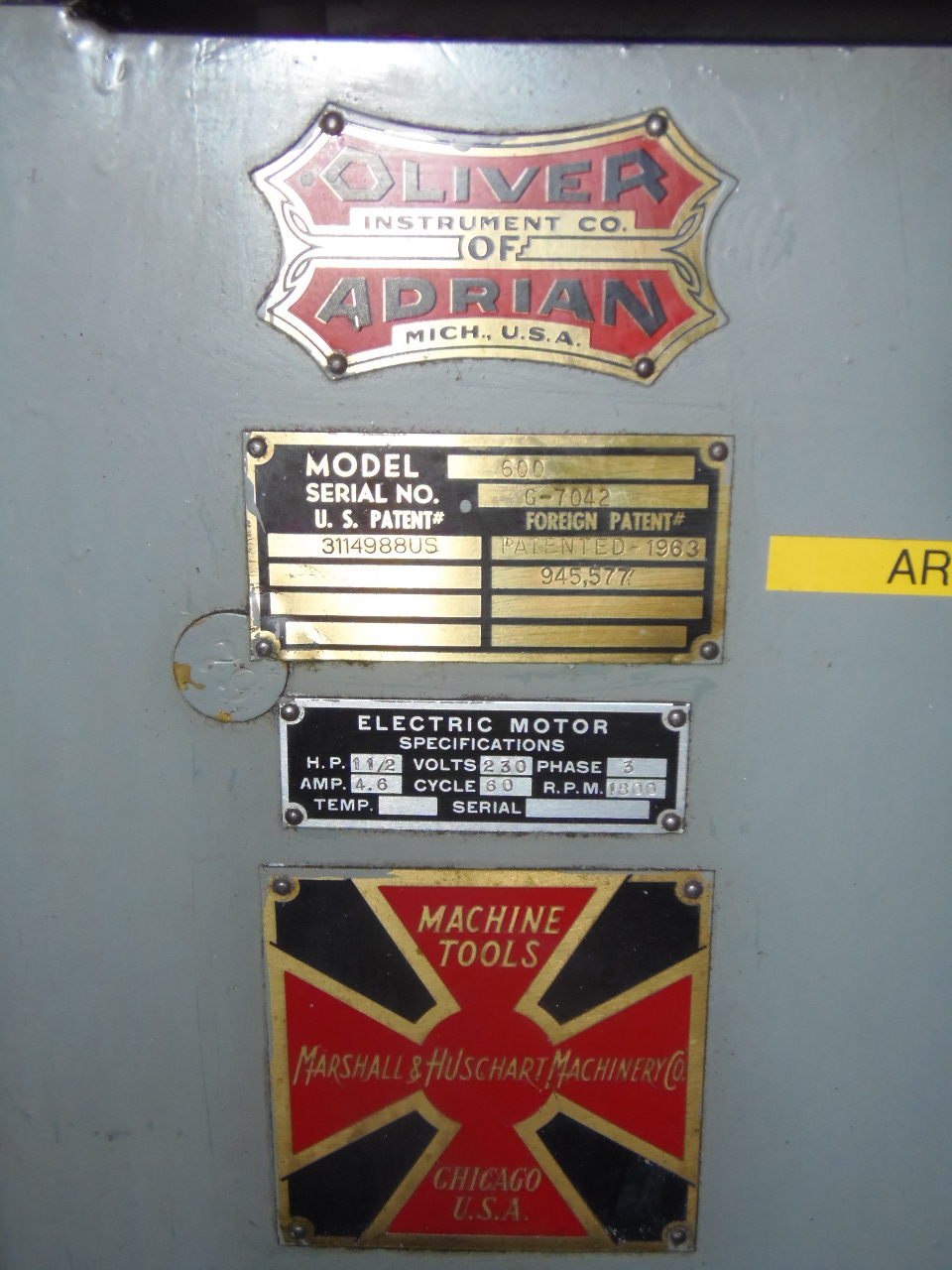

MAKE..................... OLIVER
MODEL.................... 600
SERIAL NUMBER............ G-7042
CAPACITY DIAMETER........ .25" - 3"
CAPACITY LENGTH.......... 28"

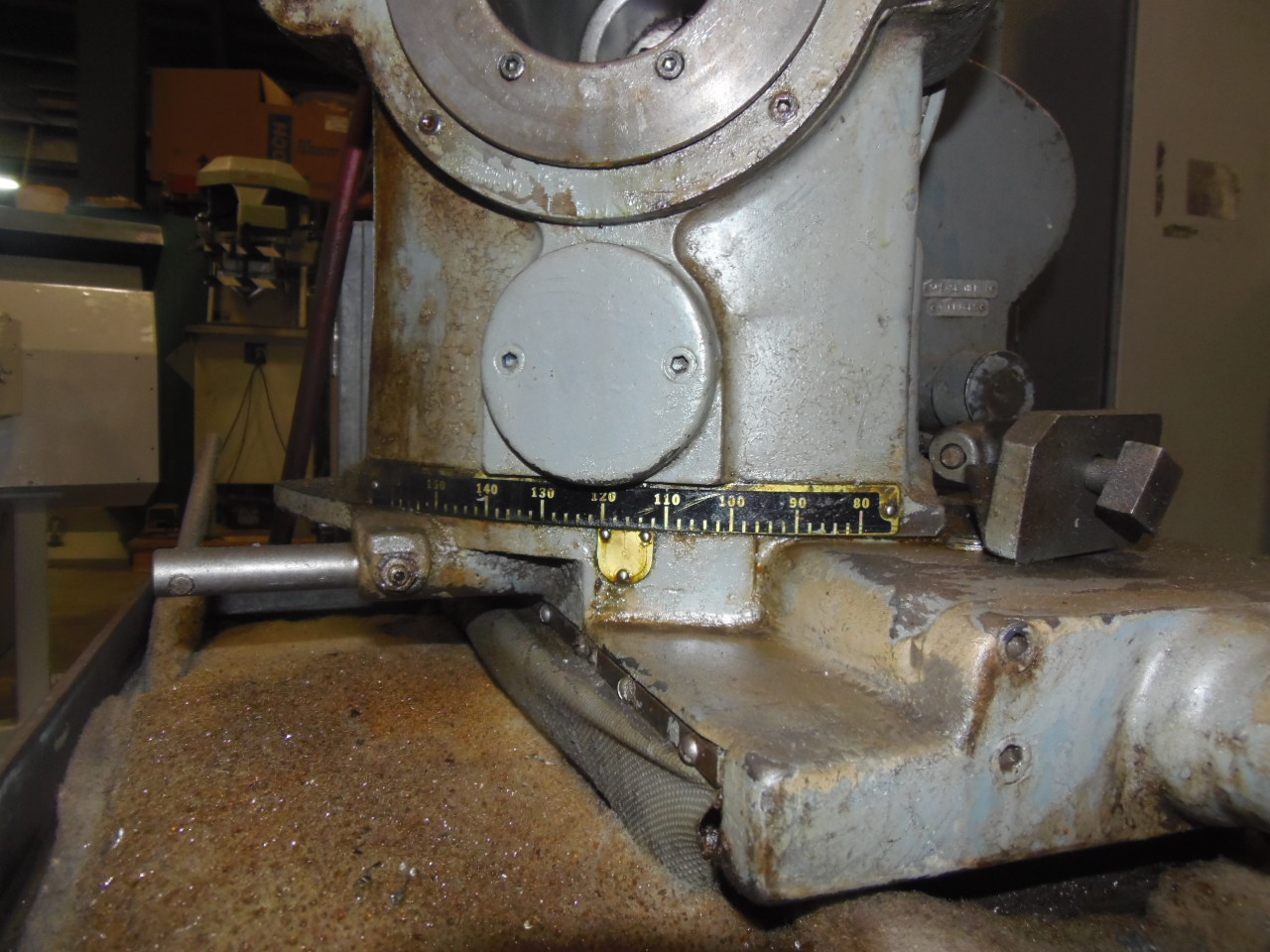

ADJUSTABLE POINT ANGEL... 80 - 160 DEG.
FLUTE DRILLS............. 2, 3, AND 4
MOTOR.................... 2 HP - 1800 RPM
GRINDING WHEEL DIMENSIONS 9" X 2" X 5"
GRINDING WHEEL SPEED..... 2200 RPM
ELECTRICS................ 480V/3PH
WEIGHT................... 1500 LBS.
EQUIPPED WITH:

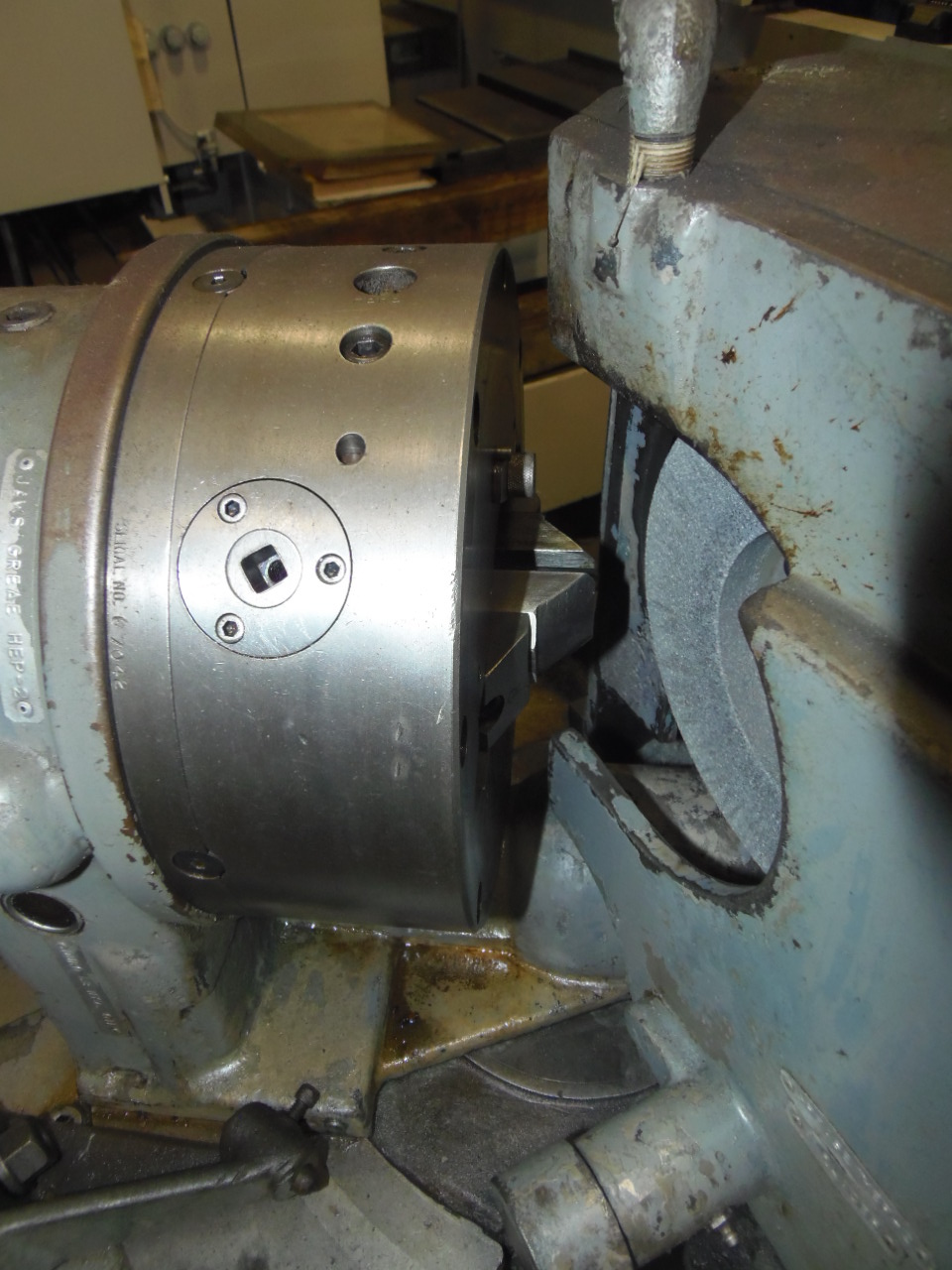

10" 2-JAW CHUCK
3.5" THRU HOLE
CENTER
COOLANT PUMP / TANK
ADJUSTABLE INFEED
SPECIFICATIONS SUBJECT TO VERIFICATION
