Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER........................... OKUMA
SERIAL NUMBER.......................... 0117
AGE.................................... 1998

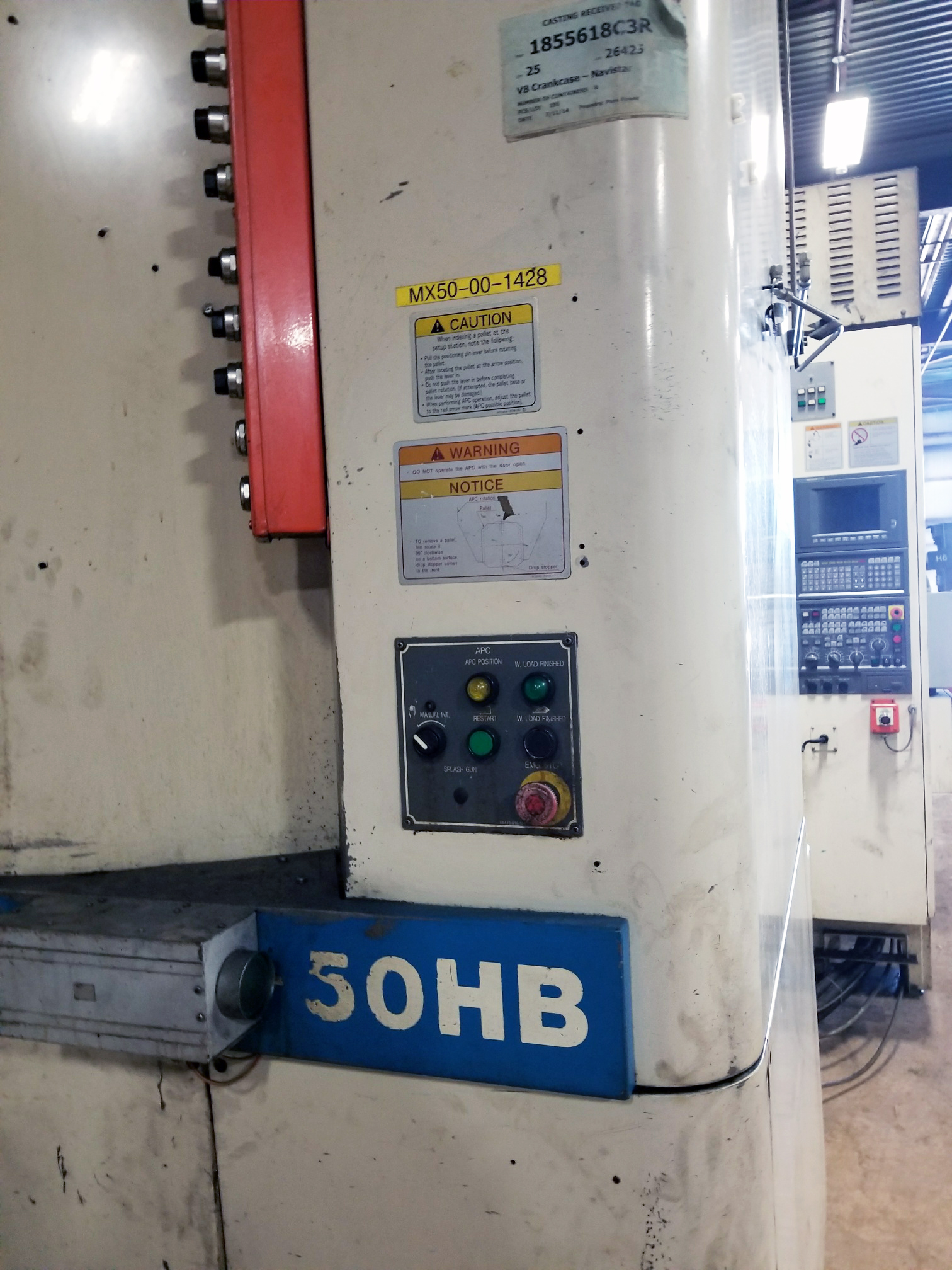

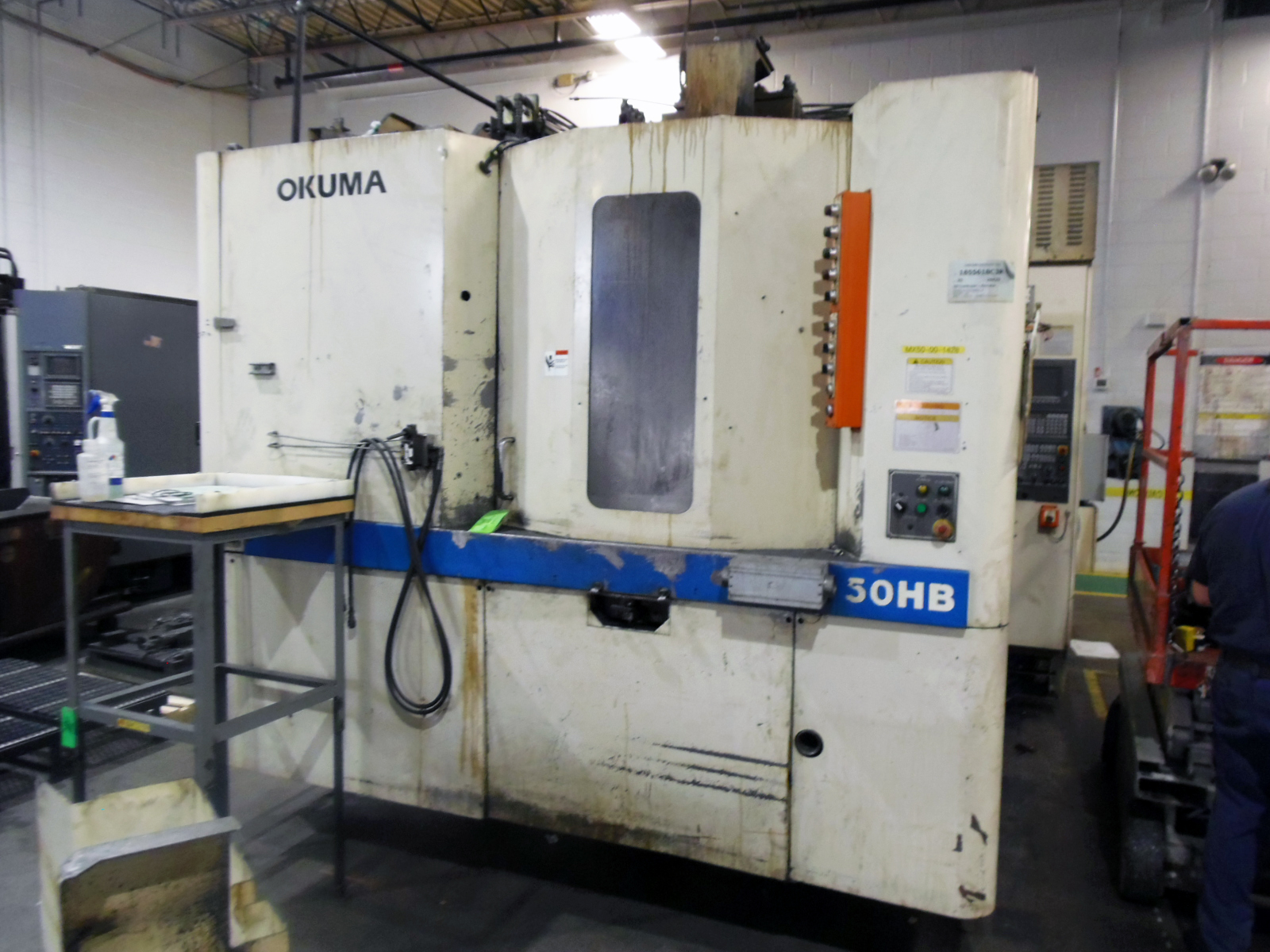

MODEL.................................. MX-50HB

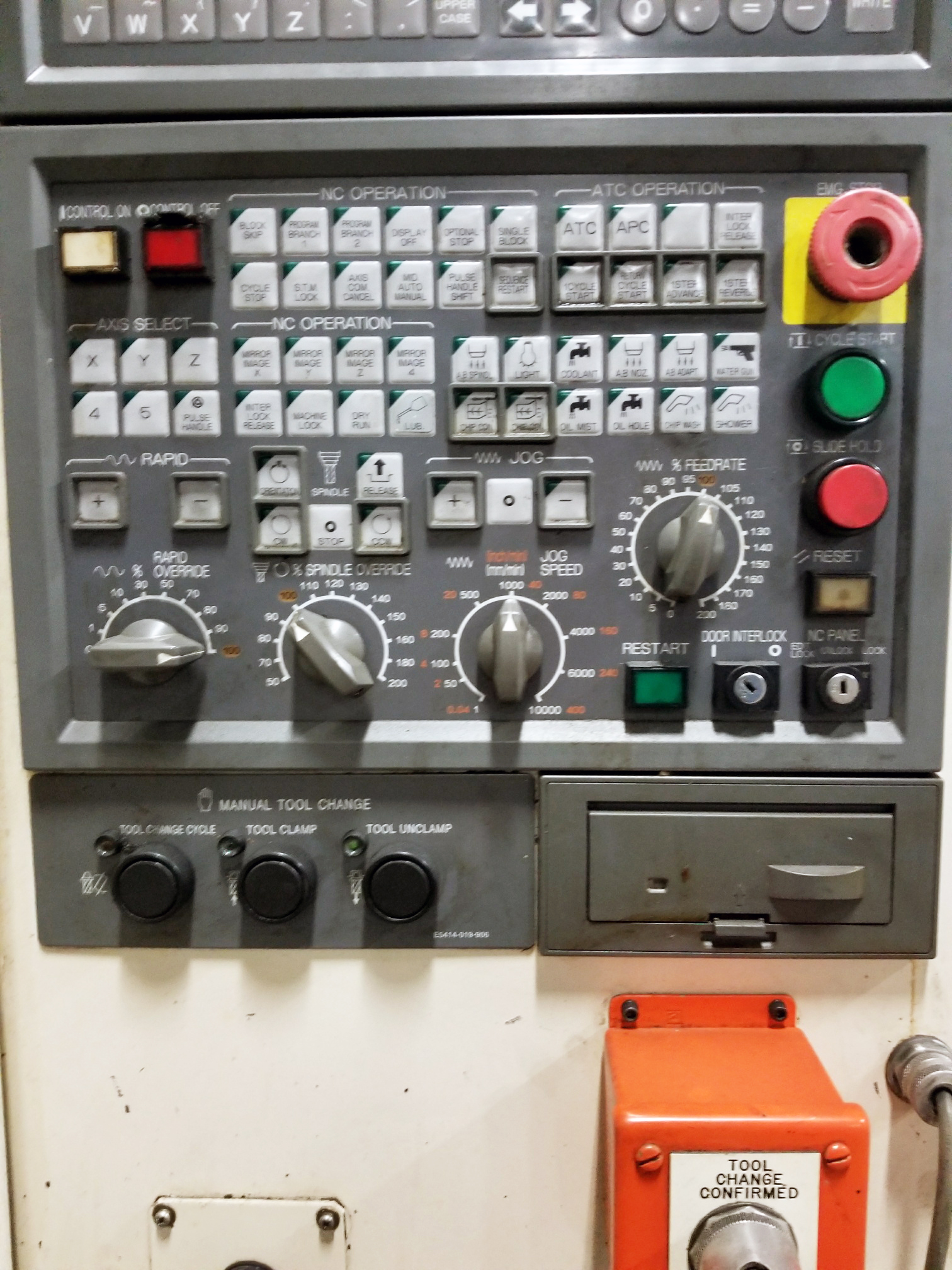

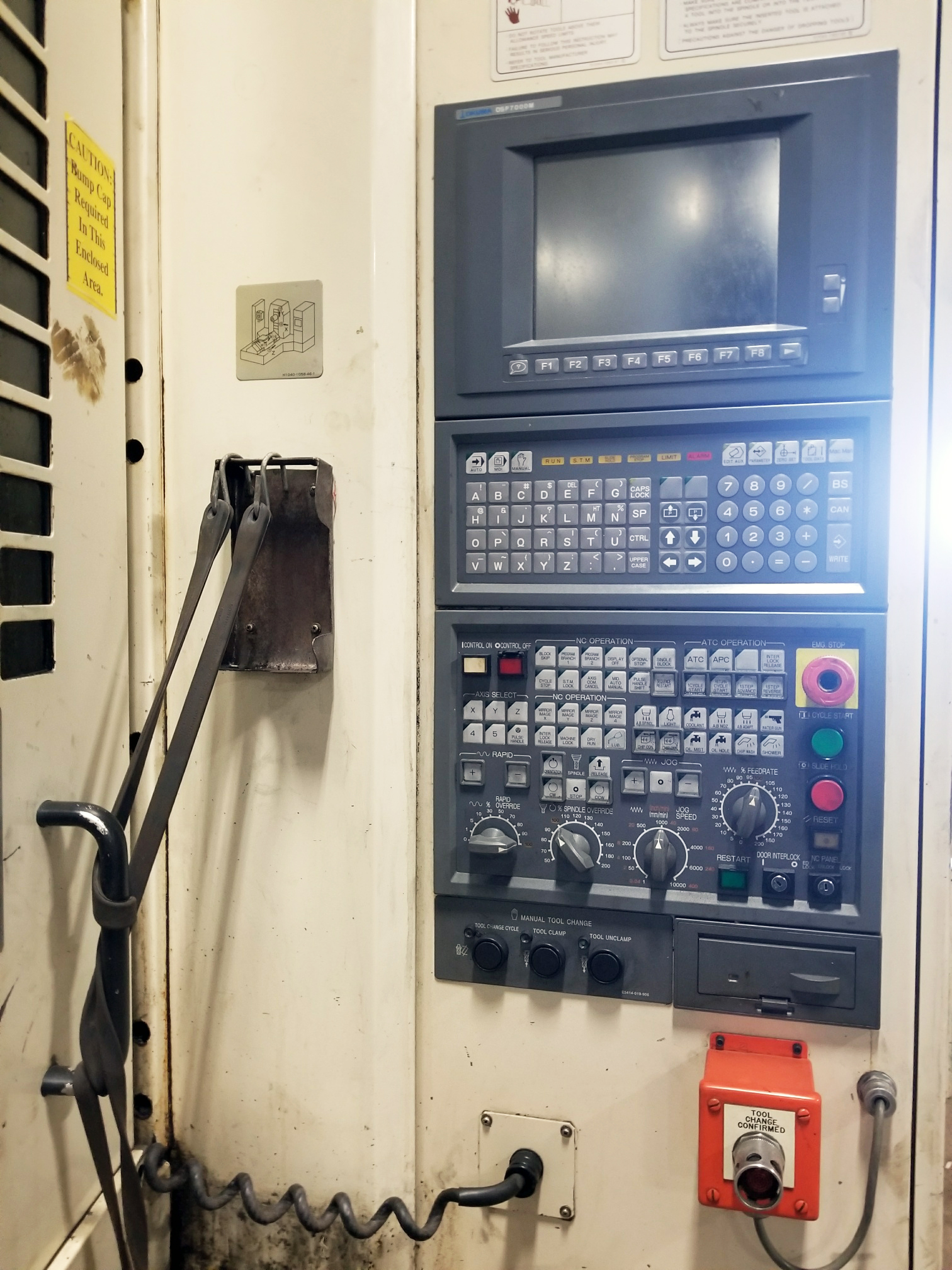

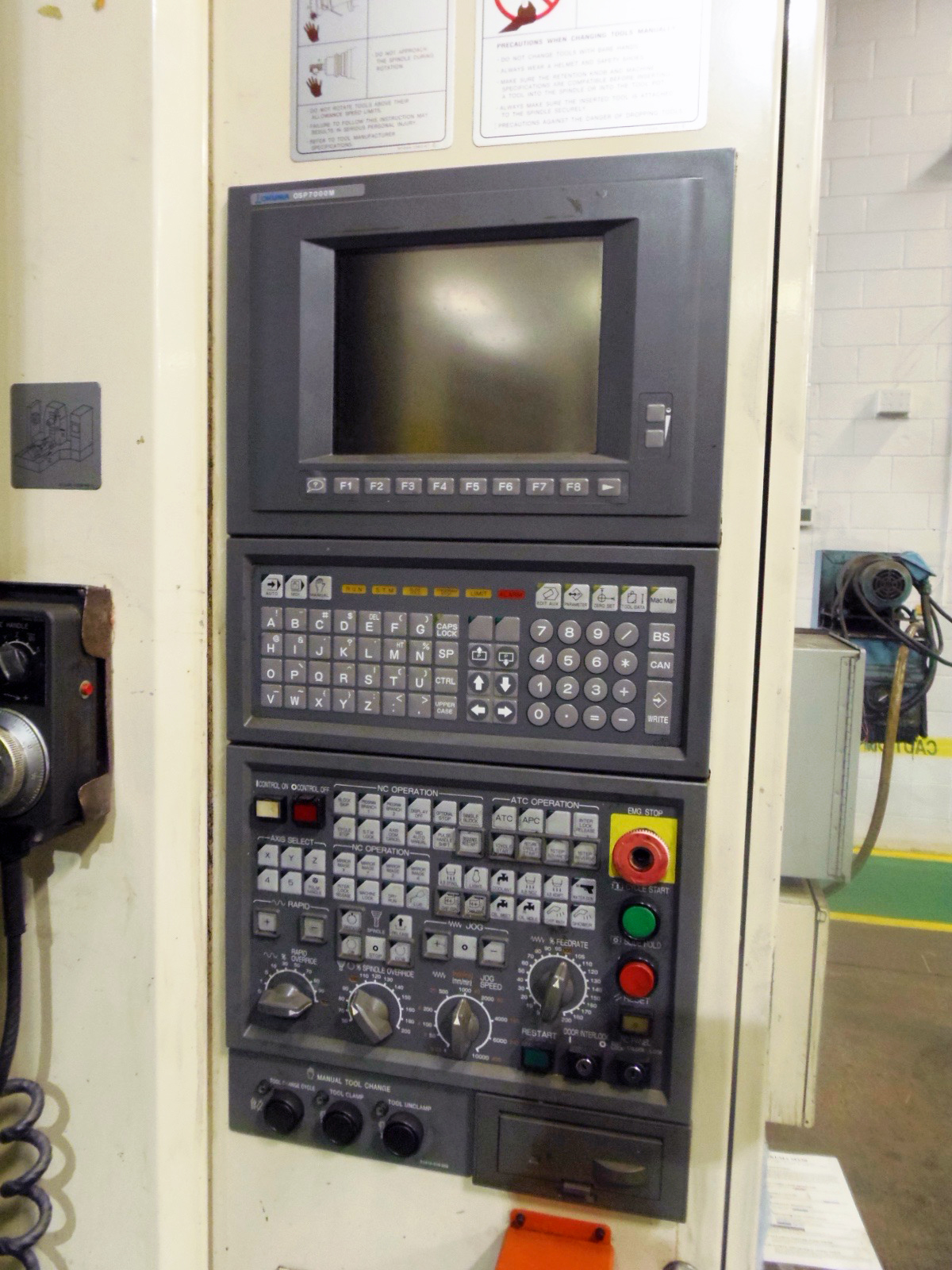

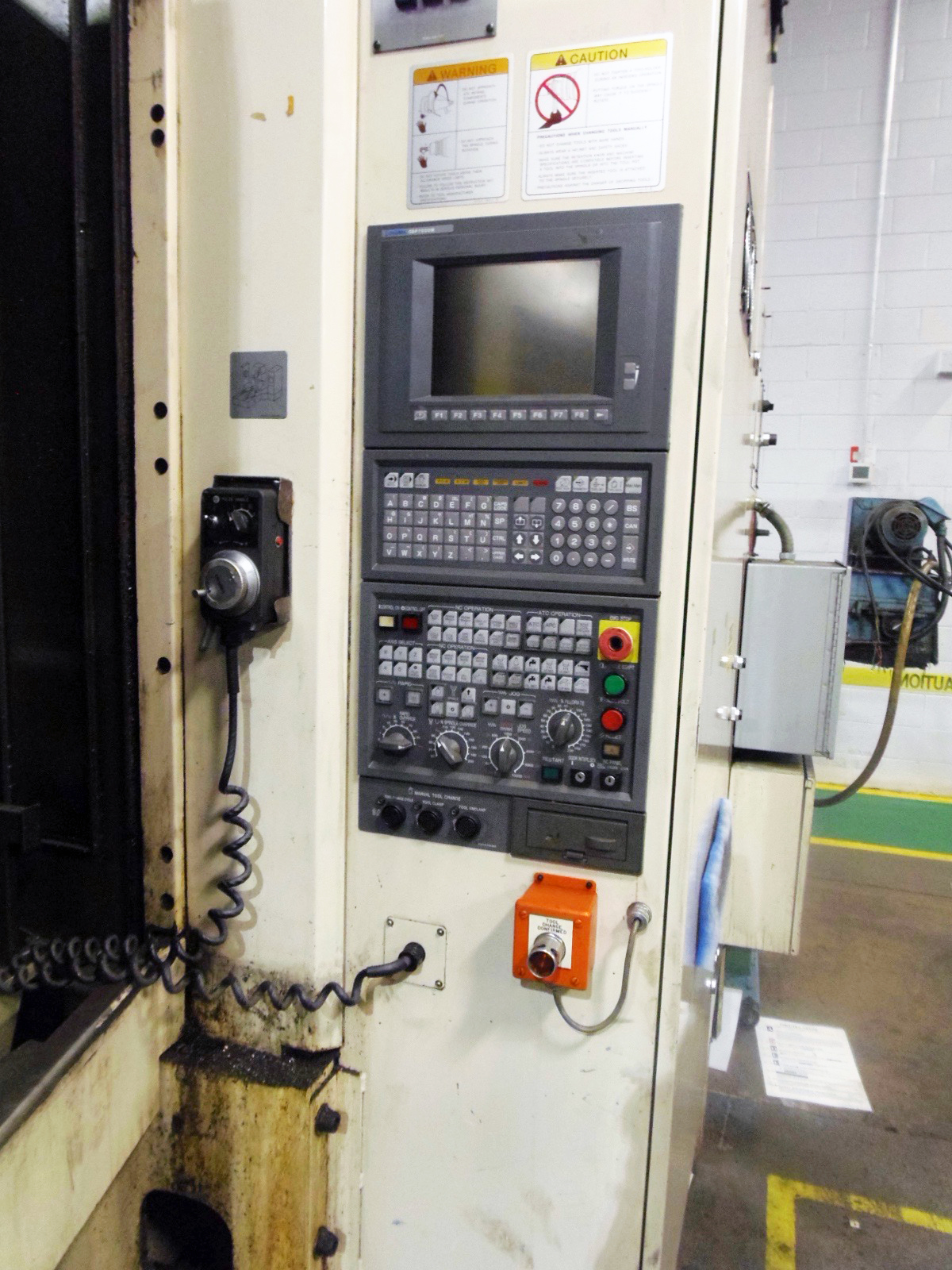

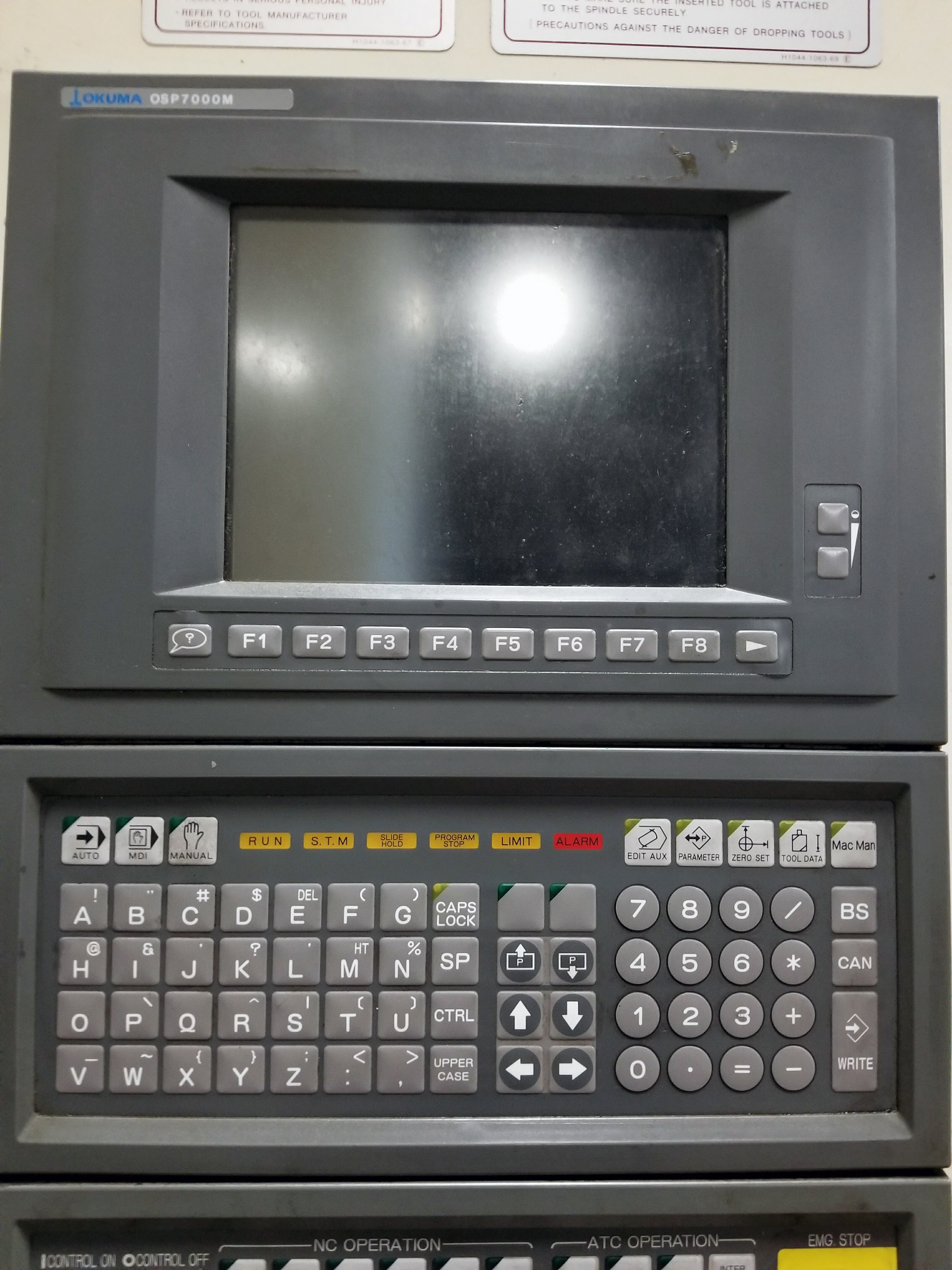

Control................................ Okuma OSP7000M
X-Axis Travel ......................... 27.50"
Y-Axis Travel ......................... 31.50"
Z-Axis Travel ......................... 27.5"

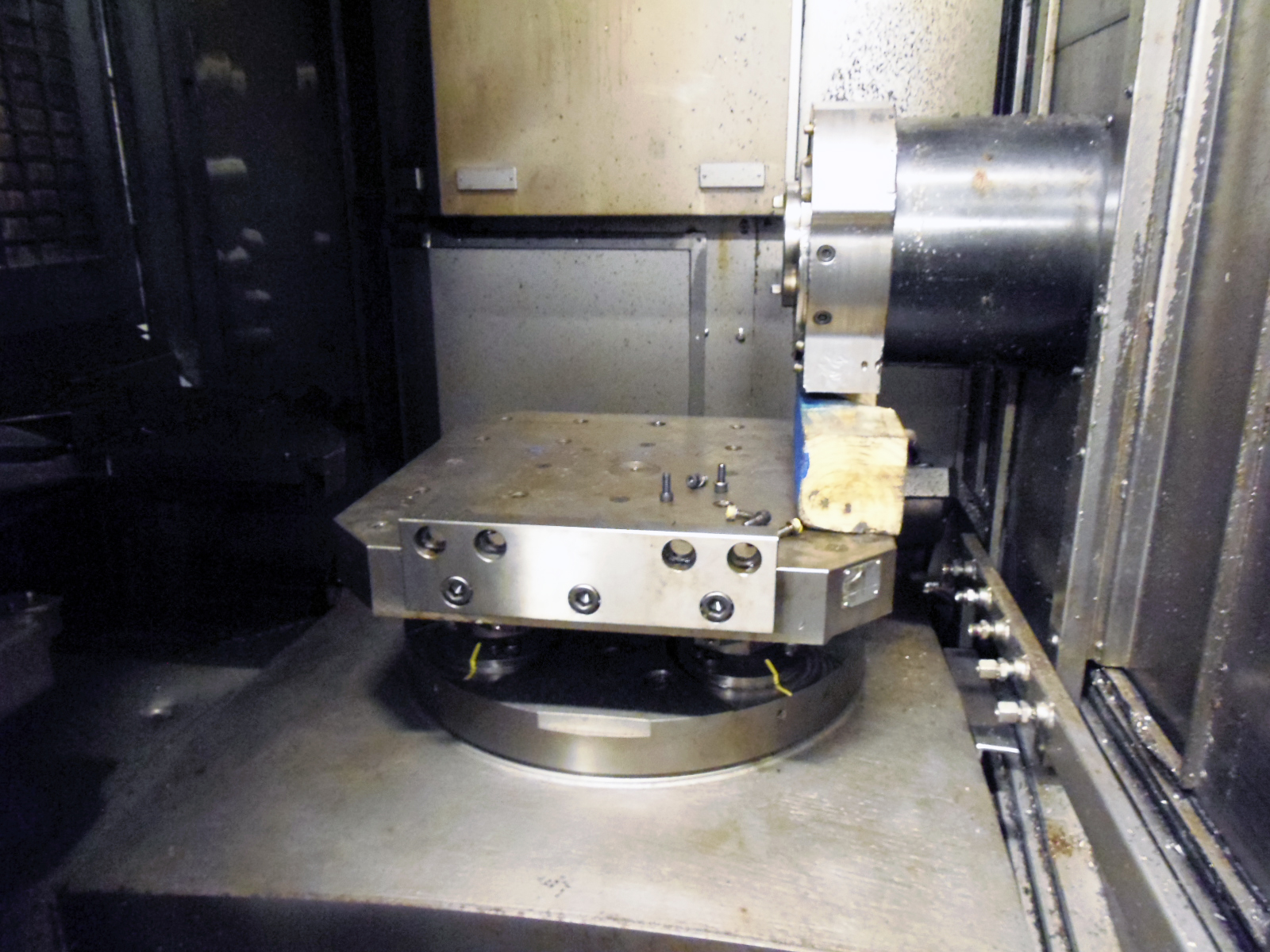

Number of Pallets ..................... 2
Pallet Size ........................... 19.6" x 19.6"
Pallet Indexing ....................... 1 Degree
Spindle Speed Range ................... 50-5,000 RPM
Spindle Taper ......................... CAT 50

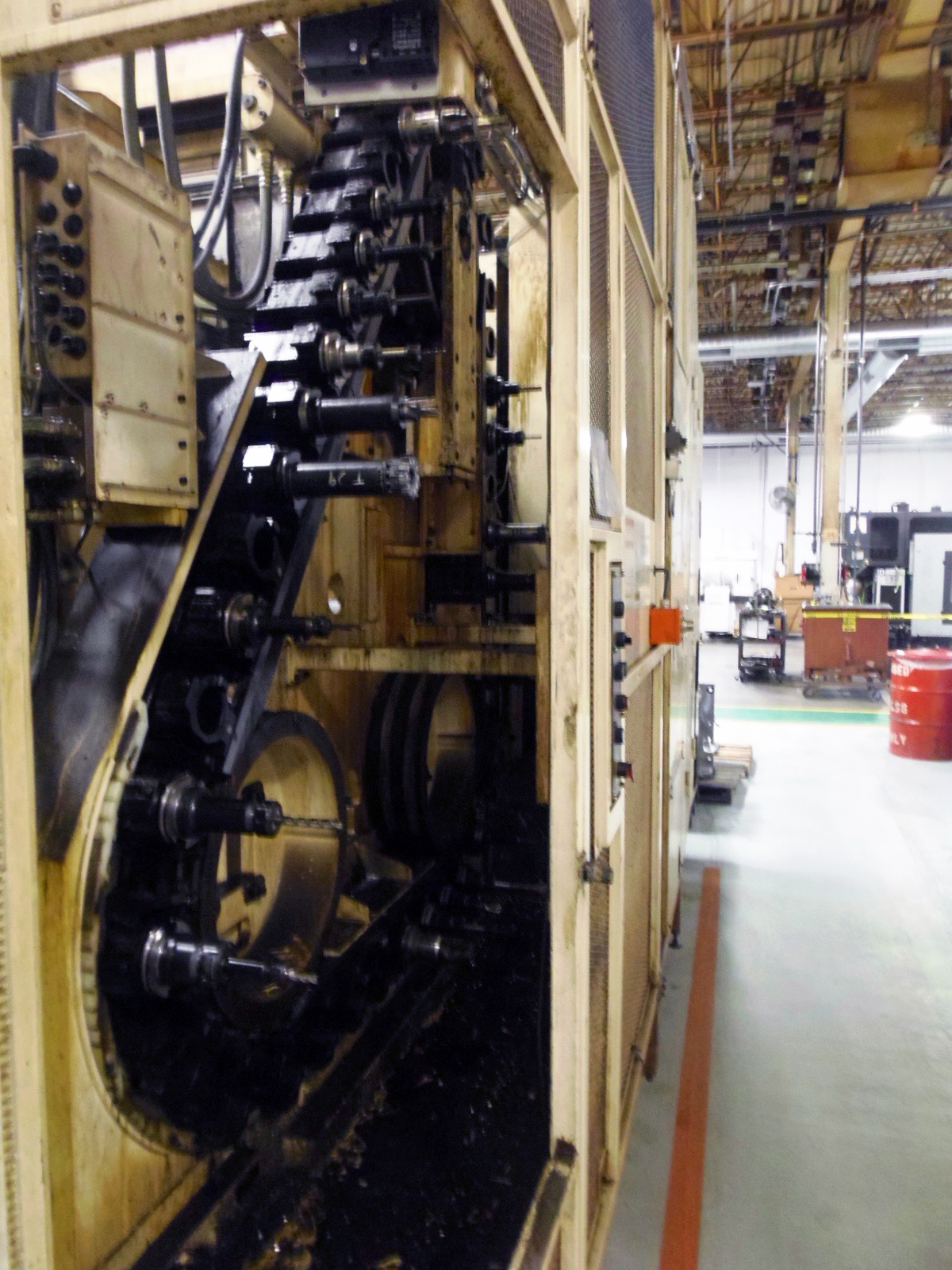

Tool Changer Positions................. 60 ATC
Spindle Drive Motor ................... 30 HP AC
Rapid Traverse (X,Y,Z) ................ 1,181 IPM
Feed Rate.............................. 0.04 - 787 ipm
Tool Change Time
Chip to Chip........................ 5 sec
Tool to Tool........................ 2 sec
Floor Space (L X W X H)................ 197" X 138" X 128"
Weight (Approx)........................ 33,500 lbs
Equipped with:
Piped for Thru spindle coolant, but does not have pump or pan. It was on a central system.
Tooling shown in tool changer is not with the machine.
Misc. Manuals
