Specifications
Equipped With
GENERAL SPECIFICATIONS:

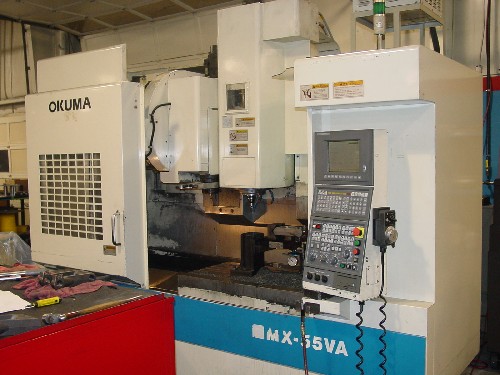

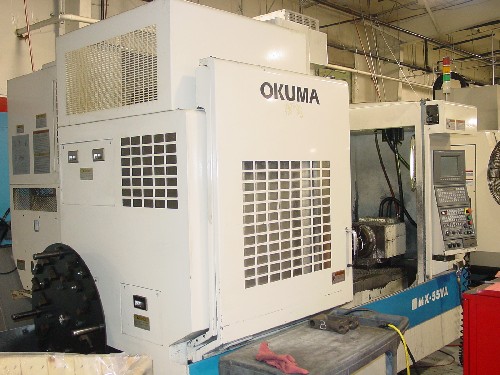

MODEL # MX-55VA
NEW APPROXIMATELY 1999
TABLE SIZE 51.18" x 22.05"
MAXIMUM TABLE LOAD 1,540 LBS
SPINDLE NOSE TO TABLE TOP 6.3" - 24.02"
X AXIS TRAVEL 41.3"
Y AXIS TRAVEL 22.05"
Z AXIS TRAVEL 17.72"
RAPID TRAVERSE RATE X AXIS 787 IPM
RAPID TRAVERSE RATE Y AXIS 787 IPM
RAPID TRAVERSE RATE Z AXIS 591 IPM
CUTTING FEED RATE 0.1 - 394 IPM
SPINDLE SPEEDS 70 - 7,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (2 SPEED GEARED) 15 HP AC
TOOL CHANGER CAPACITY 32 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 2.0 SECONDS
EQUIPPED WITH:
OKUMA OSP-700M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
TSUDAKOMA 10" FULL CONTOURING 4TH AXIS ROTARY TABLE
DNCB OFFLINE PROGRAMMING SYSTEM, ANIMATION GRAPHICS
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
REAR DISHCARGE STYLE LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
