Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 39.4" x 20.07"
MAXIMUM TABLE LOAD 1,500 LBS
SPINDLE NOSE TO TABLE TOP 6.29" - 24.01"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 18.1"
Z AXIS TRAVEL 17.7"
RAPID TRAVERSE RATE X AXIS 1181 IPM
RAPID TRAVERSE RATE Y AXIS 1181 IPM
RAPID TRAVERSE RATE Z AXIS 1181 IPM
CUTTING FEED RATE 0.1 - 945 IPM
SPINDLE SPEEDS 70 - 7,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (2 SPEED GEARED) 15 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.5 SECONDS
EQUIPPED WITH:

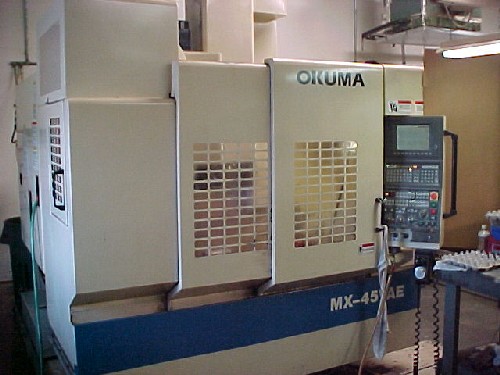

OKUMA OSP-700M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
DNCB OFFLINE PROGRAMMING SYSTEM
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
STANDARD COOLANT SYSTEM WITH TANK & PUMP

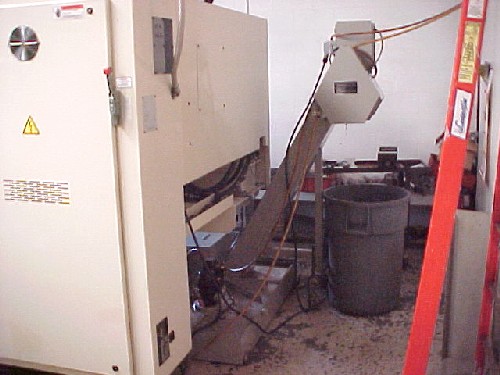

REAR DISHCARGE STYLE LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
