Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER........................ OKUMA
MODEL............................... MX45VAE
SERIAL.............................. #9010
NEW (APPROX.)....................... 1997
TABLE SIZE.......................... 18" x 30"
TABLE SURFACE TO FLOOR.............. 29"
X TRAVEL............................ 30"
Y TRAVEL............................ 18.11"
Z TRAVEL............................ 17.72"
SPINDLE END TO TABLE................ 6.3" - 24.02"
SPINDLE MOTOR (CONTINUOUS).......... 10/7.5 HP
SPINDLE SPEED (VARIABLE)............ 50 - 7000 RPM
SPINDLE TAPER....................... CAT 40
X & Y AXIS RAPID.................... 1181 IPM
Z AXIS RAPID........................ 944 IPM
TOOL CHANGER........................ 20
WEIGHT (APPROX.).................... 5,500 LBS.
DIMENSIONS (APPROX.)................ 87" x 75" x 105"H
EQUIPPED WITH:

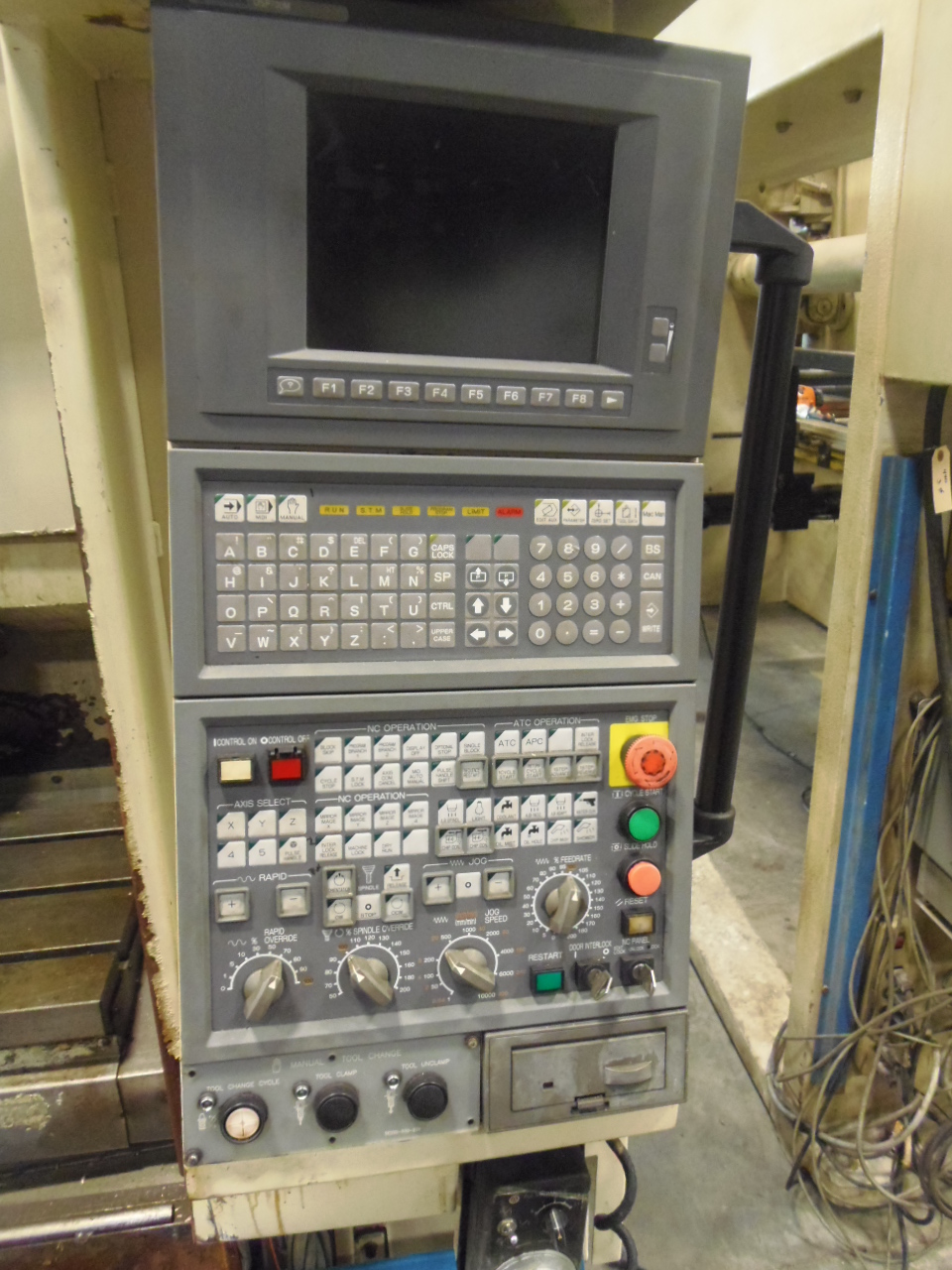

OSP 700M CONTROL
COOLANT SYSTEM
CHIP CONVEYOR
