| CNC Control | yes |
| Type of CNC Control | OKUMA OSP-7000M CNC CONTROL |
| # Axis | 3 |
| Table Size | 60.24" X 24.8" |
| Table Capacity | 3300 pounds |
| X-Axis Travel | 59.05 inches |
| Y-Axis Travel | 24.80 inches |
| Z-Axis Travel | 24.02 inches |
| Spindle Speed | 30-5000 RPM |
| Spindle Taper | CAT 50 |
| Main Motor | 30 HP / 20 HP |
| Coolant Thru Spindle | yes |
| Dimensions | 156" W X 180" D |
| Torque, Up To | 810 FT./LBS |
FEATURES:

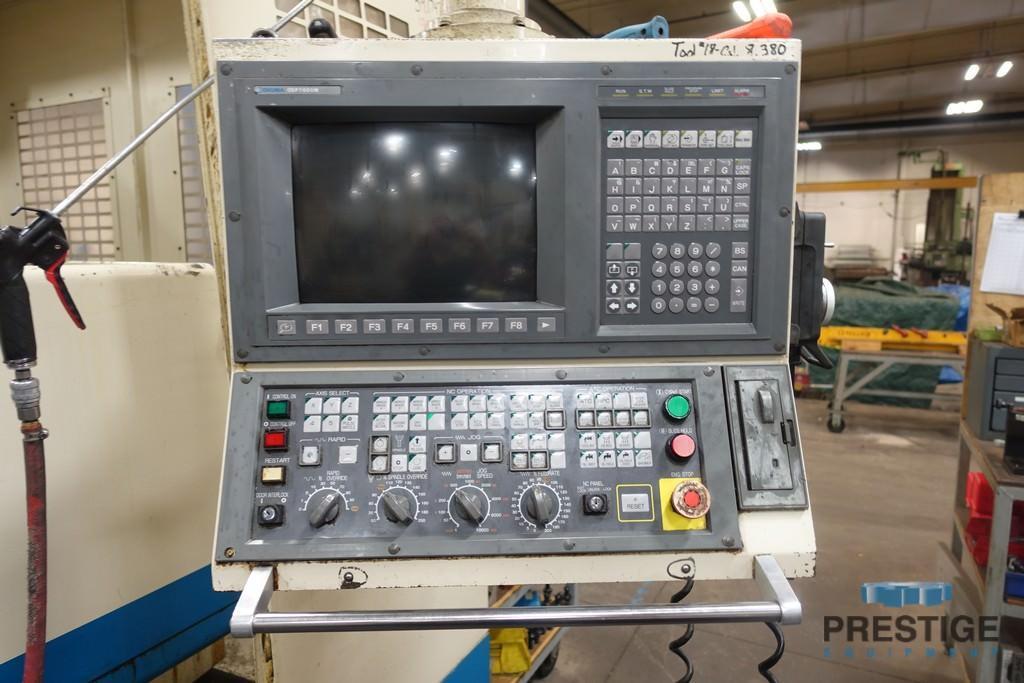

OKUMA OSP-7000M CNC CONTROL
20 ATC
COOLANT THROUGH SPINDLE
CHIP CONVEYOR
SPECIFICATIONS:
X-AXIS TRAVEL 59.05"
Y-AXIS TRAVEL 24.80"
Z-AXIS TRAVEL 24.02"
TABLE SURFACE TO SPINDLE END 9.06"-33"
TABLE SIZE 60.24" X 24.8"
WORK WEIGHT CAPACITY 3300 LBS.
SPINDLE SPEEDS 30-5000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 30 HP / 20 HP
SPINDLE TORQUE @ 150 RPM 810 FT./LBS
TOOL STORAGE 20 ATC
MAX. TOOL SIZE 5.5" X 15.75"
MAX. TOOL WEIGHT 44 LBS.
APPROXIMATE FLOOR SPACE 156" W X 180" D
EQUIPPED WITH:
OKUMA OSP-7000M CNC CONTROL
20-POSITION AUTOMATIC TOOL CHANGER
COOLANT THRU SPINDLE
CHIP CONVEYOR
SPLASH GUARD
LOCATION:
UNDER POWER IN MID-WEST MANUFACTURING PLANT
