Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER...............................OKUMA
MODEL......................................MC-4VA
AGE........................................1989
TRAVELS
X..........................................25.59
Y..........................................16.14
Z..........................................17.72
TABLE SIZE.................................20.8 X 39.37
LOAD CAPACITY..............................1,100 LBS

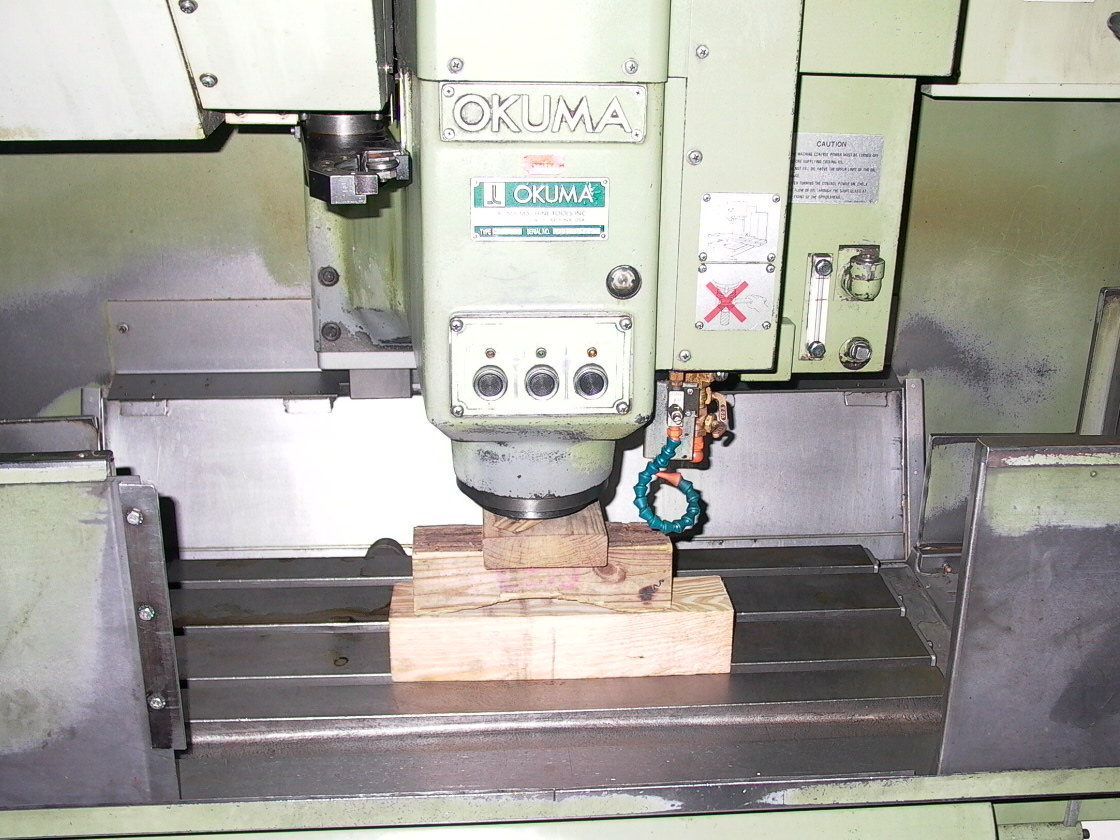

SPINDLE TAPER..............................CAT 40
SPEED RANGE INF VARIABLE...................50 - 4000 RPM
RAPID TRAVERSE RATE (X & Y)................591 IPM
Z..........................................512 IPM

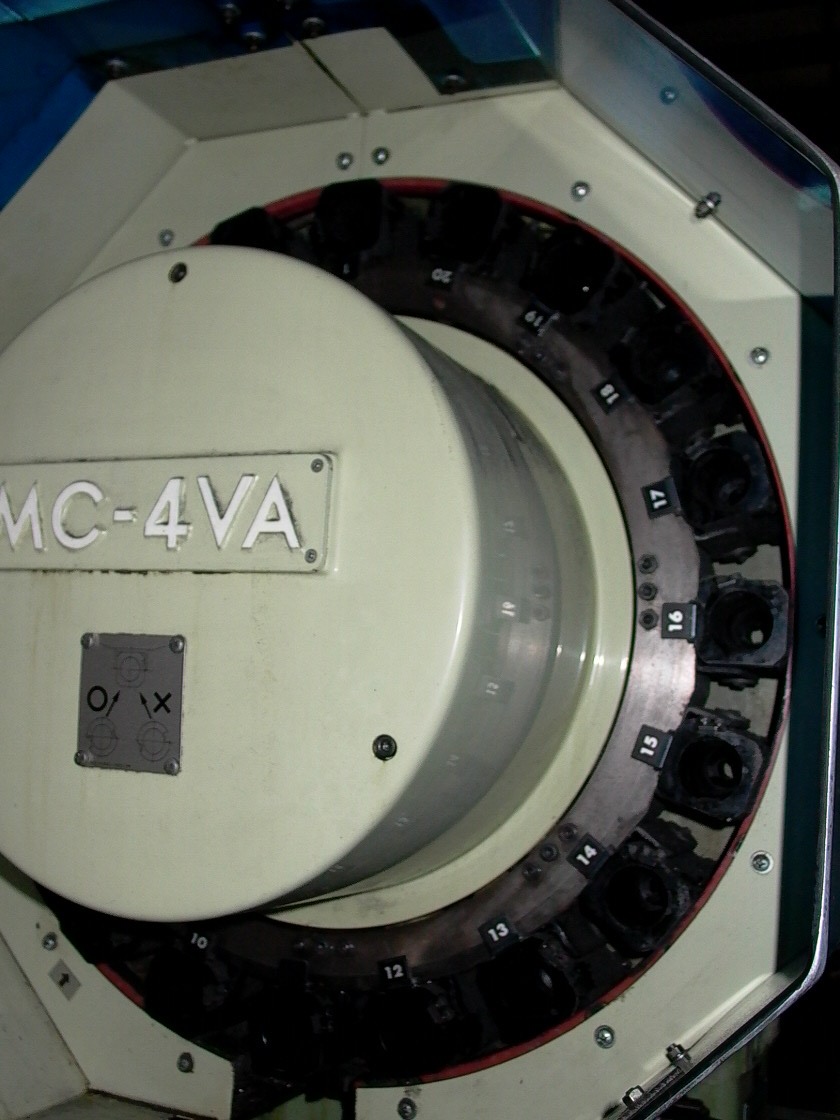

TOOL MAGAZINE CAPACITY.....................20 TOOLS
SHIPPING DIMENSIONS........................105" X 95" x 108" H
COOLANT TANK...............................36" X 48" X 36" H
WEIGHT (APPROX.)...........................13,000 LBS.
ELECTRICS..................................220/440 DUAL VOLTAGE

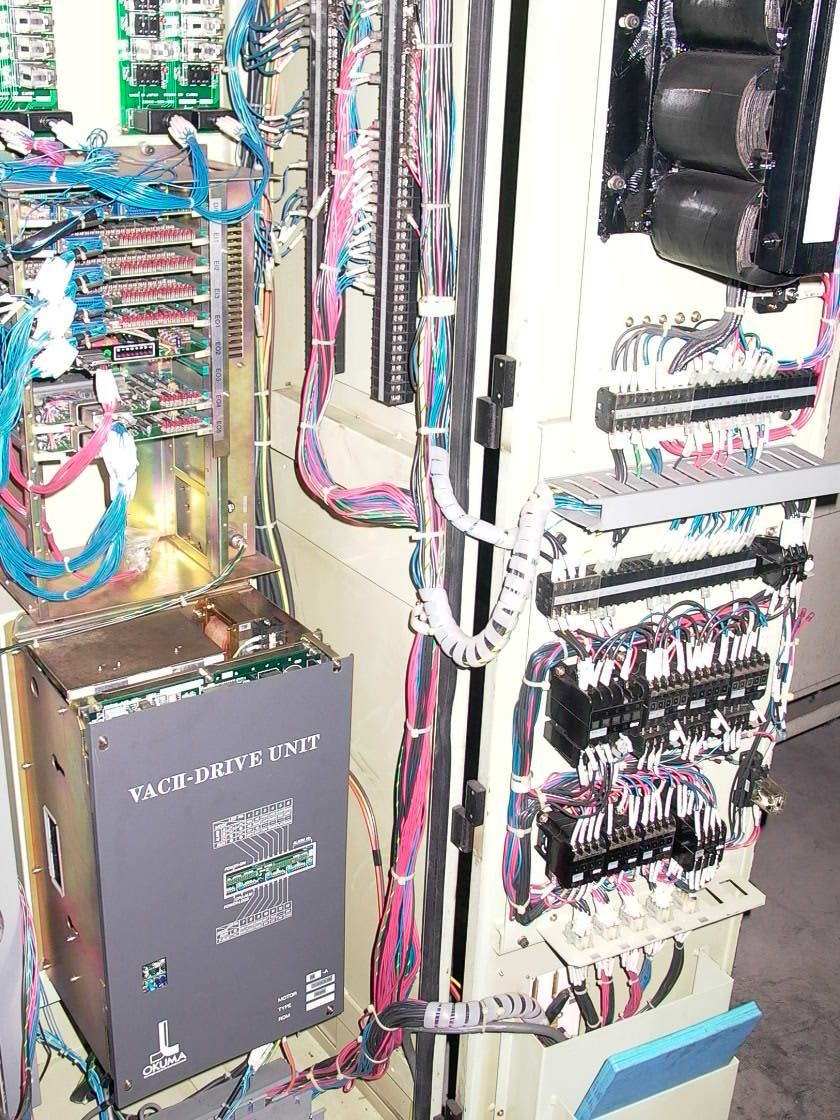

MAIN MOTOR: kW (hp)........................VAC 5.5/3.7 (7.5/5) (30 min/cont.)
HYDRAULIC MOTOR: kW(hp).................... 2.2 (3)
X,Y,Z MOTOR: kW (hp)....................... 1.2 AC (1.6)
EQUIPPED WITH:

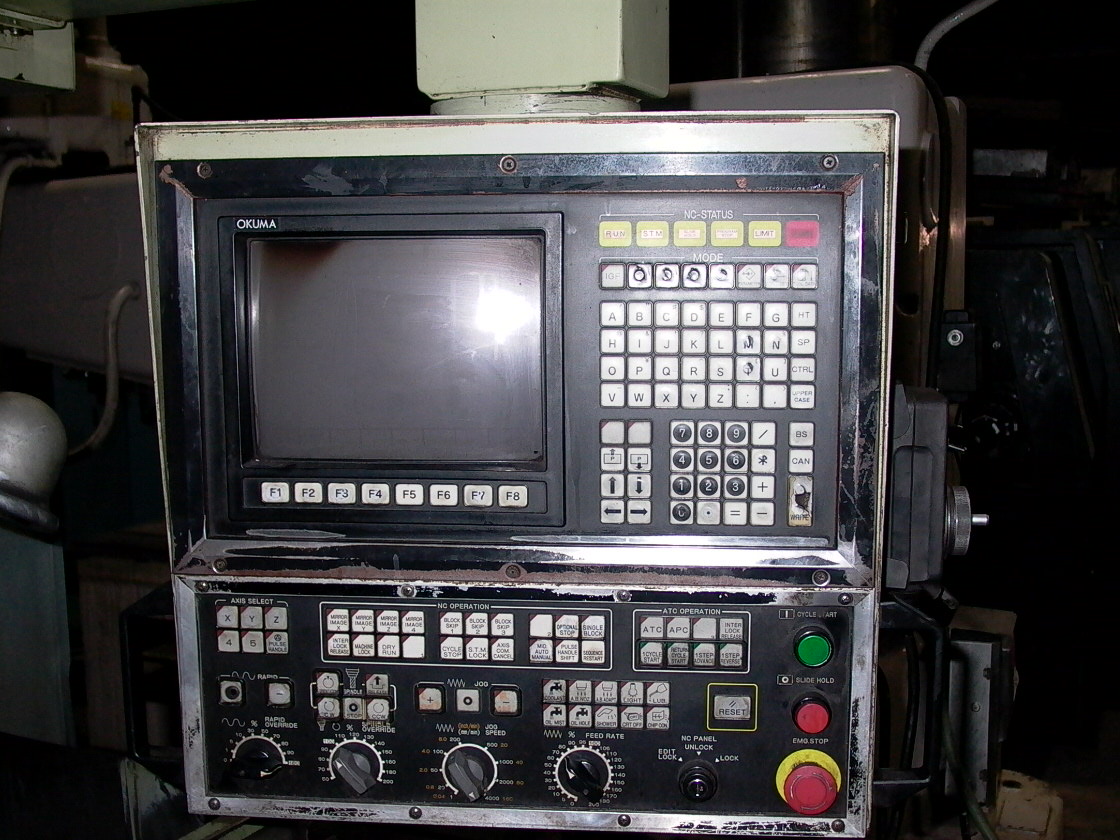

OKUMA OSP-5020 CONTROL WITH COLOR DISPLAY, SYNCRO. TAPPING, FLOPPY READ/WRITE, WORK COORDINATE SYSTEM, AND SUB PROGRAMS

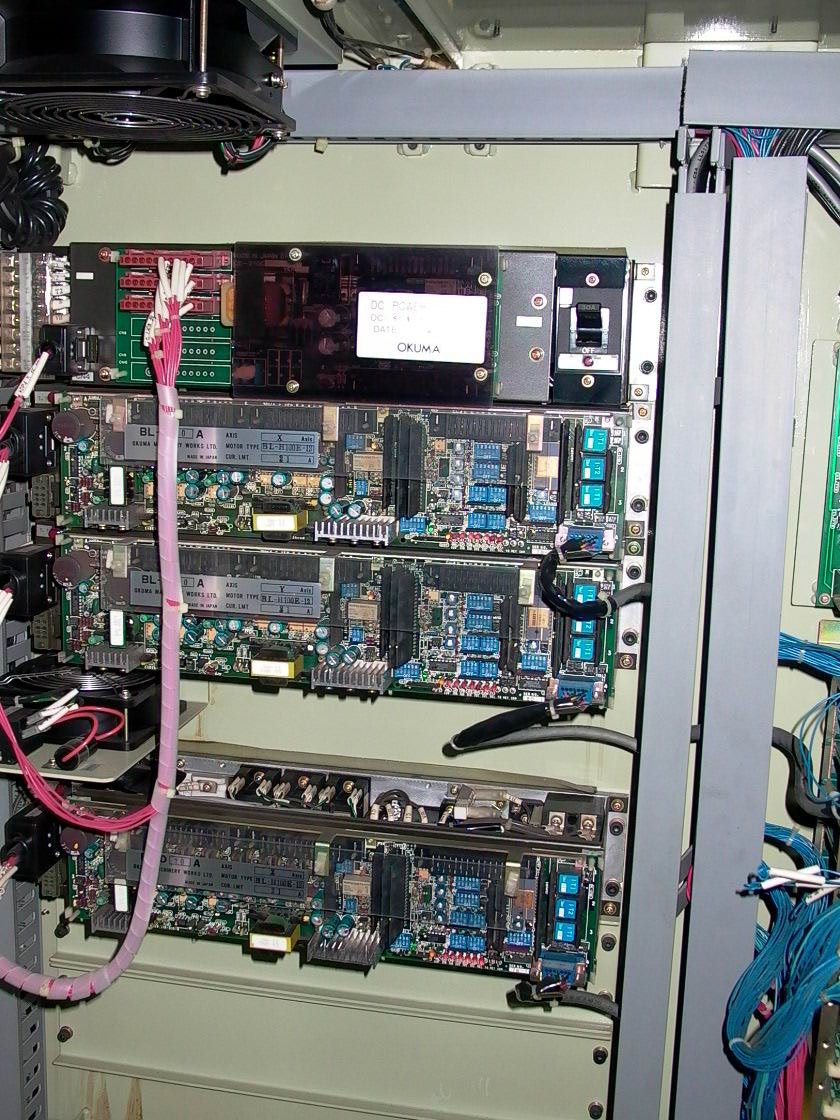

BRUSHLESS SERVO MOTORS
BOX WAYS
RS 232 PORT
MANUALS
MISC RETENTION KNOBS
