GENERAL SPECIFICAITONS:

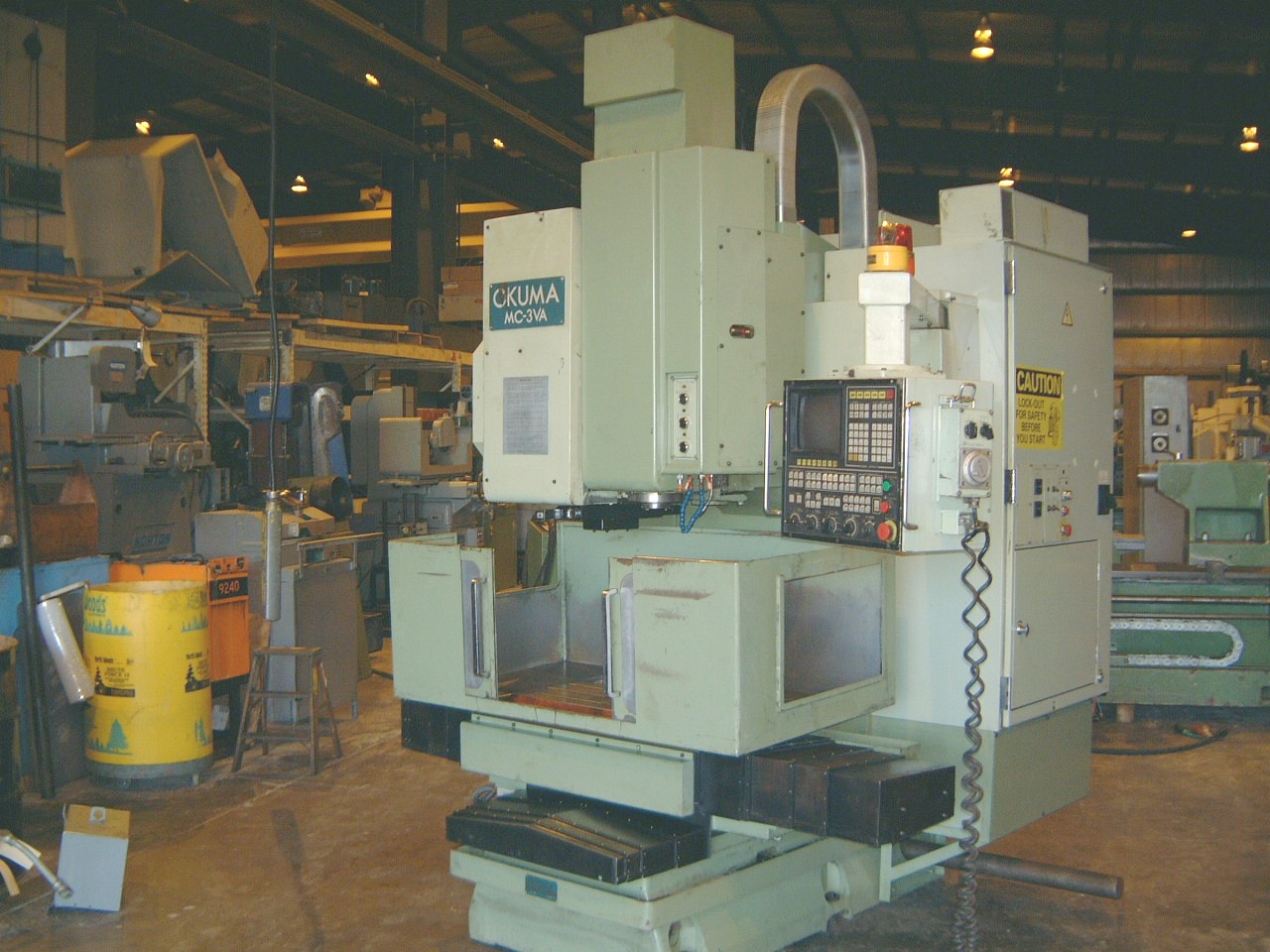

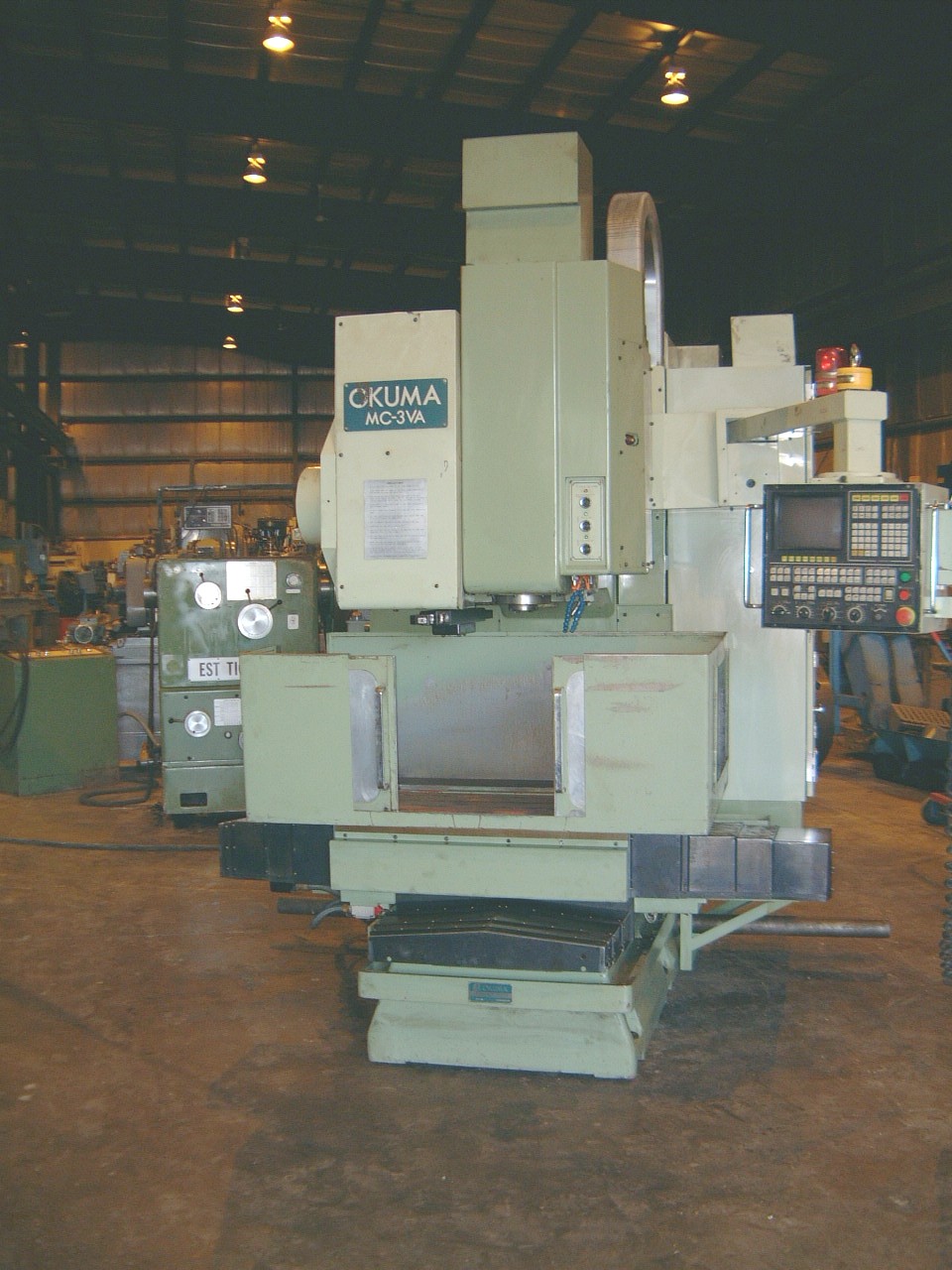

MANUFACTURER OKUMA
MODEL MC-3VA
SERIAL # 0043
NEW (APPROX.) 1986
TABLE WORKING SURFACE 39.92" x 12.99"
X TRAVEL (LONGITUDINAL) 20.08"
Y TRAVEL (CROSS) 12.99"
Z TRAVEL (VERTICAL HEAD) 15.75"
SPINDLE TO TABLE MAXIMUM 23.62"
SPINDLE TO TABLE MINIMUM 7.87"
THROAT DEPTH 22.83"
SPINDLE SPEEDS (VARIABLE) 30 - 6000 RPM
SPINDLE NOSE NT 40
FEED RATE .01 - 1600 IPM
X - Y RAPID 629 IPM
Z RAPID 472 IPM

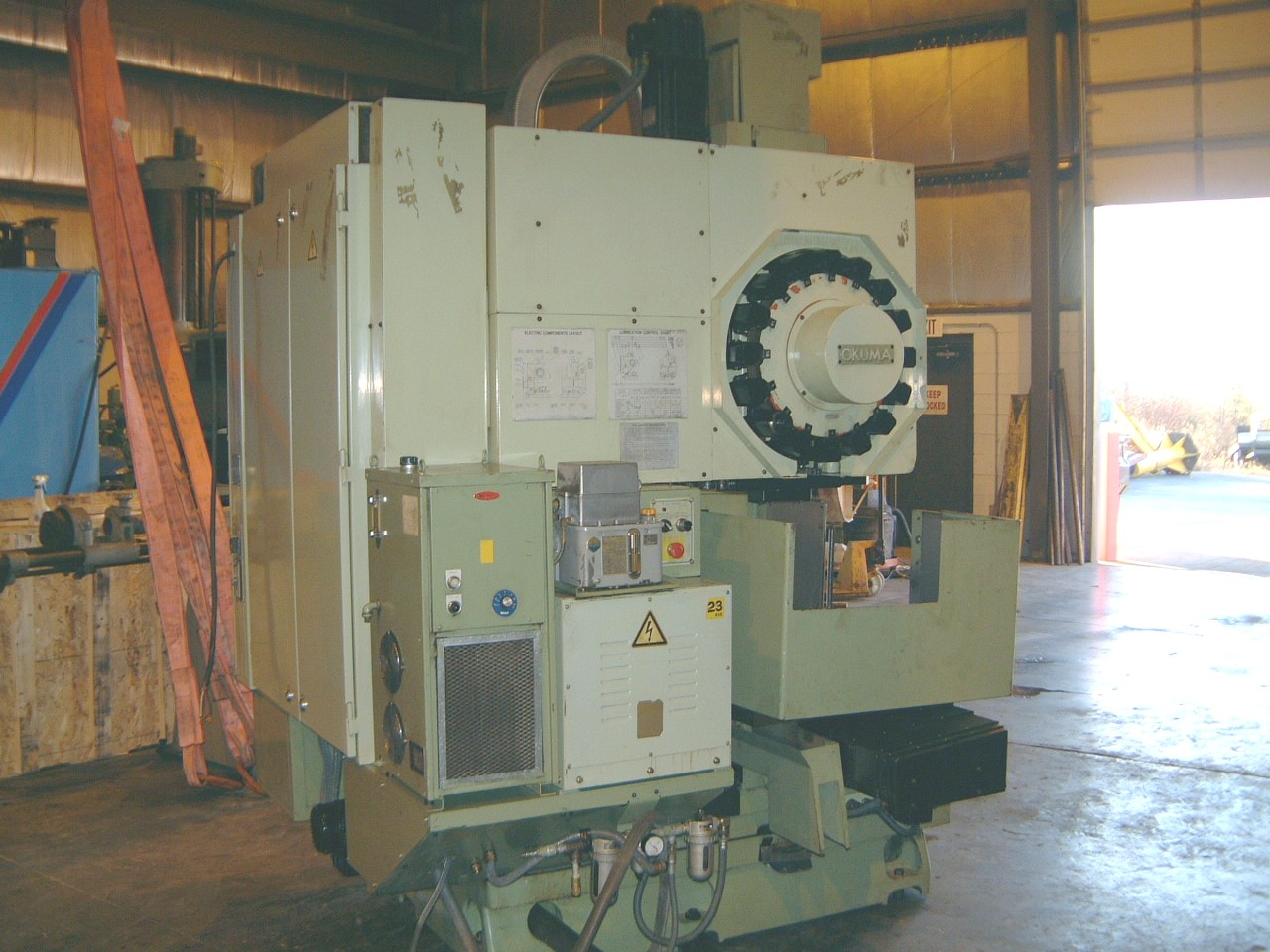

AUTOMATIC TOOL CHANGER CAPACITY 16 TOOLS
TOOL WEIGHT MAXIMUM 17.6 LBS.
TOOL SIZE MAXIMUM 3.54"
TOOL SELECTION RANDOM
SPINDLE MOTOR (30 MIN.) 7.5 HP
SPINDLE MOTOR (CONTINUOUS) 5.5 HP
DIMENSIONS (APPROX.) 75"LR x 97"FB x 109"H
WEIGHT (APPROX.) 9,460 LBS.
EQUIPPED WITH:

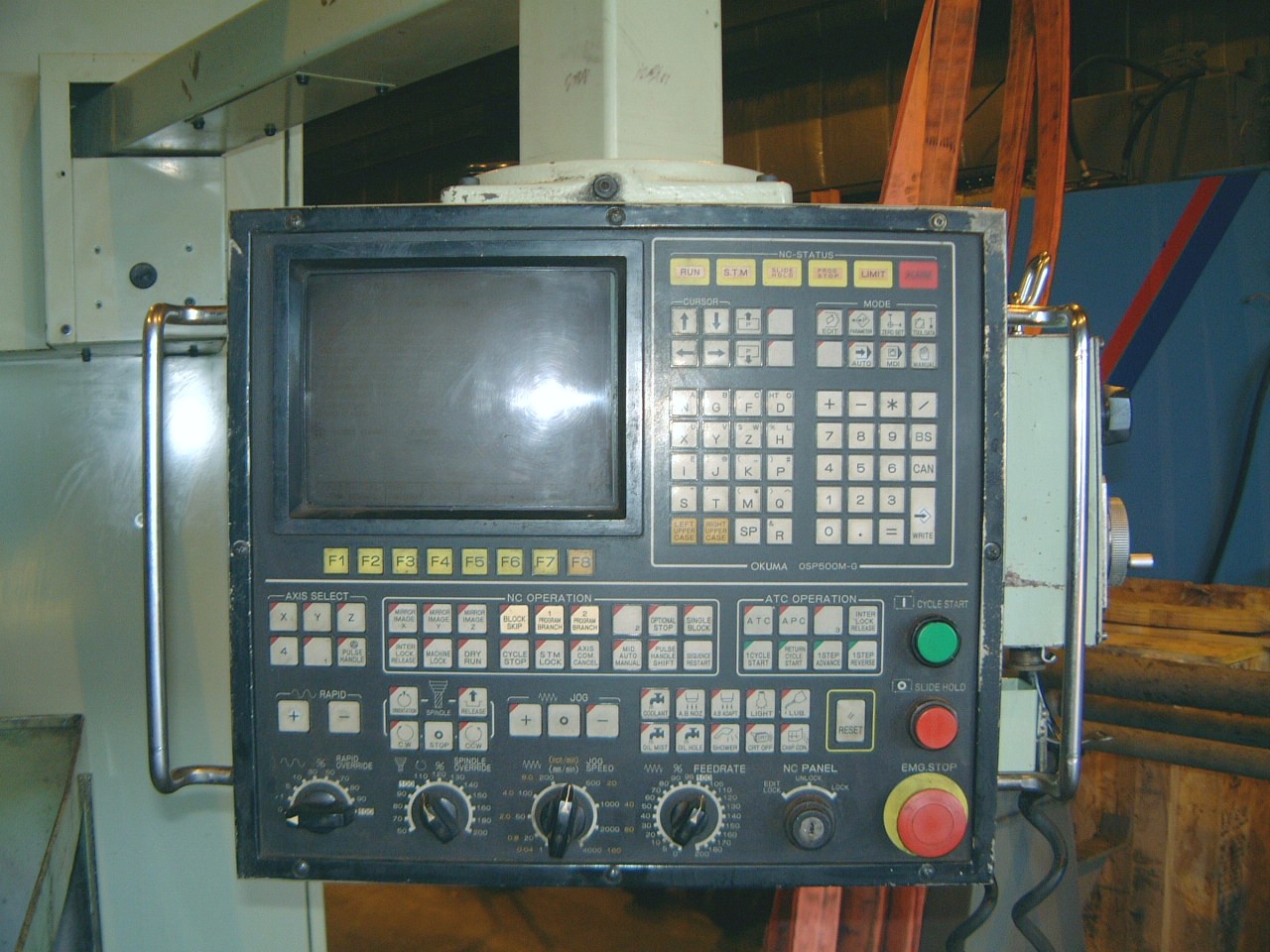

OKUMA 5000 CONTROL WITH CRT
RS232 INTERFACE
COOLANT SYSTEM
