Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER..................... OKUMA
MODEL............................ LU300 V8CAM
SERIAL NUMBER.................... 111793
AGE.............................. 2004
SWING............................ 19.69"
MAX. TURNING DIAMETER............ 6.30"
MAX. WORK LENGTH................. 18.9"
MAX. WORK PIECE WEIGHT........... 265 LBS

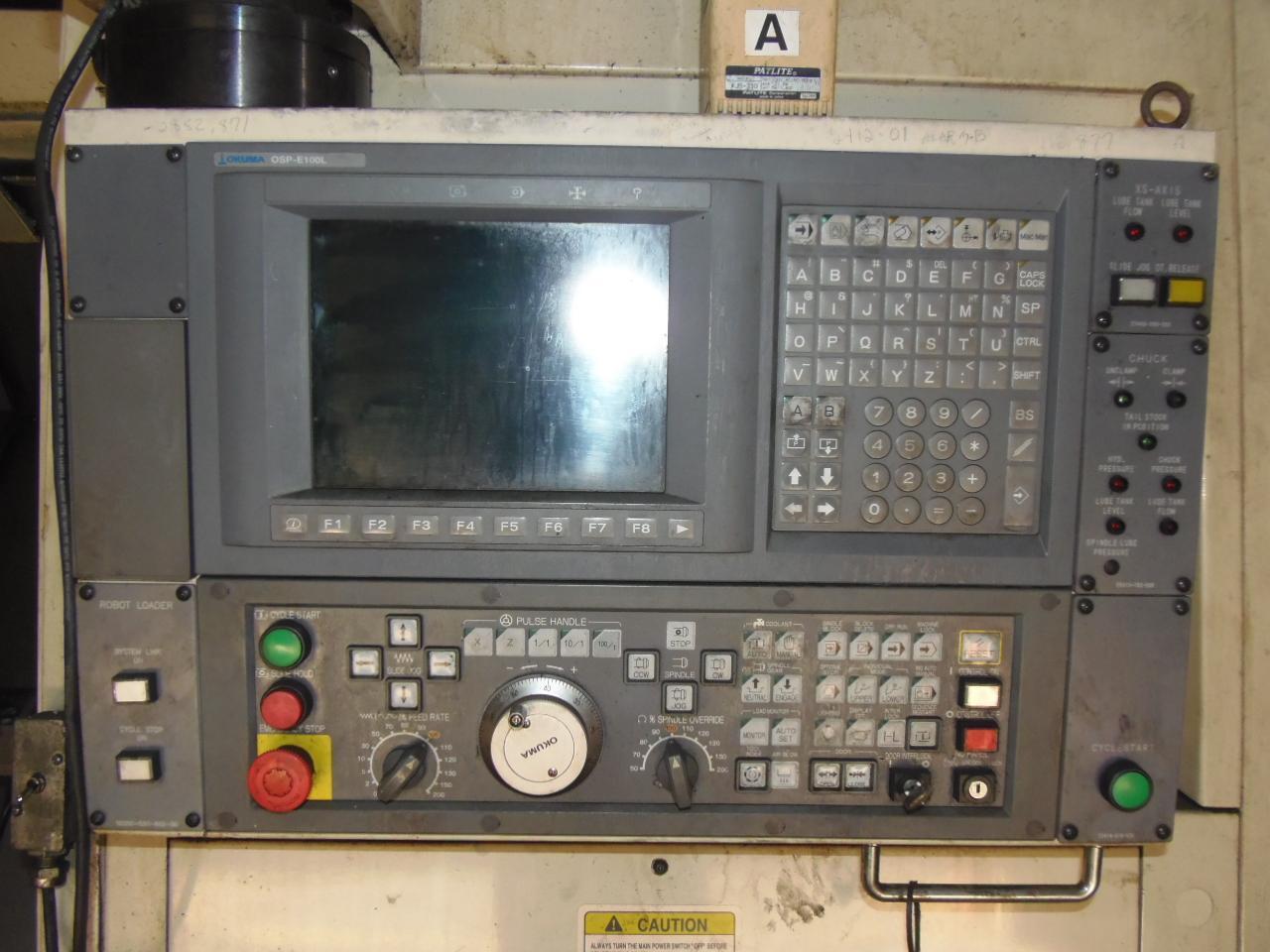

CONTROL.......................... OSP-E100L
SPINDLE SPEED.................... 50-6000 RPM
NOSE............................. A2-6
BORE DIAMETER.................... 2.44"
TURRETS.......................... UPPER AND LOWER
TRAVELS XA & XB.................. 3.94"
TRAVLES ZA & ZB.................. 19.69"
NUMBER OF UPPER TOOL POSITIONS... 6
NUMBER OF LOWER TOOL POSITIONS... 8
RAPID FEED RATE X................ 65.62 IPM
RAPID FEED RATE Y................ 13.39 IPM
SPINDLE DRIVE.................... 15/10 HP
MACHINE WEIGHT................... 27,280 LBS
FLOOR SPACE...................... 96" X 78"
EQUIPPED WITH:
CAM SOFTWARE
TOOL HOLDERS
MANUALS
