GENERAL SPECIFICATIONS:
MANUFACTURER............................ OKUMA

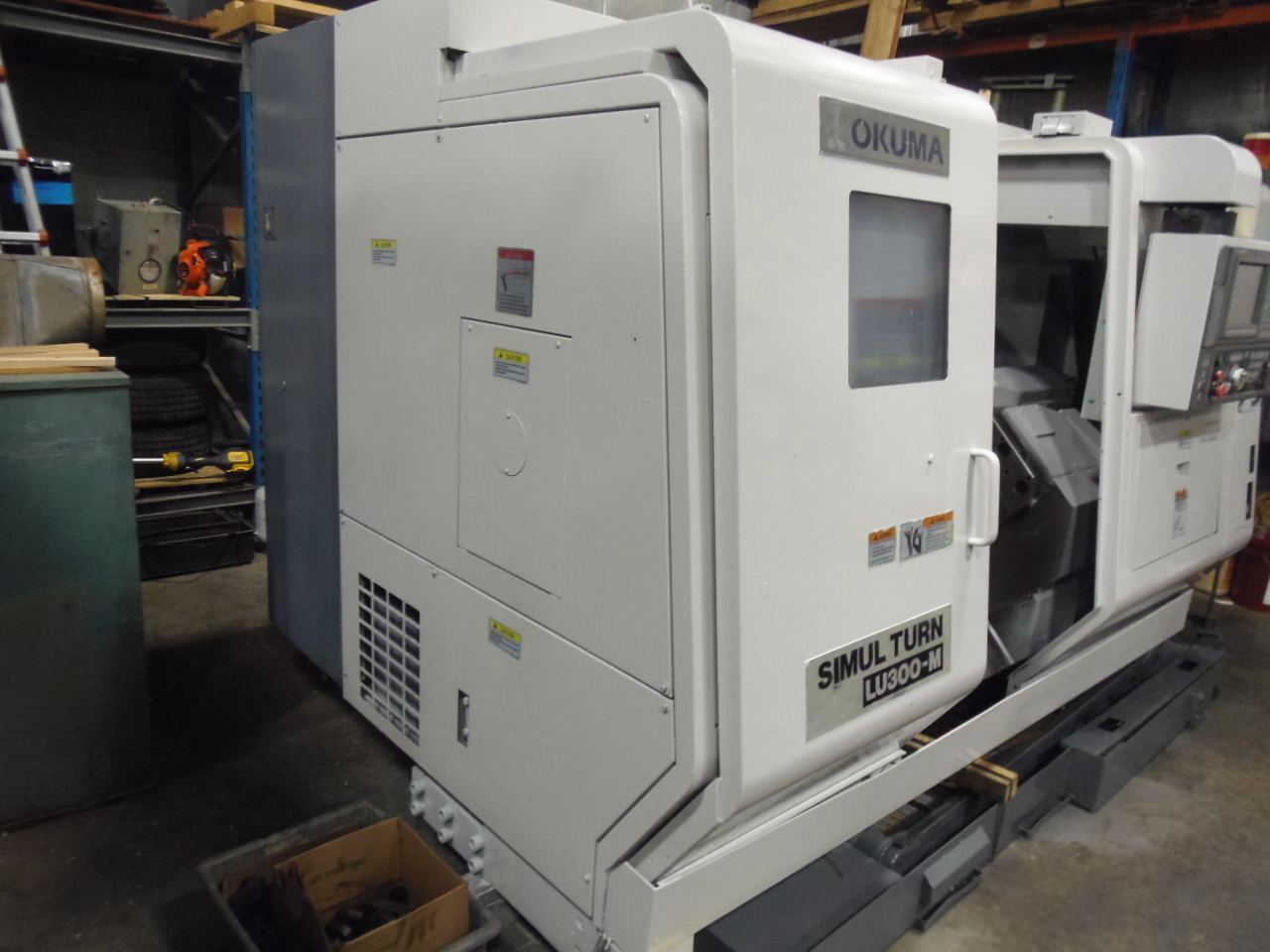

MODEL................................... LU-300-M SIMULTURN
AGE..................................... 2003

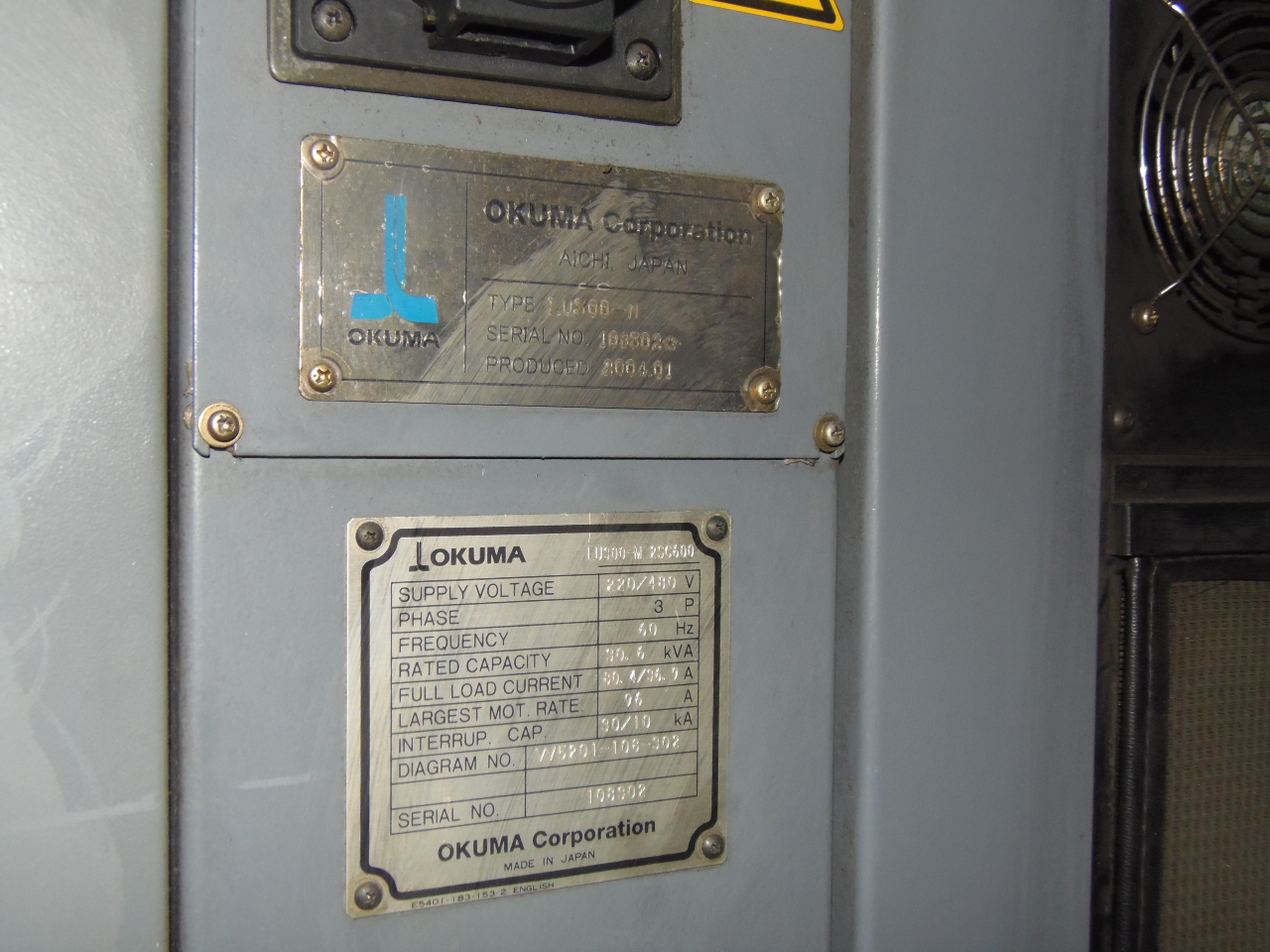

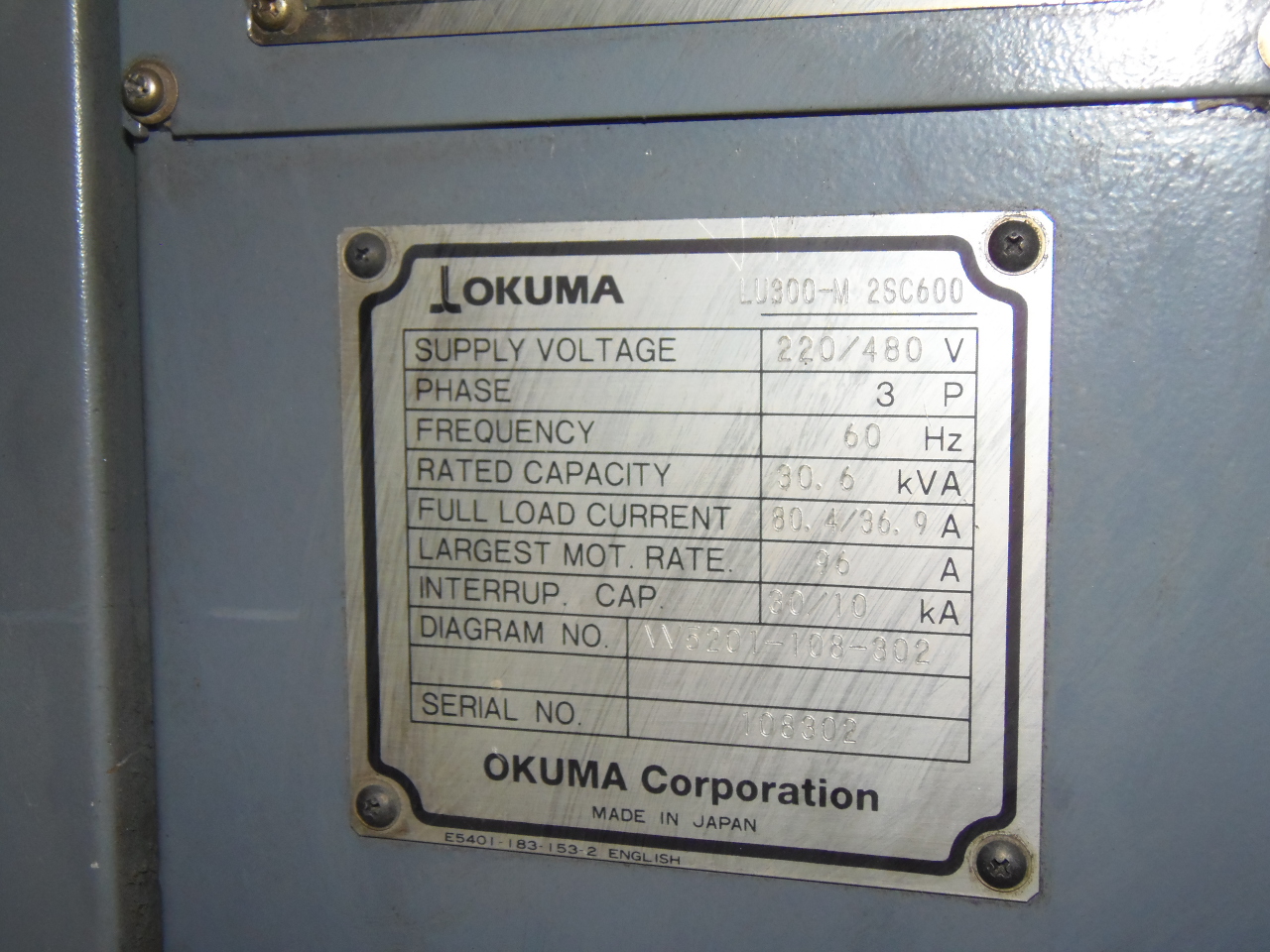

SERIAL NUMBER........................... 108302
SWING OVER BED.......................... 20.8"
SWING OVER SADDLE....................... 14.96"
MAX. TURNING DIAMETER (UPPER/LOWER)..... 13.38"/7.08"
X AXIS TRAVEL (UPPER/LOWER)............. 10.23"/5.51"
Z AXIS TRAVEL (UPPER/LOWER)............. 25'2"/24.21"
C AXIS INCREMENTS....................... .001 DEGREE
RAPID TRAVERSE RATES X/Z AXIS........... 787/984 IPM
CHUCK SIZE.............................. 10"
SPINDLE NOSE............................ A2-6
SPINDLE BORE............................ 2.44"
BORE CAPACITY........................... 2.00"
SPINDLE SPEEDS.......................... 45-4,500 RPM
SPINDLE MOTOR........................... 30 HP

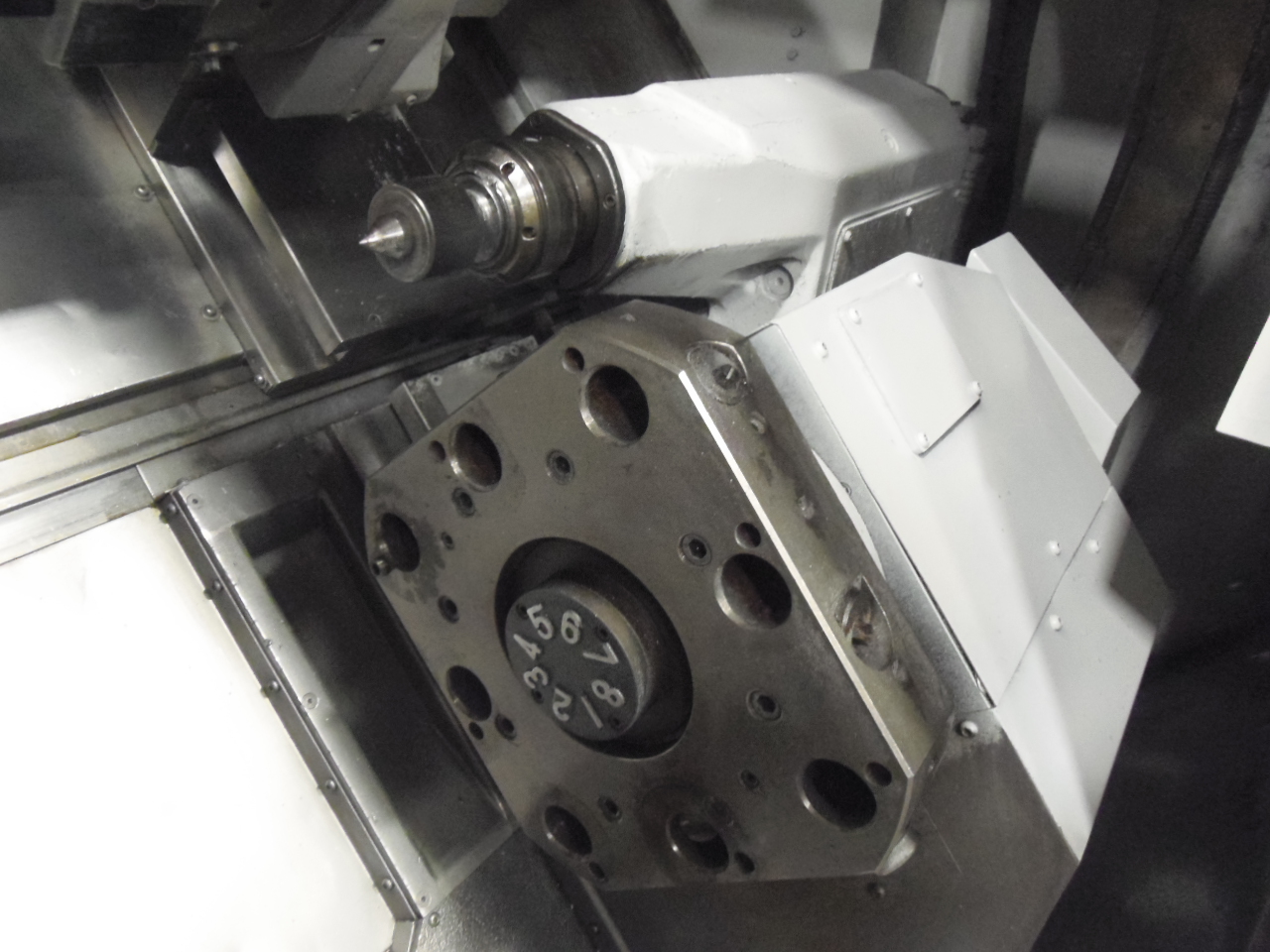

TURRET CAPACITY UPPER/LOWER............. 12/8 STATIONS
LIVE TOOLING MOTOR...................... 9.3 HP
LIVE TOOLING SPEEDS..................... 45 - 4,500 RPM
APPROX. DIMENSIONS...................... 119" X 84" X 81"
MACHINE WEIGHT (APPROX.)................ 15,000 LBS
EQUIPPED WITH:

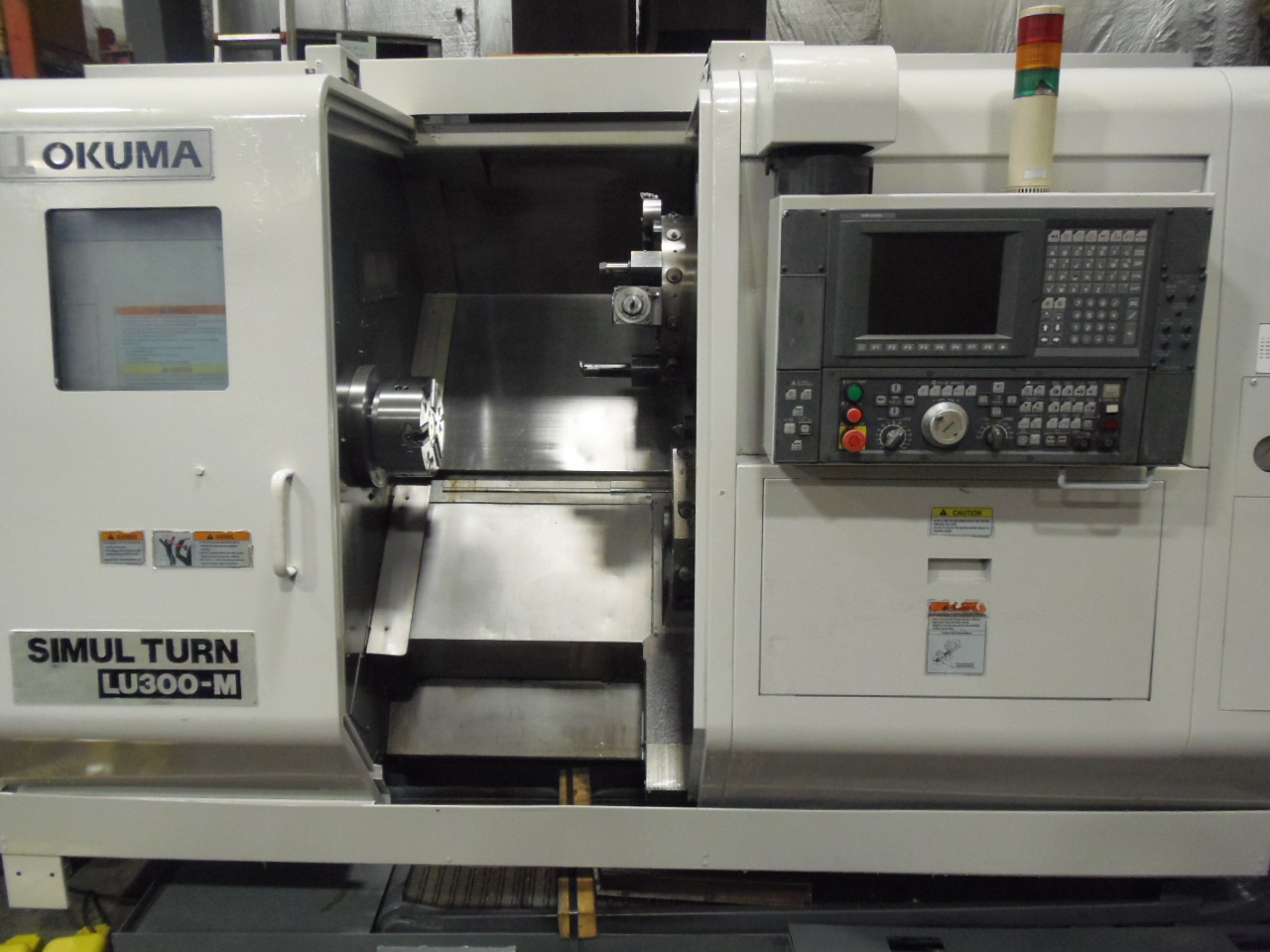

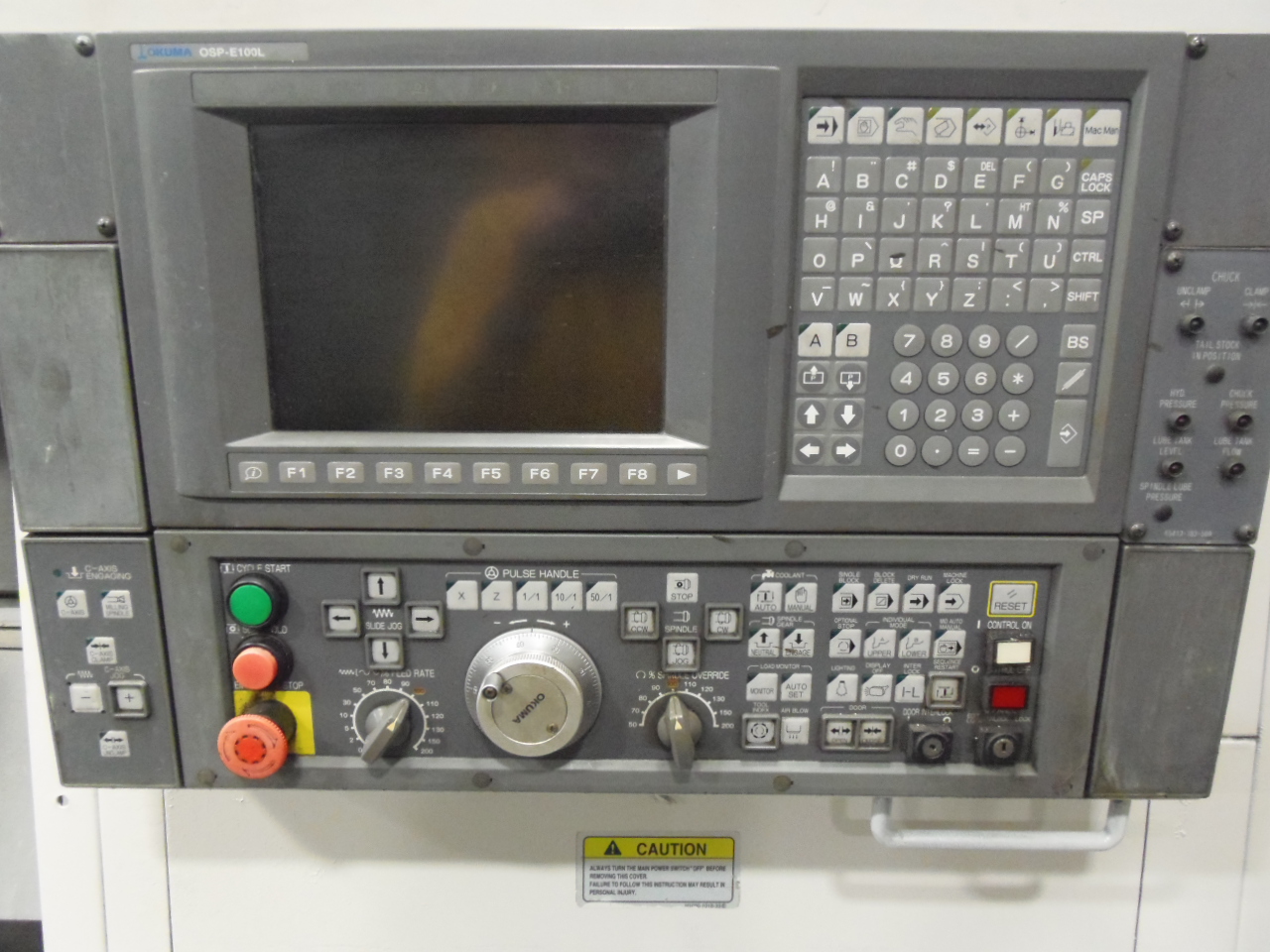

OSP-E100L CNC CONTROL WITH 14" LCD SCREEN WITH ANIMATION
FULL CONTOURING C AXIS FOR LIVE TOOL OPERATIONS

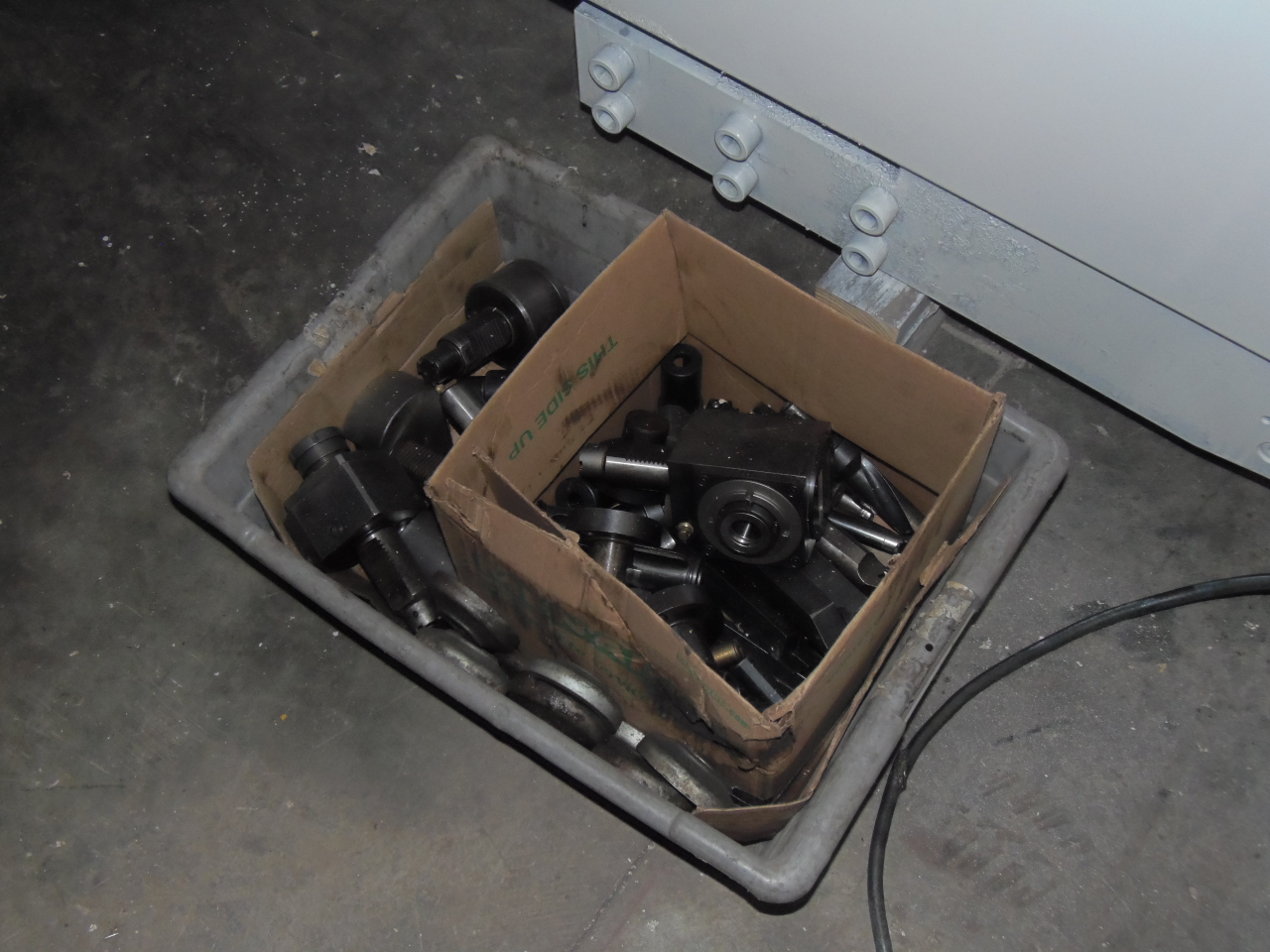

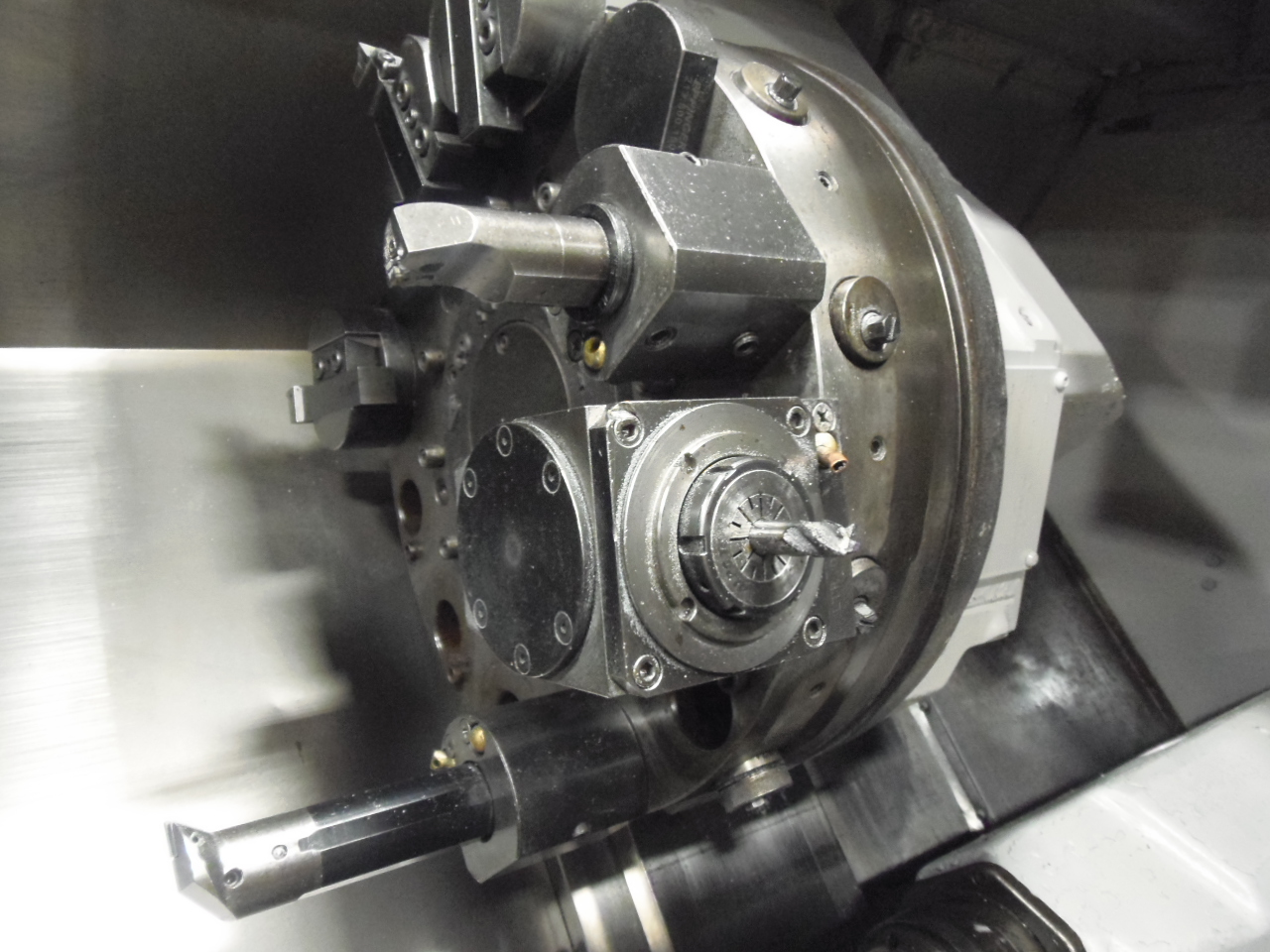

2 RIGHT ANGLE LIVE TOOLHODERS
2 STRAIGHT LIVE TOOLHOLDERS
2 ID TOOL HOLDERS
6 OD TOOL HOLDERS
MISC. OTHER TOOLING
RS-232C PORT INTERFACE FOR DNC OPERATION

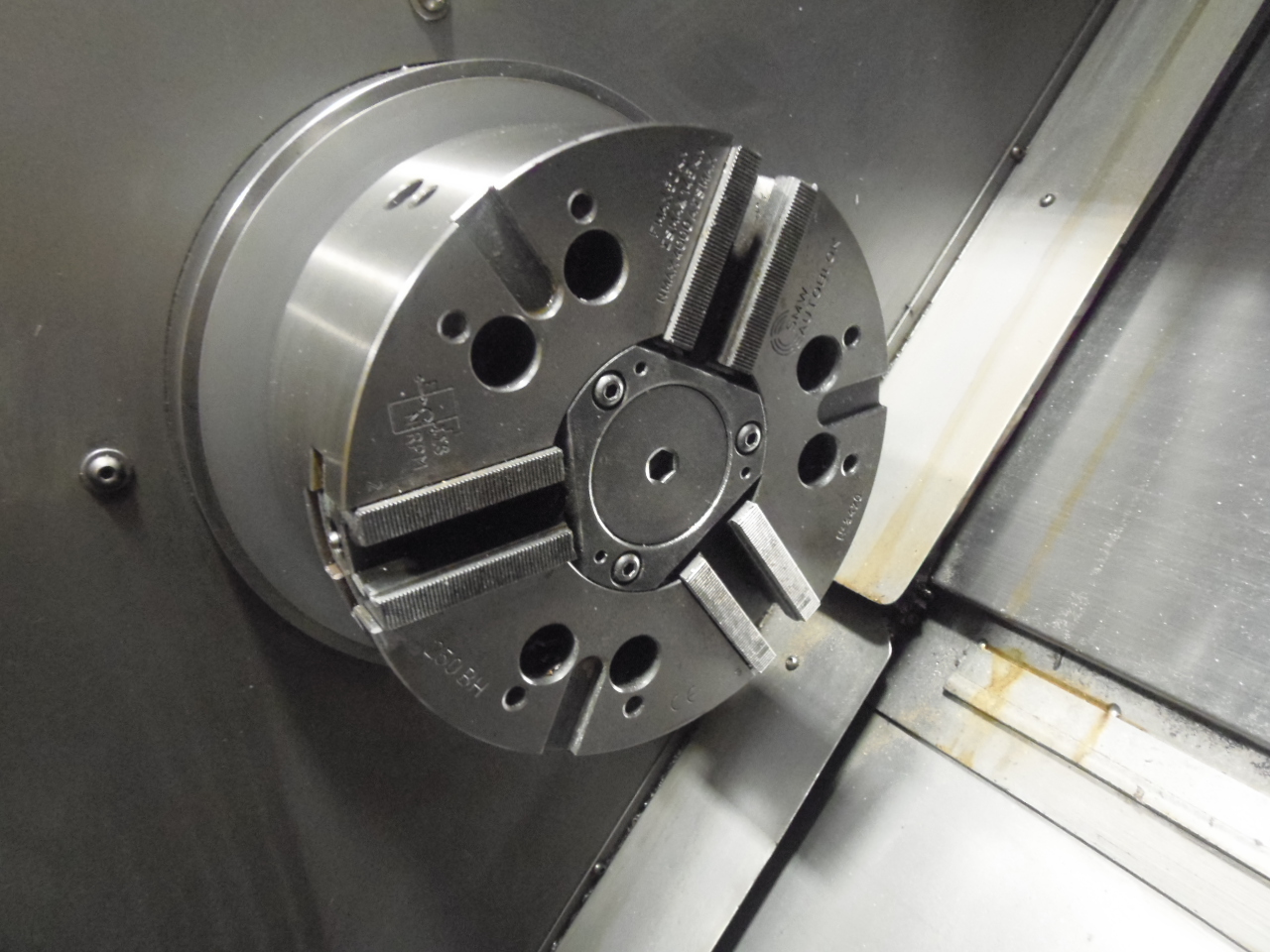

10" SMW 250 BH 3-JAW HYDRAULIC THROUGH HOLE CHUCK
TOOL EYE / TOOL PRE-SETTER
MULTI-TAP 50/60Hz TRANSFORMER
HYDRAULIC TAILSTOCK

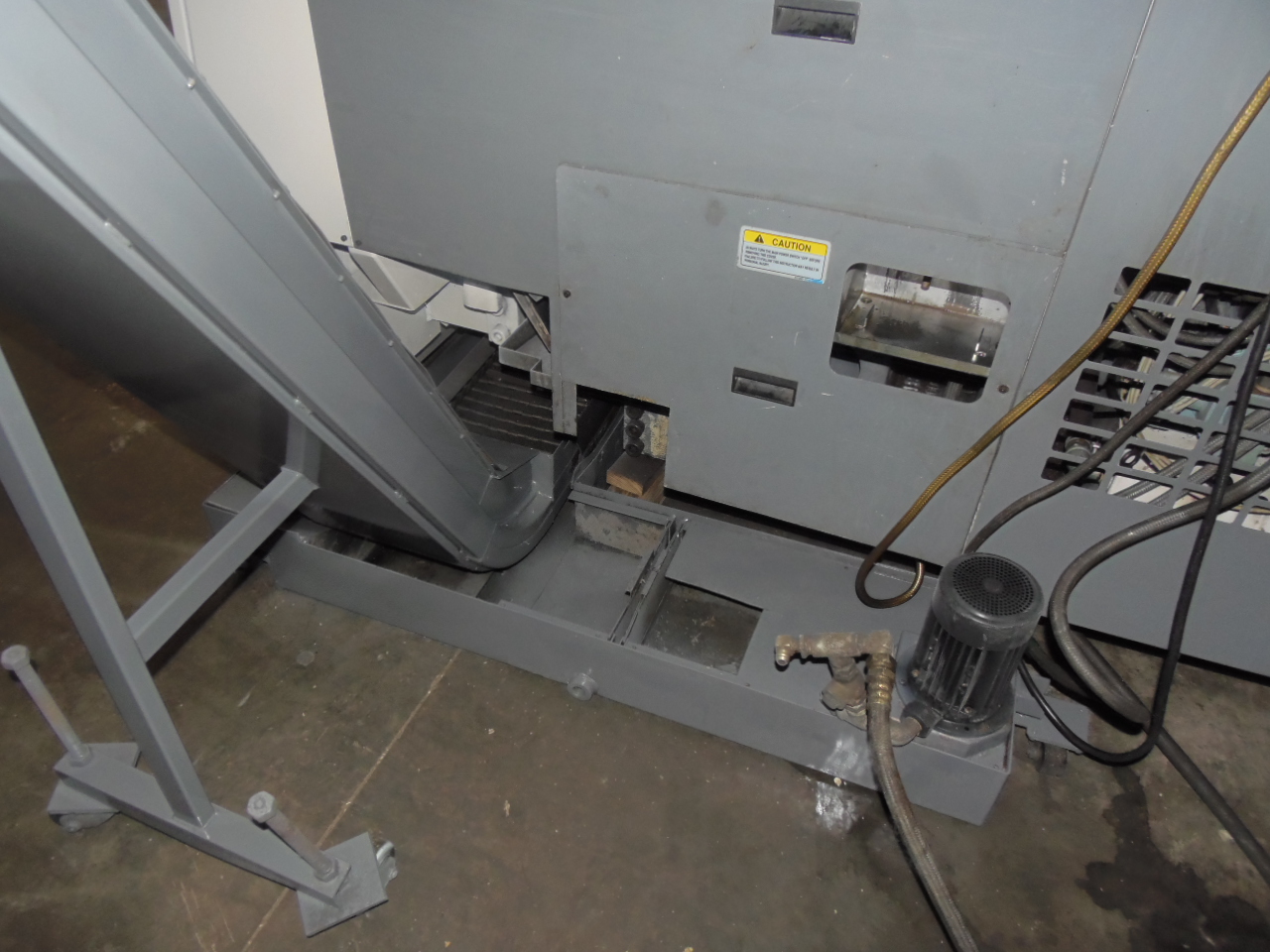

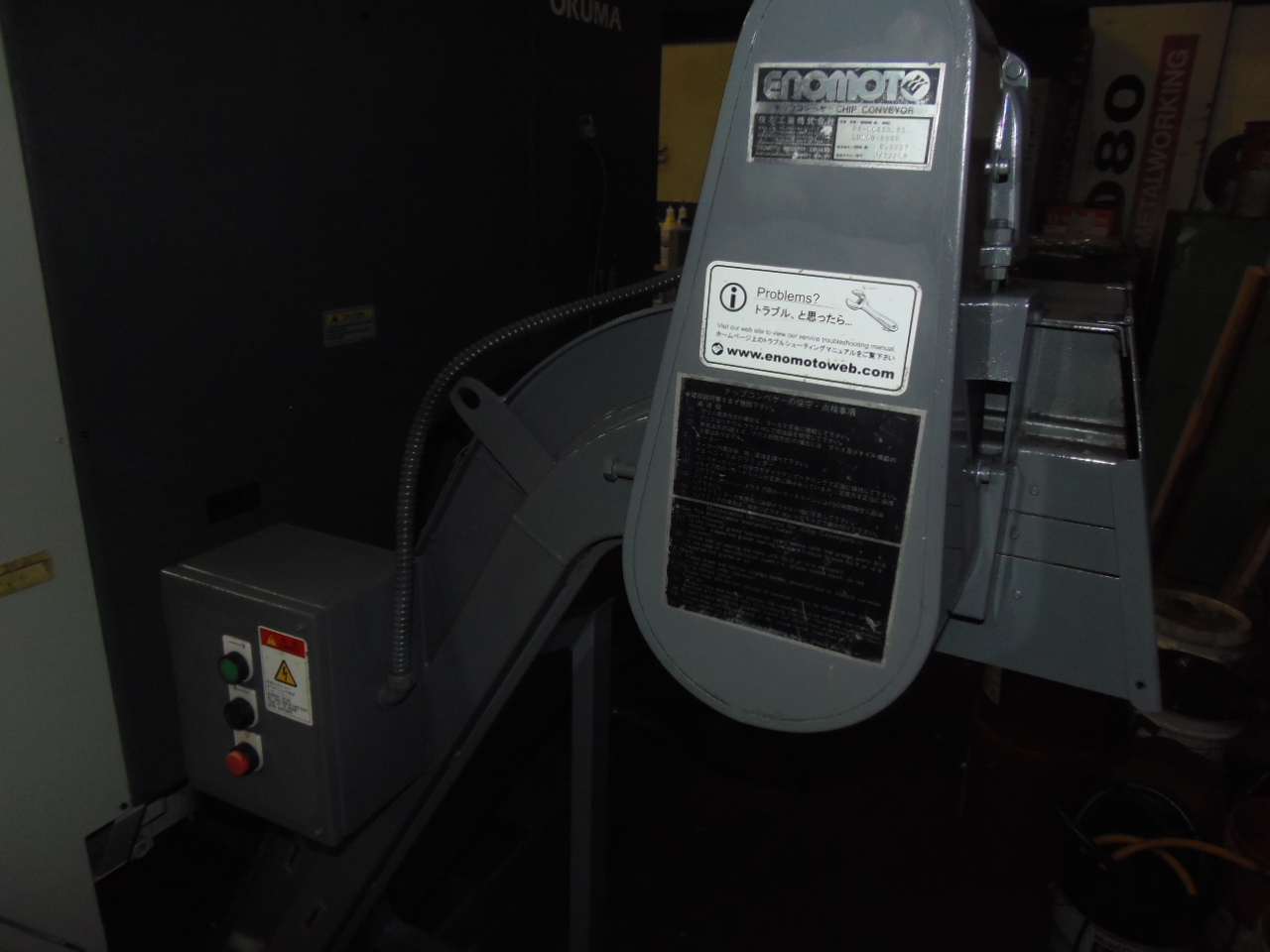

CHIP CONVEYOR
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING
