Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER OKUMA
MODEL LR15-MATC-Y/3T
NEW (APPROX.) 1991
SWING OVER WAYS 17.75"
SWING OVER TURRET SLIDES 10"
MAX. PART LENGTH 20"
SPINDLE MOTOR 28 HP
SPINDLE SPEED 65 - 3500 RPM
SPINDLE BORE 3.15"
SPINDLE NOSE A.2-8
BAR CAPACITY 2.6"

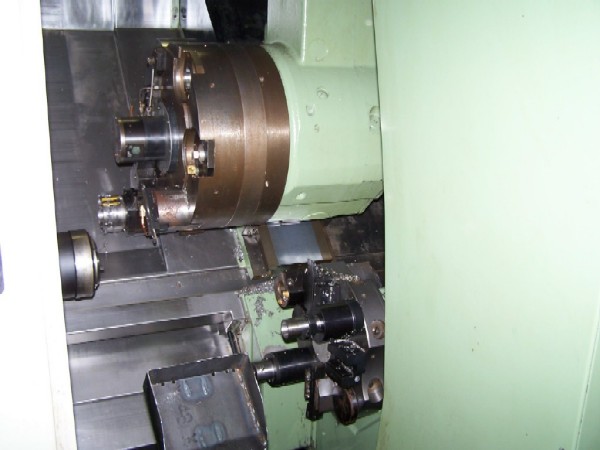

TURRET POSITIONS 8 POSITION
POSITION A 5 POSITION CENTER TURRET
POSITION B 2 LIVE POSITIONS
POSITION C 2 CONVENTIONAL
POSITION D 1 PICKOFF SUBSPINDLE
X TRAVEL 7.68"
Z TRAVEL 31.1"
ONE LIVE TOOL POSITION 1.97" Y-AXIS TRAVEL
AUTO TOOL CHANGER 32 TOOLS W/2 LIVE TURRET POSI.
DIMENSIONS (APPROX.) 15' x 10'
WEIGHT (APPROX.) 17,500 LBS.
EQUIPPED WITH:

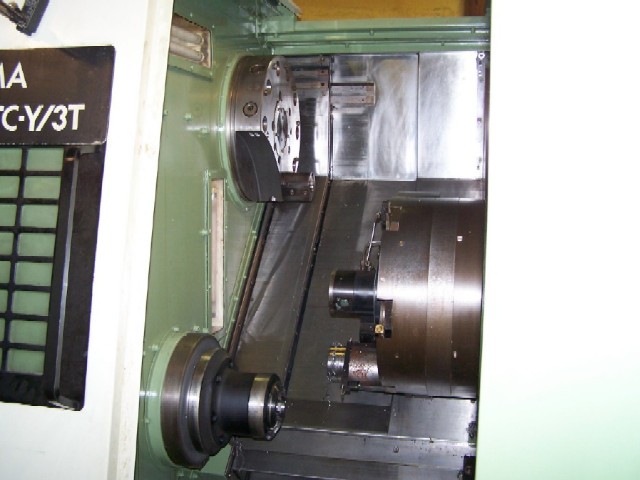

SYNCHRONIZED PICK-OFF (OR MILLING) SUBSPINDLE: 8 HP/3000 RPM

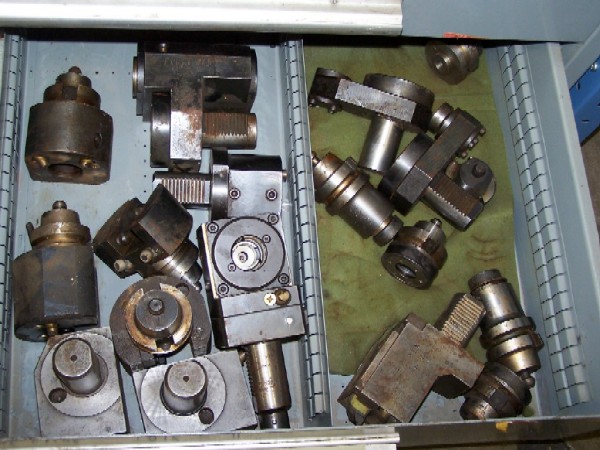

SOME TOOL HOLDERS
PARTS CATCHER AND DISCHARGE CONVEYOR

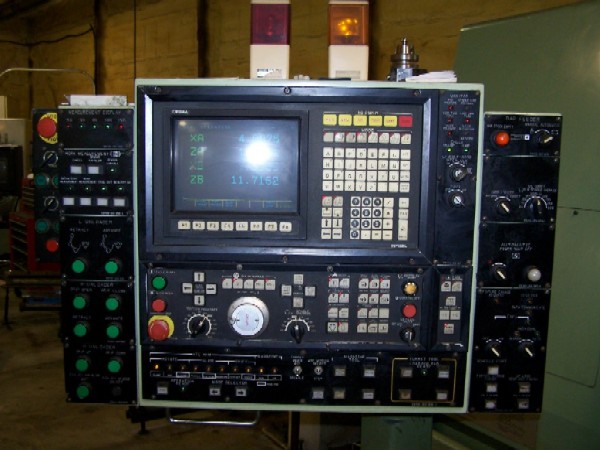

OKUMA OSP5020L CONTROL
MANUALS
NOTE: RECENTLY REPLACED ALL "X" AND "Z" DRIVE BOARDS, INCLUDING MAIN SPINDLE SERVO DRIVE WITH OKUMA REPLACEMENT PARTS (COST $18,000.00)
