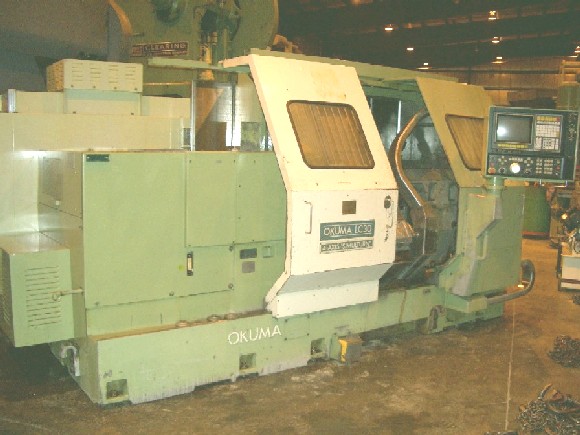

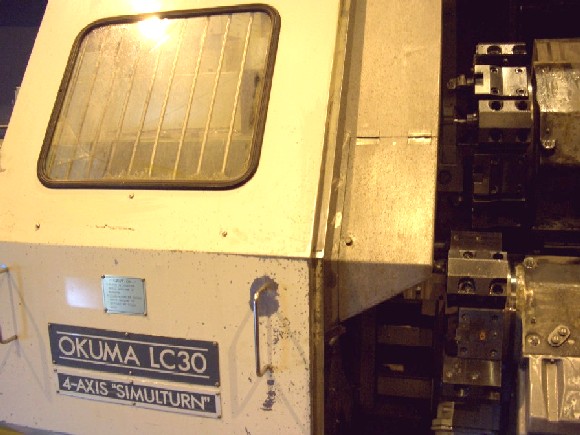

OKUMA LC30-2S, 19.69" SWOB, 40.16"-Z, OSP5000 CNC CTRL, CHIP CONVEYOR, 4-AXIS

GENERAL SPECIFICATIONS:
MANUFACTUER OKUMA
MODEL LC30-2S
SERIAL NUMBER 6204-1542
SWING OVER BED 19.69"
MAX. TURNING DIAMETER 17.72"
MAX. WORK LENGTH 28.74"
SPINDLE NOSE ASA A2-8
BORE DIAMETER 3.03"
SPINDLE SPEED 15 - 3000 RPM
Z-AXIS (LONGITUDINAL)TRAVEL 40.16"
X-AXIS (CROSS-SLIDE)TRAVEL 9.06 + 2.36
Z-AXIS RAPID TRAVERSE SPEED 394 IPM
X-AXIS RAPID TRAVERSE SPEED 197 IPM
MAIN SPINDLE DRIVE MOTOR DC 40.2 HP
FLOOR SPACE (APPROX.) 89" x 172"
WEIGHT (APPROX.) 18.700 LBS.

EQUIPPED WITH:
CHIP CONVEYOR
OSP5000L CNC CONTROL
TAILSTOCK
