Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 19.69"
SWING OVER FRONT COVER 15.75"
MAXIMUM TURNING DIAMETER 11.81"
DISTANCE BETWEEN CENTERS 29.53"
MAXIMUM TURNING LENGTH 19.06"
X AXIS TRAVEL (UPPER TURRET) 6.89"
Z AXIS TRAVEL (UPPER TURRET) 20.47"
X AXIS TRAVEL (LOWER TURRET) 4.53"
Z AXIS TRAVEL (LOWER TURRET) 18.27"
RAPID TRAVERSE RATE X AXIS 400 IPM
RAPID TRAVERSE RATE Z AXIS 400 IPM
SPINDLE NOSE A2-8
SPINDLE BORE 3.1"
SPINDLE SPEEDS 30 - 3,000 RPM
SPINDLE MOTOR 30 HP AC

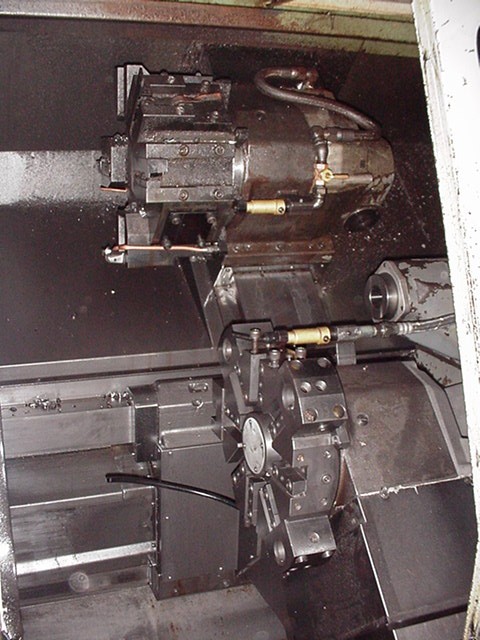

TURRET CAPACITY (UPPER & LOWER) 8 STATION TURRET(S)
TAILSTOCK QUILL DIAMETER 3.54"
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL TRAVEL 5.91"
EQUIPPED WITH:

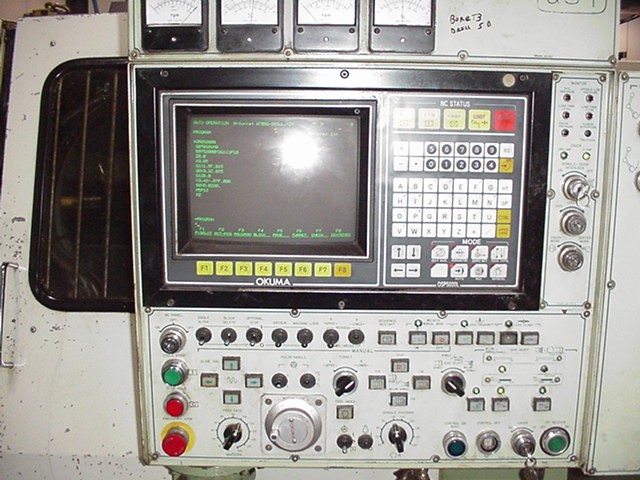

OKUMA OSP-5000L CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
10" 3-JAW HYDRAULIC THROUGH HOLE CHUCK
OMNIBAR SINGLE TUBE HYRAULIC BARFEED
STANDARD COOLANT SYSTEM WITH TANK & PUMP

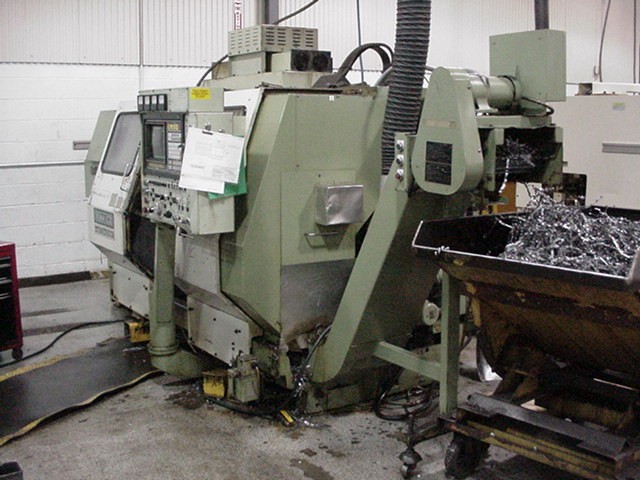

RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
