Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED / SWING OVER SADDLE 42.5" / 21.65"
MAXIMUM TURNING LENGTH (SHAFT WORK) 120.47"
X AXIS TRAVEL 17.32"
Z AXIS TRAVEL 121.1"
C AXIS INDEXING (FOLL CONTOURING) 0.001 DEG.
RAPID TRAVERSE RATE X AXIS 590 IPM
RAPID TRAVERSE RATE Z AXIS 787 IPM
SPINDLE NOSE A2-11
SPINDLE BORE 4.3"
SPINDLE SPEEDS (4 SPEED GEARED) 12 - 2,800 RPM
SPINDLE MOTOR 50 HP AC
TURRET CAPACITY 12 STATION TURRET
LIVE TOOLING (MILLING) MOTOR 10 HP AC
LIVE TOOLING (MILLING) SPEEDS 40 - 2,000 RPM
TAILSTOCK BODY TRAVEL 100"
TAILSTOCK QUILL TRAVEL / DIAMETER 5.9" / 5.9"
EQUIPPED WITH:

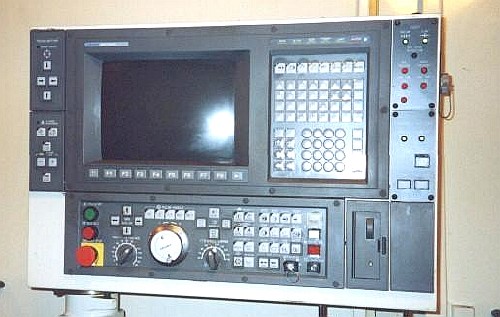

OSP-7000L CNC CONTROL W/9" MONOCHROME CRT & RS-232C PORT
15" 3-JAW HYDRAULIC THROUGH HOLE CHUCK WITH JAWS
(4)STRAIGHT MILLING HEADS, (1)90 DEG MILLING HEAD, ANIMATION
SPINDLE MAX. INTERLOCK, N/C SERVO TURRET, N/C TORQUE LIMITER
MAC MGMT, AUTO CHAMFER, 60M MEMORY, INCH/METRIC SWITCHABLE
STANDARD COOLANT SYSTEM, RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TURNING TOOLING, ALL AVAILABLE MANUALS
