SPECIFICATION:
MANUFACTURER....................: OKUMA
MODEL...........................: LB25II-M
AGE.............................: 1994
SERIAL NUMBER...................: 0041
SWING OVER BED..................: 18.9"
DISTANCE BETWEEN CENTERS........: 26.5"
MAX. TURNING DIAMETER...........: 16.5"
MAX. WORK LENGTH................: 25.6"
TRAVELS (X) AXIS................: 11.82"
(Z) AXIS................: 26.61"
SPINDLE SPEEDS..................: 60 - 3500 RPM
SPEED RANGES....................: 2
SPINDLE NOSE....................: A2-11
SPINDLE BORE....................: 3.15"

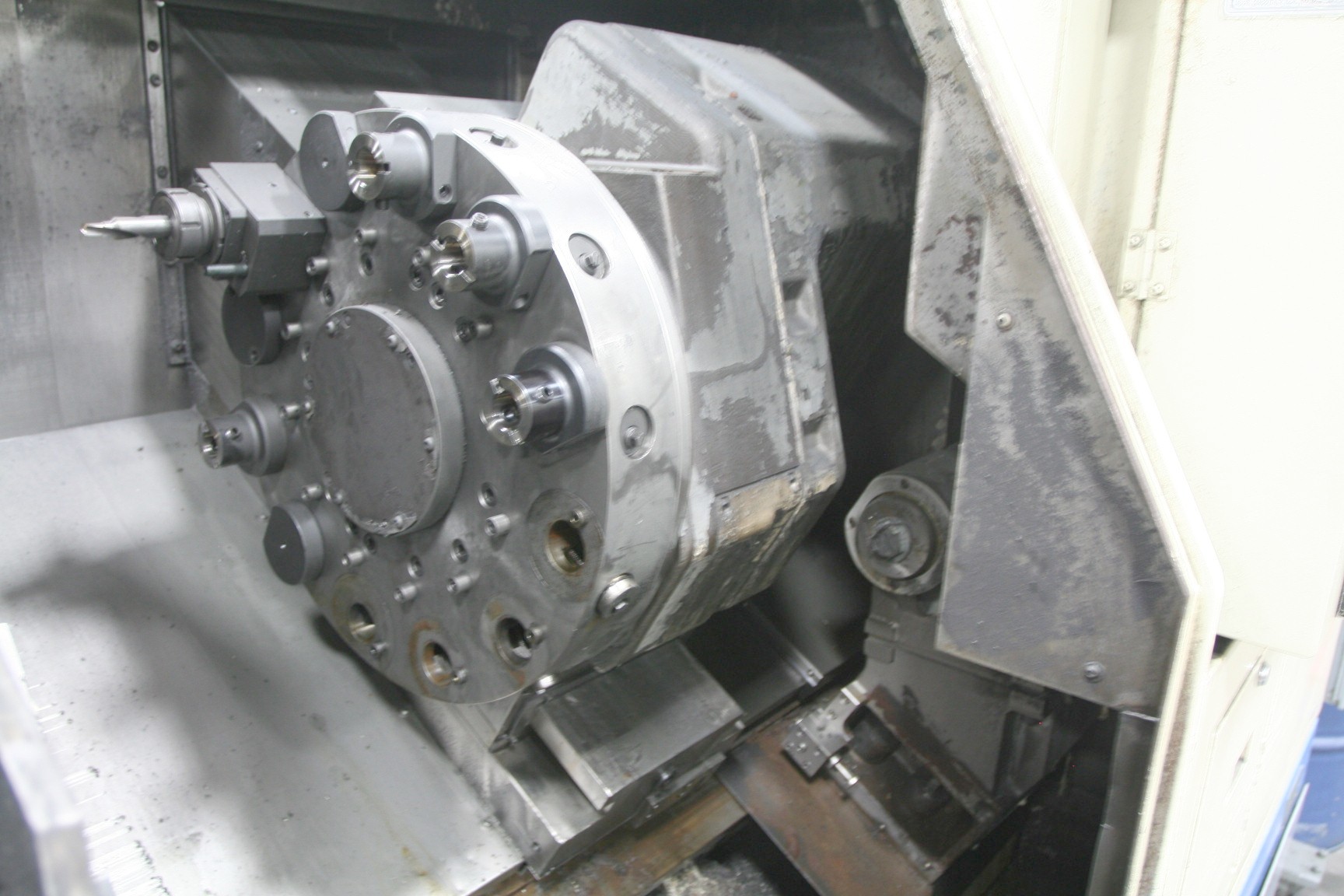

TURRET..........................: 12 ATC
QUILL TAPER.....................: #5
SPINDLE DRIVE...................: 20/15 HP
WEIGHT APPROX...................: 15,000 LBS
EQUIPPED WITH:
LIVE TOOLING

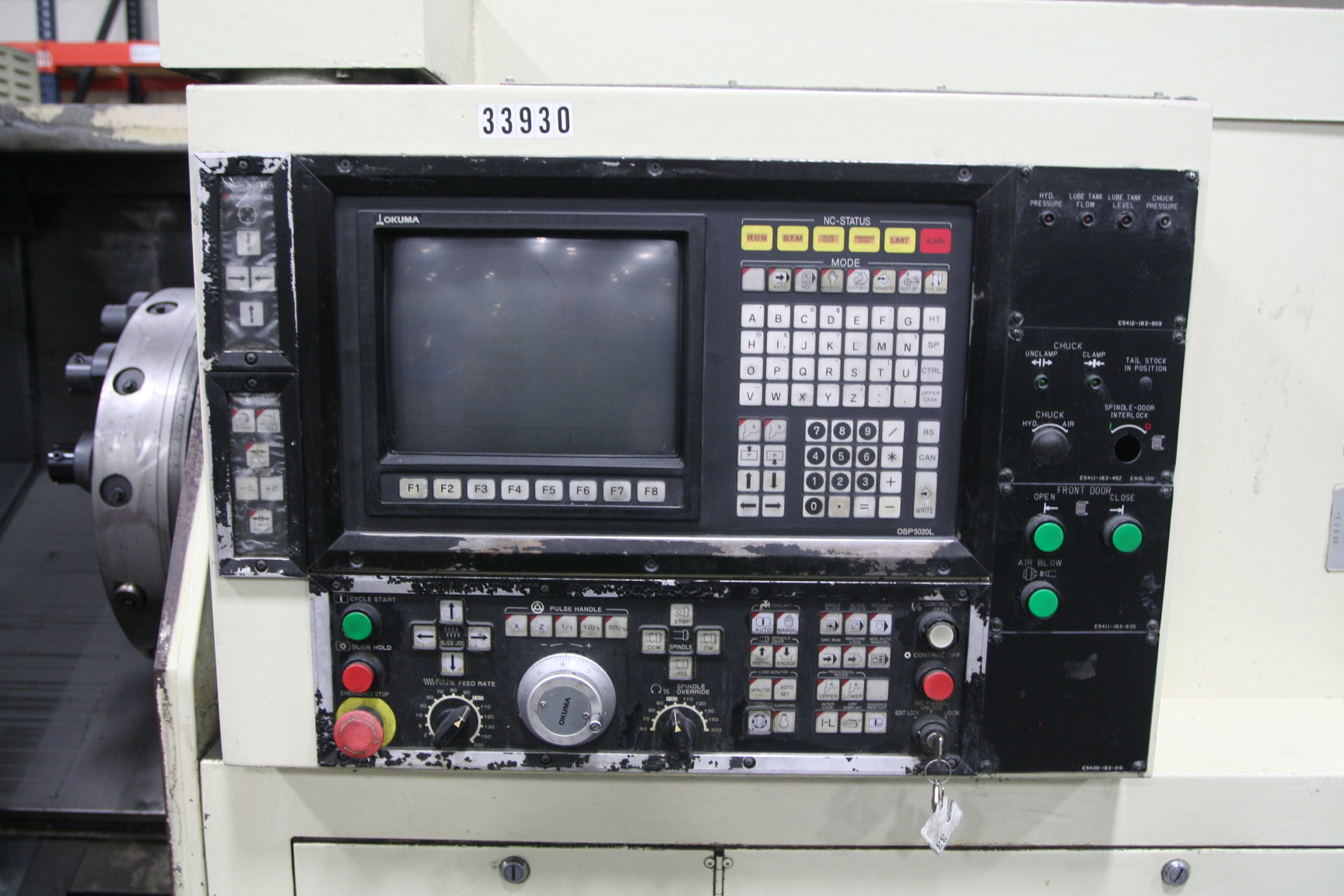

OSP5020L CNC CONTROLS

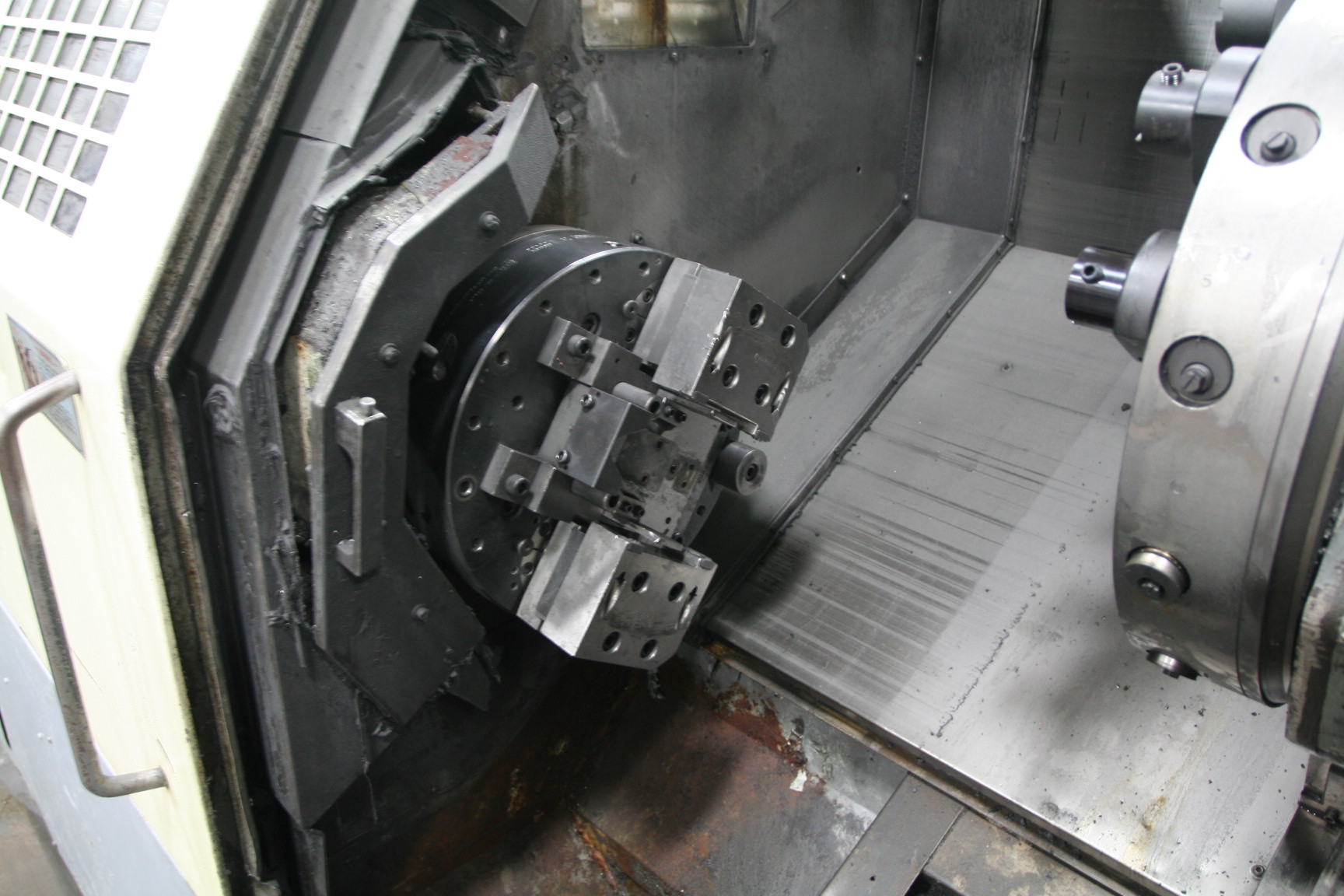

12" WOODWORTH MODEL UBL CHUCK
CHIP CONVEYOR
TAILSTOCK
