Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 13.39"
STANDARD TURNING DIAMETER 5.5"
MAXIMUM TURNING DIAMETER 6.69"
MAXIMUM TURNING LENGTH 11.81"
X AXIS TRAVEL 5.91"
Z AXIS TRAVEL 13.78"
C AXIS INDEXING 0.001 DEG.
RAPID TRAVERSE RATE X AXIS 590.6 IPM
RAPID TRAVERSE RATE Z AXIS 787 IPM
RAPID TRAVERSE RATE C AXIS 200 RPM
SPINDLE NOSE A2-5
SPINDLE BORE 2.09"
SPINDLE SPEEDS 50 - 6,000 RPM
SPINDLE MOTOR 10 HP AC
TURRET CAPACITY (ALL STATIONS LIVE) 12 STATION TURRET
LIVE TOOLING MOTOR 3.0 HP
LIVE TOOLING SPEEDS 100 - 6,000 RPM
TAILSTOCK QUILL DIAMETER 2.17"
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK QUILL TRAVEL 3.15"
EQUIPPED WITH:

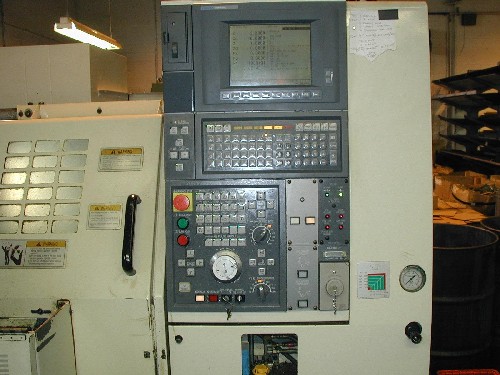

OKUMA OSP-700L CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
MICROCENTRIC COLLET CHUCK SYSTEM, USER TASK II
LNS QUICK LOAD SERVO BARFEED SYSTEM WITH TUBES
TOOL NOSE RADIUS COMPENSATION, INCH / METRIC
MULTI-TAP TRANSFORMER, FLOPPY DISK DRIVE
ALL AVAILABLE LIVE TOOLING (APPROX. 10 HOLDERS)
ALL AVAILABLE TOOL HOLDERS & MANUALS
