GENERAL SPECIFICATIONS
MANUFACTURER........................... OKUMA HOWA
SERIAL NUMBER.......................... 55045
AGE.................................... 2000

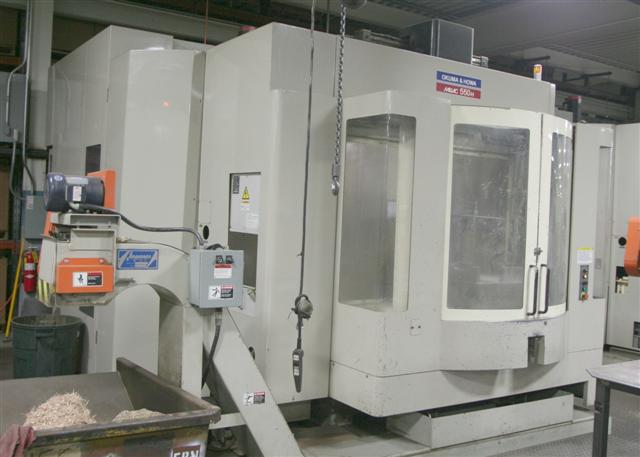

MODEL.................................. MILLAC 550H
X-Axis Travel ......................... 31.50"
Y-Axis Travel ......................... 31.50"
Z-Axis Travel ......................... 27.56"
Number of Pallets ..................... 2
Pallet Size ........................... 21.65" x 21.65"
Pallet Indexing ....................... .001 Degree
Spindle Speed Range ................... 60-10,000 RPM
Spindle Taper ......................... CAT 50
Spindle Drive Motor ................... 40 HP AC
Rapid Traverse (X,Y,Z) ................ 1200 IPM
Tool Change Time ...................... 2.6 Seconds
EQUIPPED WITH:

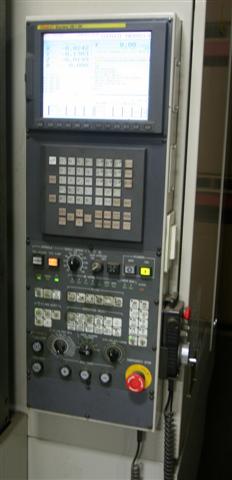

Fanuc 16iM High Speed CNC with Advance Preview

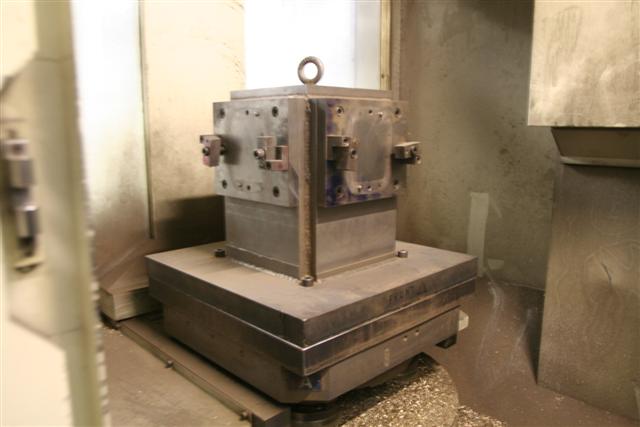

Dual 21.65" x 21.65" Pallets, Automatic Pallet Changer
Full Contouring 360,000 Position Rotary Indexer
60-Position ATC, High-Speed Cam Type Drive
40 HP Hi-Torque Spindle Motor, Ceramic Spindle Bearings
Hi-Speed Rigid Tapping
Absolute Encoders on All Axes, ATC Arm, and Magazine
Spindle Chiller
Square Box-Type Ways on All Axes
Extra Large Coolant Tank
Air Blow through Spindle
Dual Screw-Type Chip Conveyors
Machine Side Self-Diagnostic Function
Slideway Lubrication Unit
Electric Spindle Orientation
Audible Buzzer for Diagnostic Alarms
Mounting Plates and Leveling Screws
Preparation for Hydraulic Fixture at Pallet
MACHINE HAS ONLY RUN BRASS
IN PLANT & UNDER POWER
