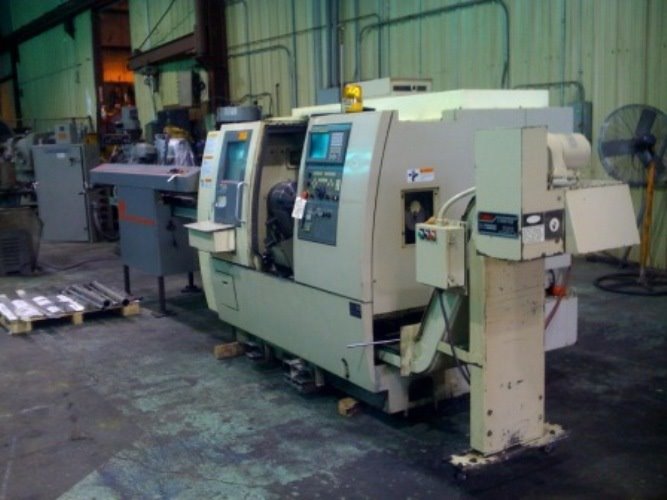

Specifications:
Manufacturer........................... Okuma Howa
Model.................................. ACT 35
Serial number.......................... 5101
Age.................................... 1997
Swing Over Bed ........................ 19.68" (500 mm)
Turning Diameter (Max) ................ 13.77" (350 mm)
Machining Length (Max) ................ 24.01" (610 mm)
Bar Capacity (Max.) ................... 3.07" (78 mm)
Distance between Centers .............. 24.01" (610 mm)
Spindle Nose .......................... A2-8
Spindle Diameter ...................... 5.11" (130 mm)
Hole through Spindle .................. 3.62" (92 mm)
No. of Spindle Speed .................. Stepless (1 : 8)
Spindle Speed ......................... 35 - 3500 RPM
Spindle Speed Override ................ 50 - 200 % (11 steps)
Type of Turret ........................ V12
Standard Tool ......................... 1" (25 mm)
Boring Bar ............................ 1 3/4" (40, 50 mm)
Travel (X Axis) .............. ........ 7.87" (200 mm)
Travel (Z Axis) ....................... 24.01" (610 mm)
Rapid Traverse Rate (X Axis) .......... 24" IPM (944m/min)
Rapid Traverse Rate (Z Axis) .......... 30" IPM (1180 m/min)
Cutting Feedrate ...................... 0.00001 - 6.74" (0.0001 - 171.4 mm)
Cutting Feed Override ................. 0 - 200% (10% Steps)
Tailstock Quill ....................... 3.93" (100 mm)
Quill Boretapor ....................... MT5
Quill Stroke .......................... 4.72" (120 mm) Hydraulic Drive
Tailstock Body Stroke ................. 15.74" (400 mm)
CNC Unit Type ......................... Fanuc 18T
Main Spindle Motor .................... AC 11/15kW
Hydraulic Pump Motor .................. AC 1.5 - 4 P (kW)
Way Lubricating Pump Motor ............ AC 0.017 - 2 P (kW)
Coolant Pump .......................... AC 0.18 - 2 P (kW) for Turret and tool
Fluorescent Lamp for Lighting ......... 100V - 15W
Total Power Consumption ............... 24 kVA
Floor Space Required (Width) .......... 96.45" (2450 mm)
Floor Space Required (Depth) .......... 63.58" (1615 mm)
Overall Machine Height ................ 74.40" (1890 mm)
Weight (approximate) .................. 10,000lbs
Equipped with:

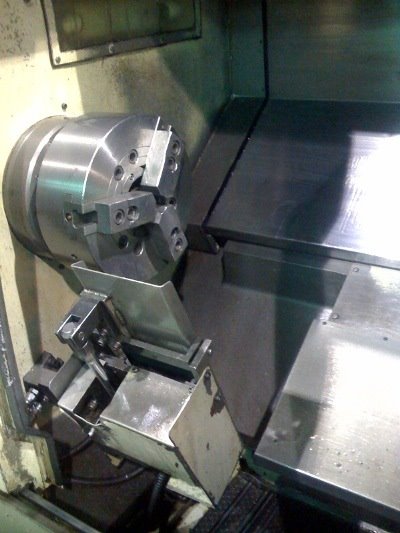

12" 3-Jaw Hydraulic Chuck

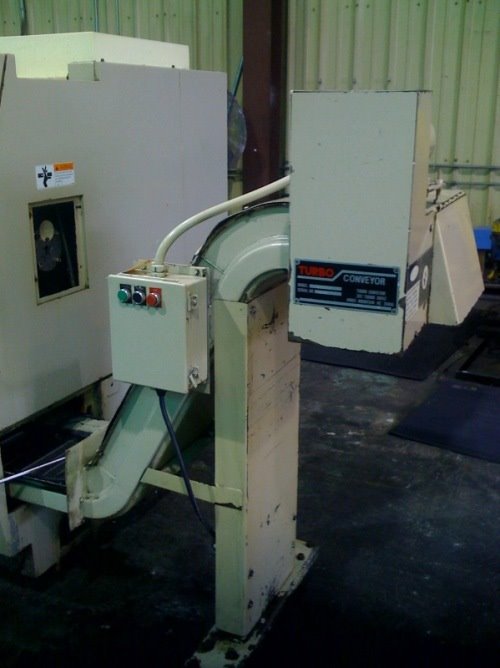

Turbo Chip Conveyor

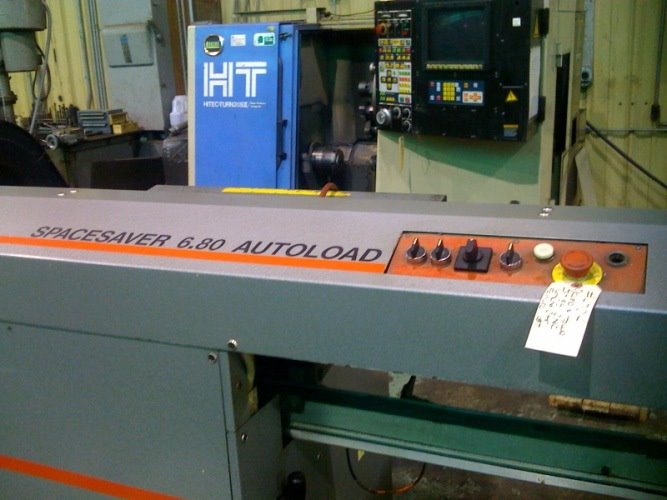

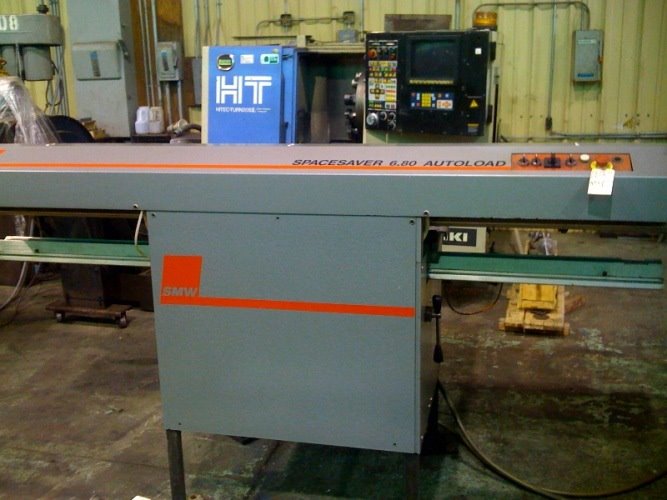

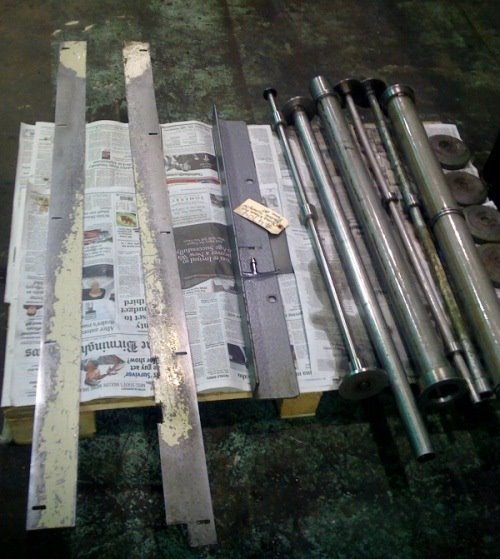

Space Saver 6.80 Barfed Auto-Load

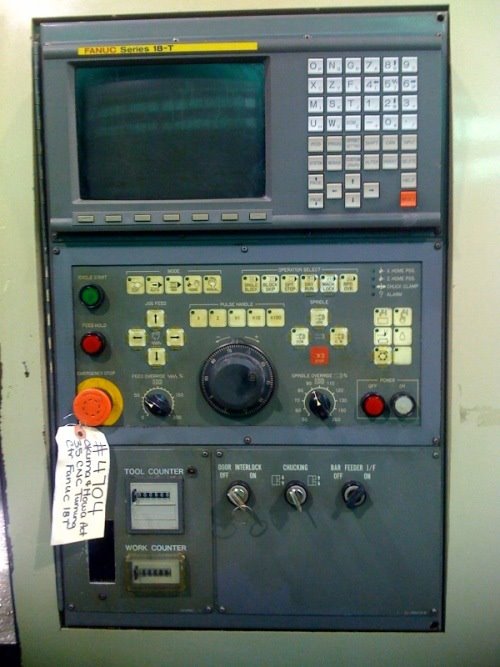

Fanuc 18T Control
Electrics: 200V, 3PH, 60 Cycle (WAS RUNNING 220V)
Overall: 79" x 97" x 79"H x 10,000 lbs
Turbo Chip Conveyor: 96" x 20" x 63"H
Space Saver 6.80 Auto-load: 94" x 36" x 53"H
