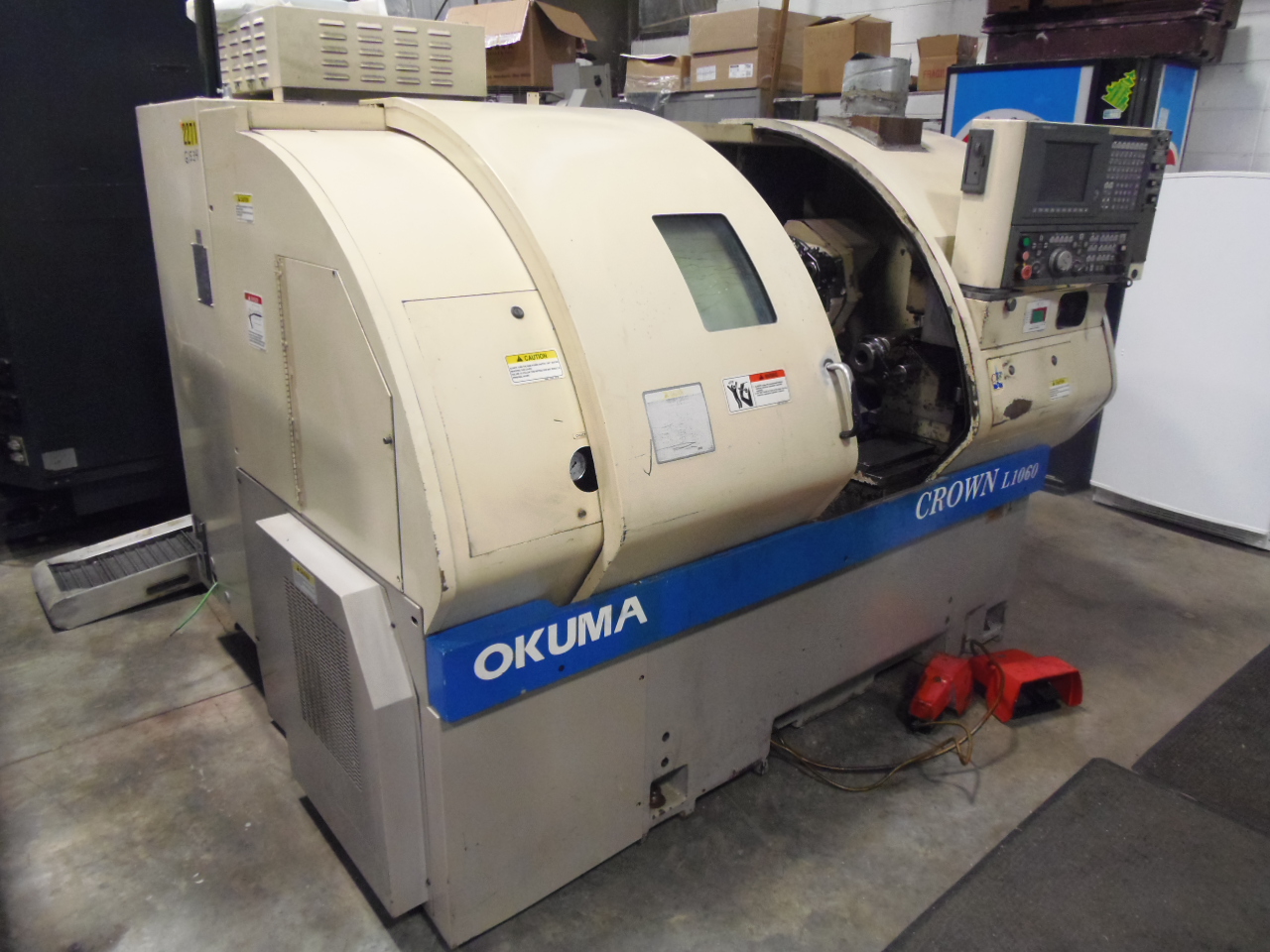

OKUMA CROWN L-1060 (762-SSB), 20" CTRS, PROGRAMMABLE TAILSTOCK, 8" HYD CHUCK, OSP-U10L CONTROL, ONLY 3886 CUTTING HOURS, NEW 2000

MANUFACTURER......................... OKUMA
MODEL................................ CROWN L-1060
YEAR................................. 2000

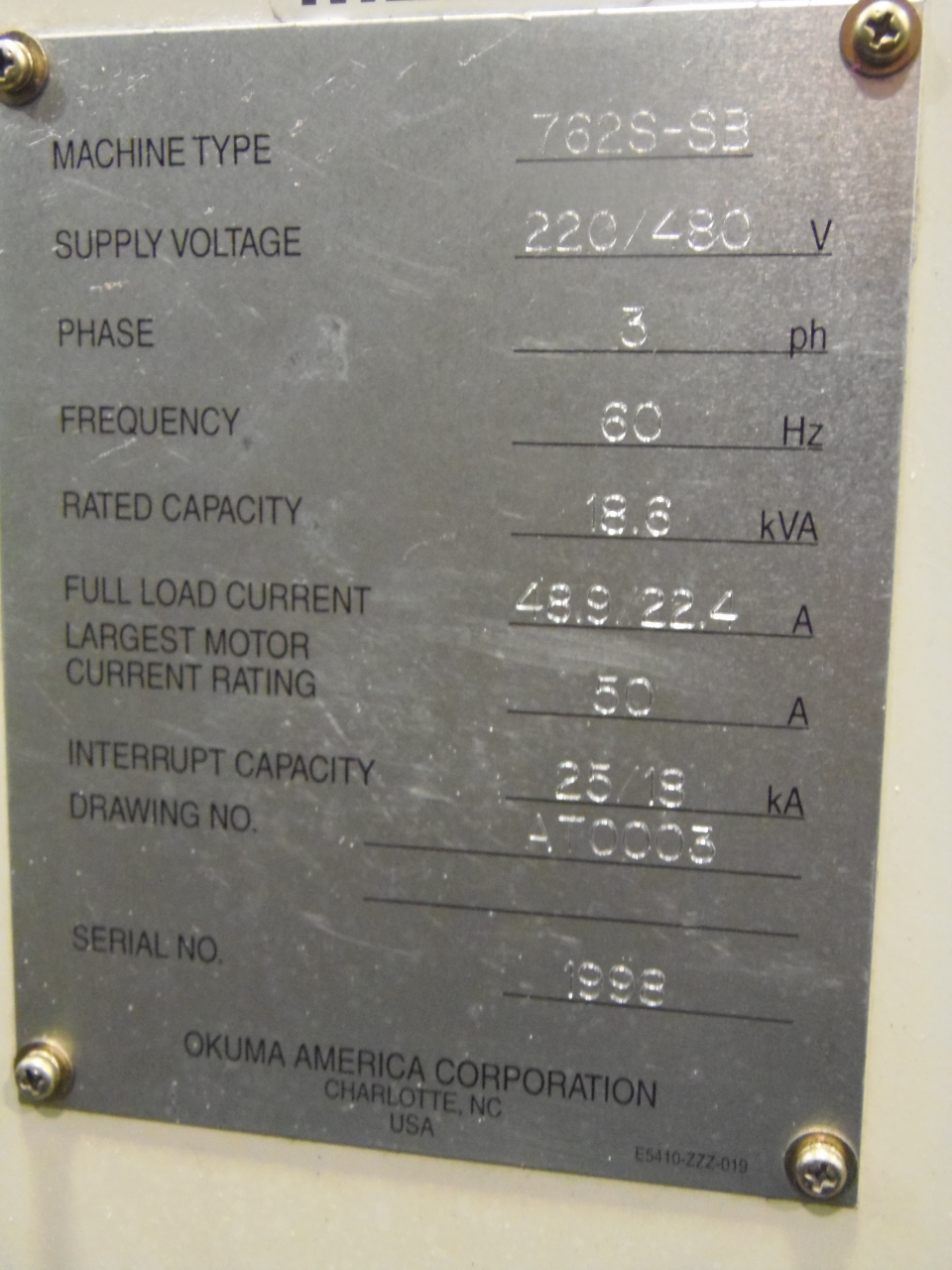

SERIAL NUMBER........................ 1998
MAX. SWING OVER BED.................. 21.65"
MAX. SWING OVER CROSS-SLIDE.......... 15.75"
MAX. TURNING DIAMETER................ 10.63"
MAX. TURNING LENGTH.................. 19.68"
STANDARD CHUCK SIZE.................. 8"
CROSS TRAVEL (X)..................... 7.28"
LONGITUDINAL TRAVEL (Z).............. 20.47"
FEED RANGE (INF. VARY)............... .1 - 400 IPM
RAPID TRAVERSE RATE (X).............. 787.4 IPM
                    (Z).............. 984.3 IPM
TURRET POSITIONS..................... 12
SPINDLE BORE......................... 2.44"
HOLE THRU DRAW TUBE.................. 1.625"
SPINDLE NOSE......................... A2-6
SPINDLE SPEED RANGE.................. 75 - 4200 RPM
OPERATING HOURS...................... 5092
CUTTING HOURS........................ 3886
SET UP HOURS (NON RUNNING)........... 29,911
SPINDLE HORSEPOWER................... 18 HP
APPROX. MACHINE DIMENSIONS........... 104" X 73" X 69" HIGH
APPROX. MACHINE WEIGHT............... 9670 LBS

EQUIPPED WITH:
OKUMA OSPU-10L CONTROL

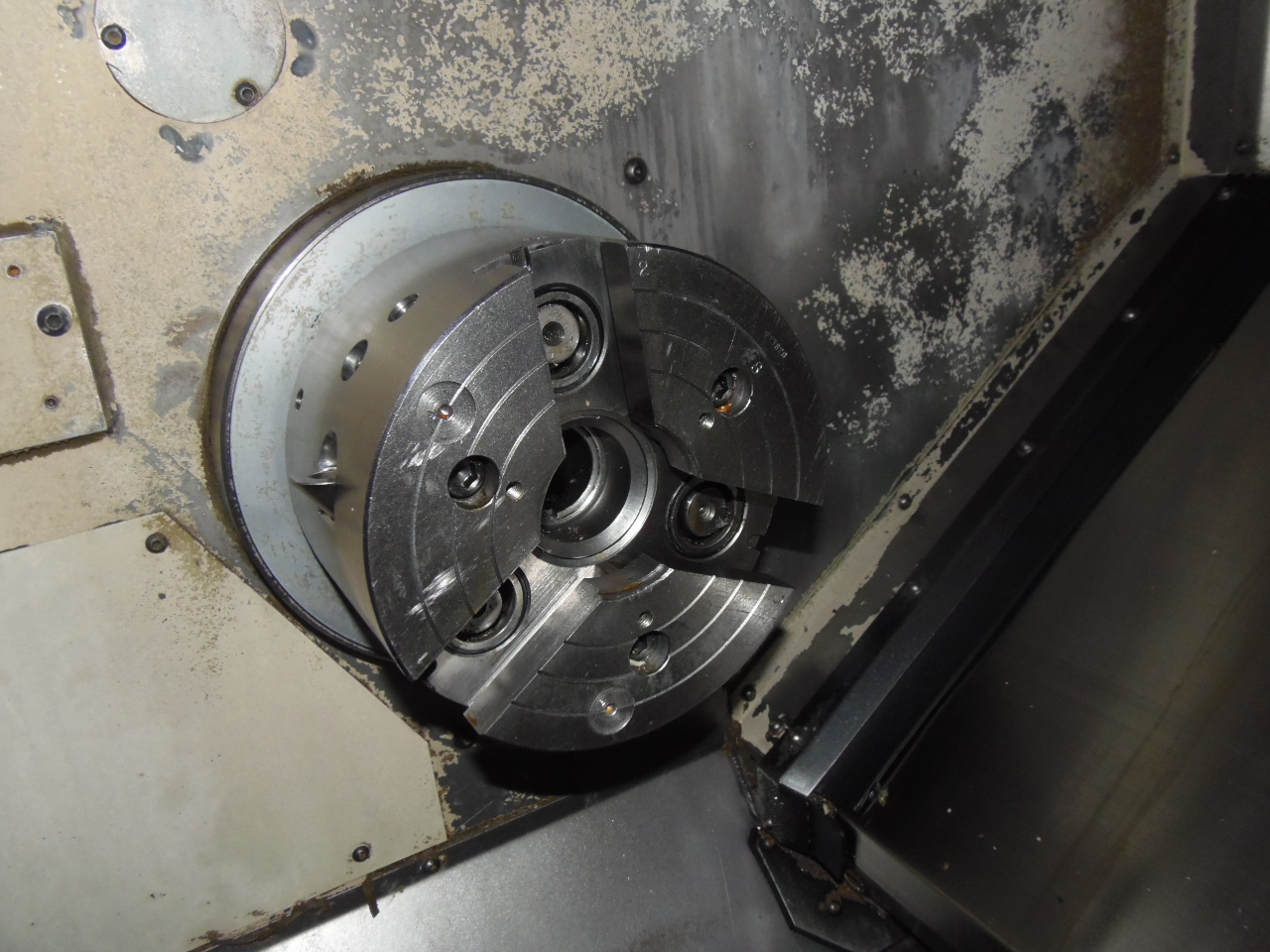

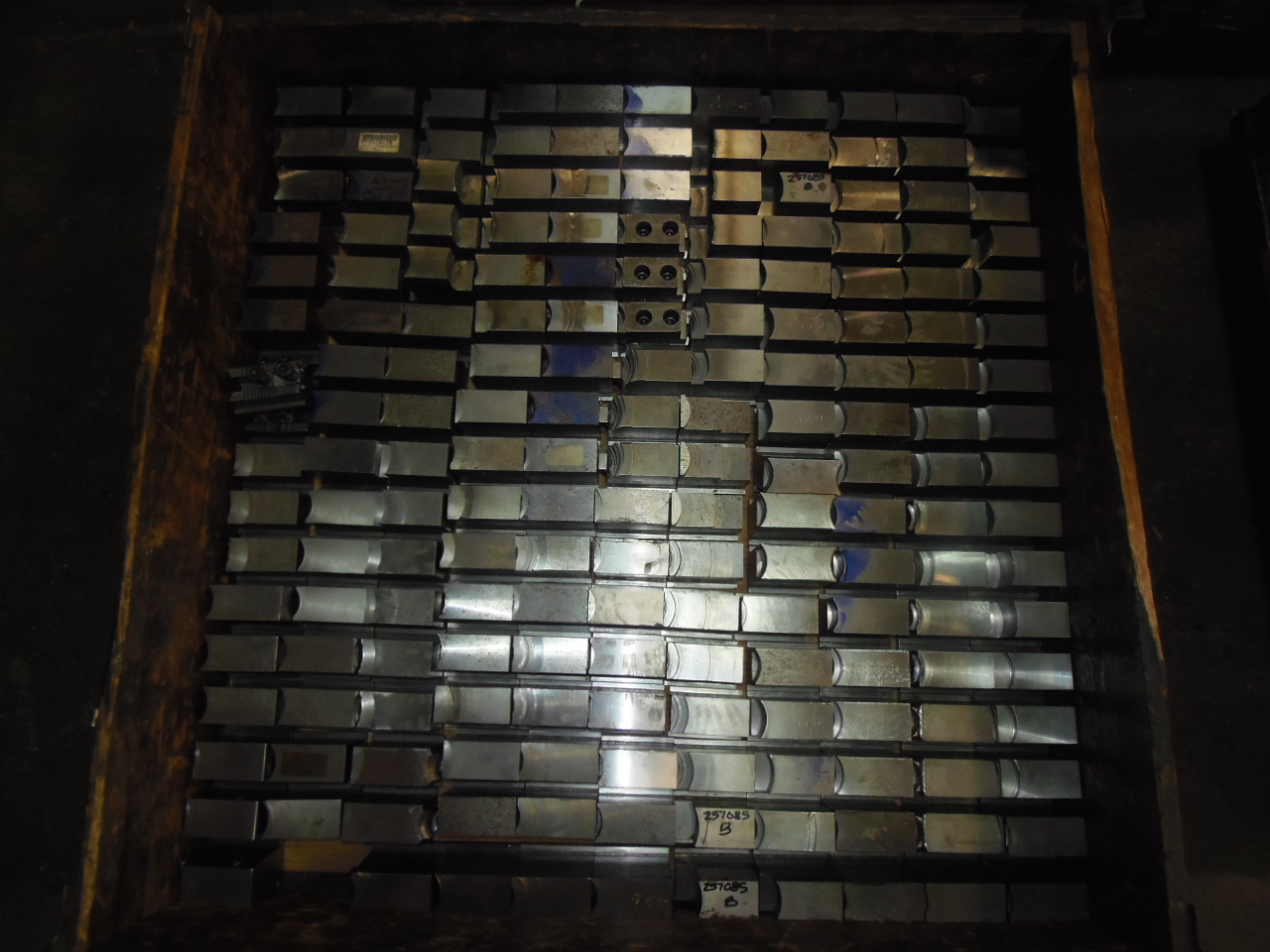

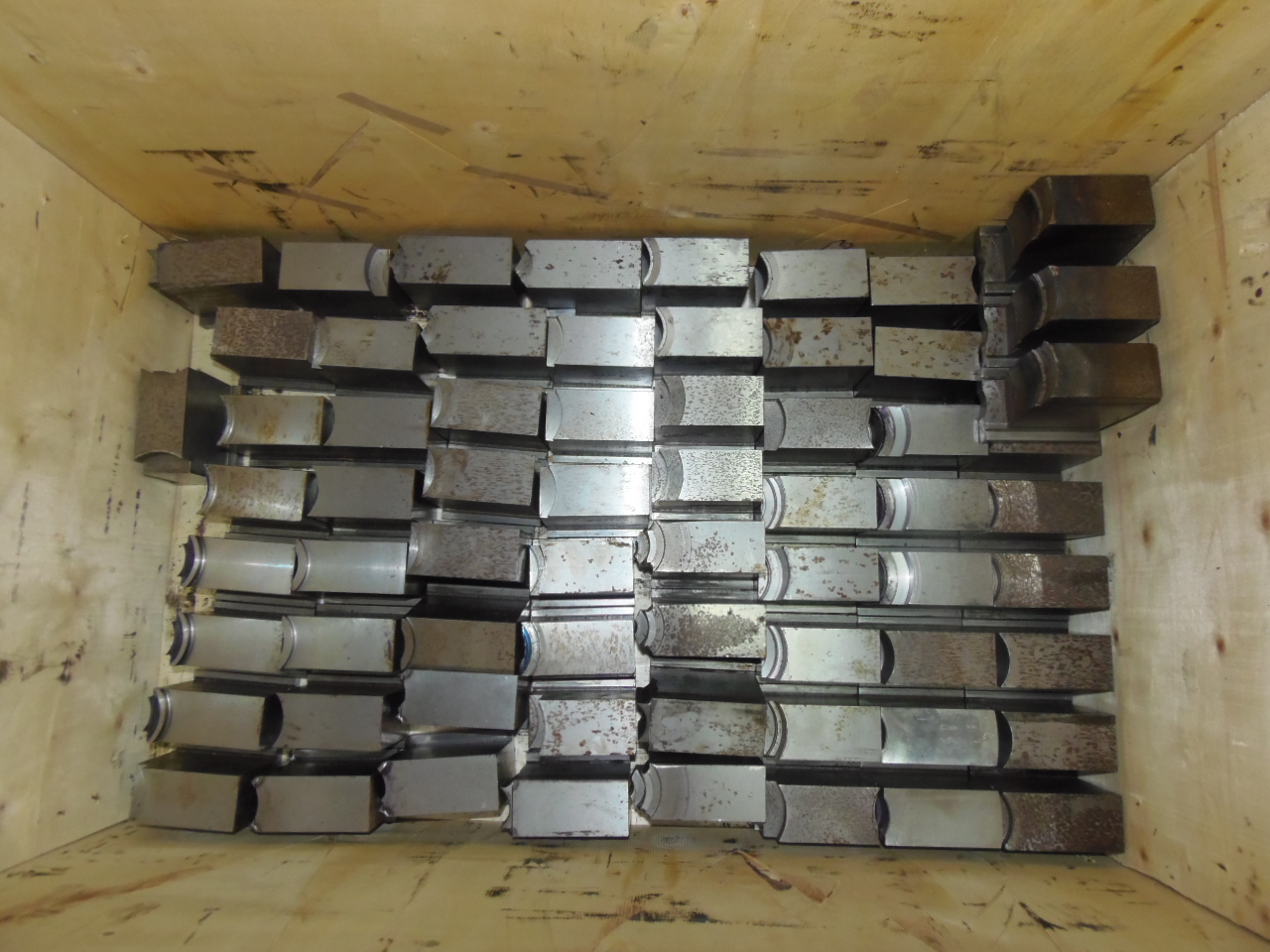

8" 3 JAW HYD. CHUCK WITH LOTS OF JAWS

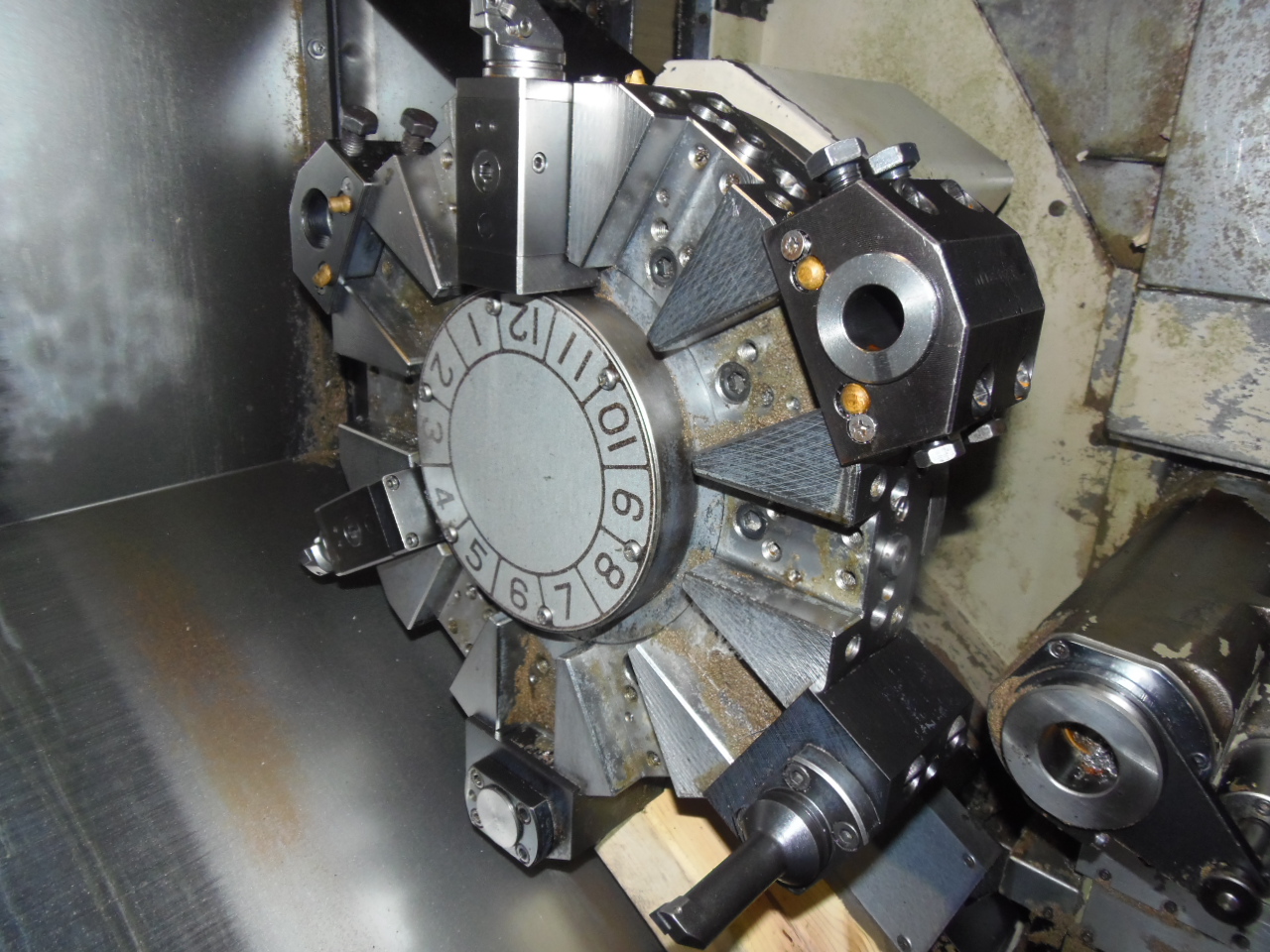

12 POSITION SERVO TURRET

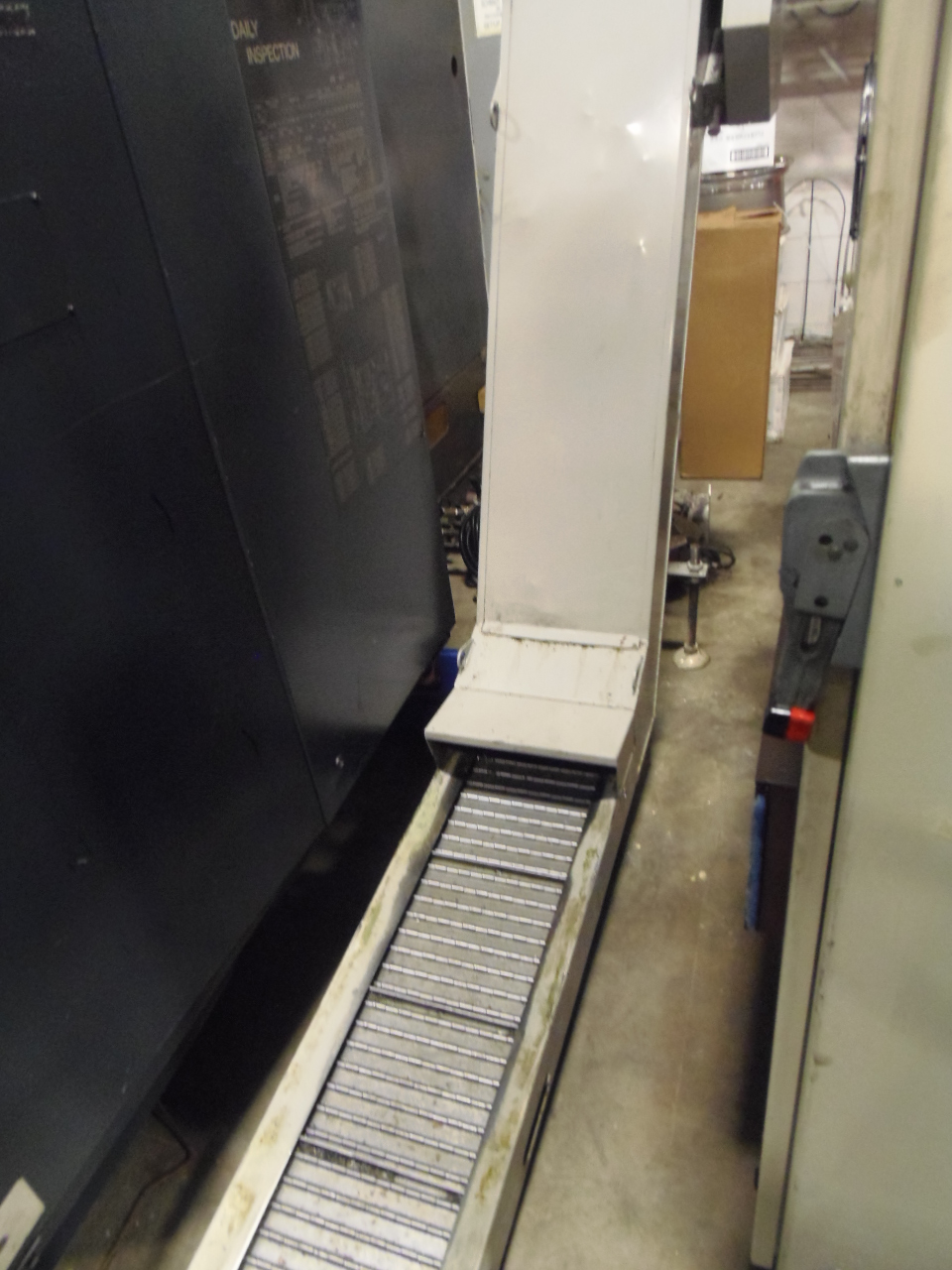

CHIP CONVEYOR

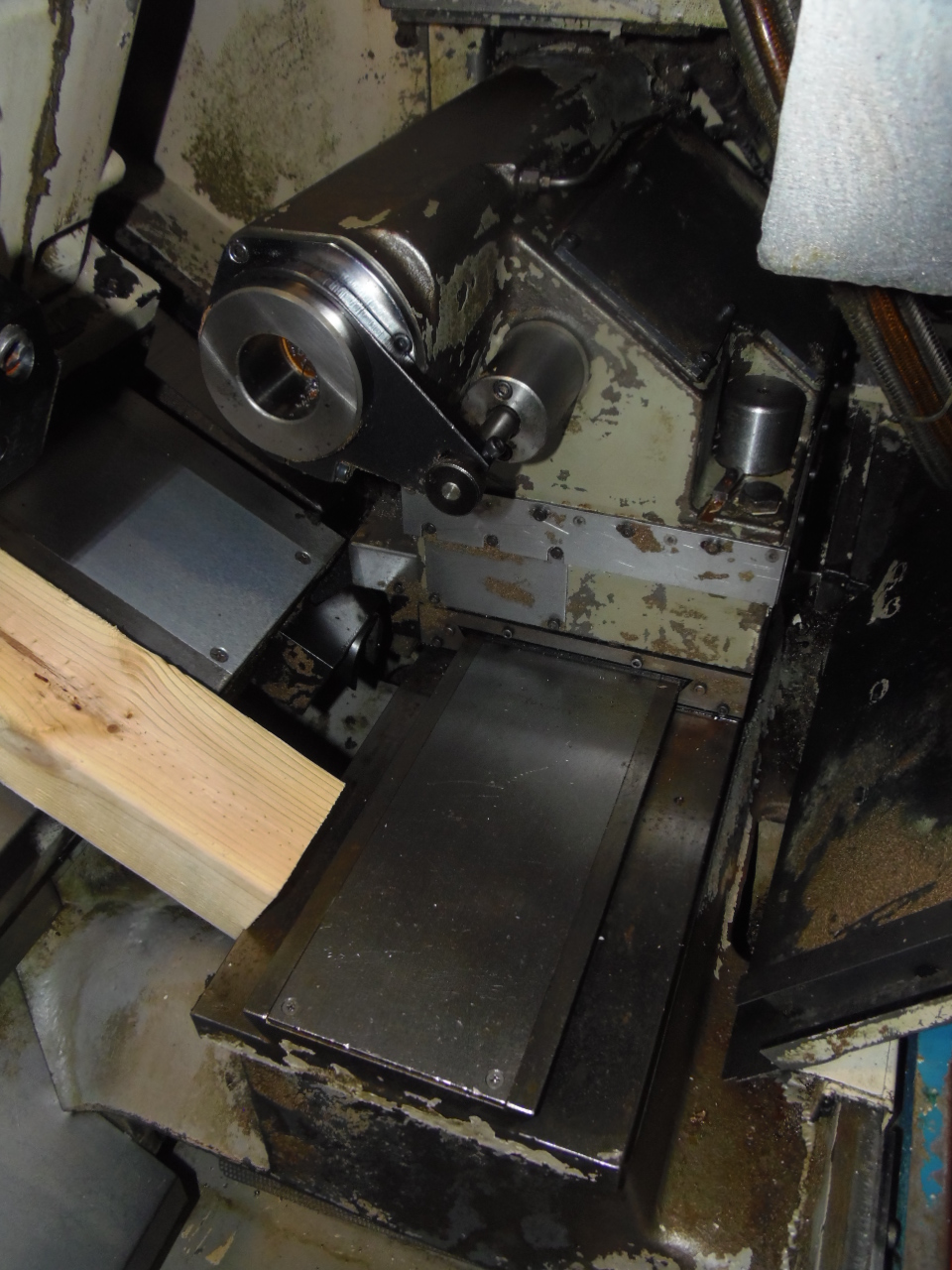

PROGRAMMABLE TAILSTOCK WITH QUILL
MISC. TOOLING
MISC. MANUALS
COOLANT SYSTEM
