Specifications
Equipped With
GENERAL SPECIFICATIONS:

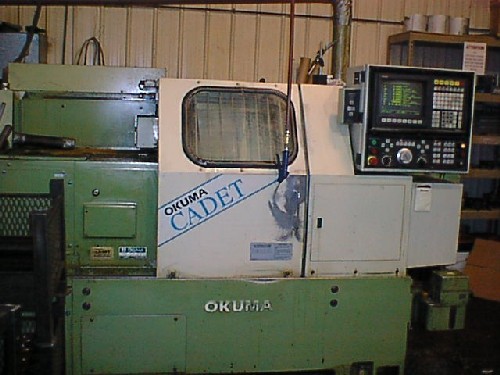

MODEL # CADET LNC-8 BB
NEW APPROXIMATELY 1993 (1994 INSTALL)
SWING OVER BED 21.65"
SWING OVER CROSS SLIDE 15.75"
MAXIMUM TURNING DIAMETER 10.63"
MAXIMUM TURNING LENGTH 20.47"
X AXIS TRAVEL 7.28"
Z AXIS TRAVEL 20.47"
RAPID TRAVERSE RATE X AXIS 590.6 IPM
RAPID TRAVERSE RATE Z AXIS 590.6 IPM
SPINDLE NOSE A2-8
SPINDLE BORE 3.15"
SPINDLE SPEEDS 75 - 3,500 RPM
SPINDLE MOTOR 20 HP AC
TURRET CAPACITY 12 STATION TURRET
TAILSTOCK DIAMETER 3.54"
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK QUILL TRAVEL 4.72"
EQUIPPED WITH:
OSP-5020L CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
10" 3-JAW HYDRAULIC CHUCK WITH JAWS
TOOL EYE (AUTOMATIC TOOL PRESETTING ARM)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOL BLOCK HOLDERS
ALL AVAILABLE MANUALS
