Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 48.03" x 25.20"
MAXIMUM TABLE LOAD 1,760 LBS
SPINDLE NOSE TO TABLE TOP 7.87" - 28.35"
X AXIS TRAVEL 40.16"
Y AXIS TRAVEL 25"
Z AXIS TRAVEL 20.47"
RAPID TRAVERSE RATE X AXIS 630 IPM
RAPID TRAVERSE RATE Y AXIS 630 IPM
RAPID TRAVERSE RATE Z AXIS 472 IPM
CUTTING FEED RATE 0.1 - 196.9 IPM
SPINDLE SPEEDS 100 - 6,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 15 HP AC

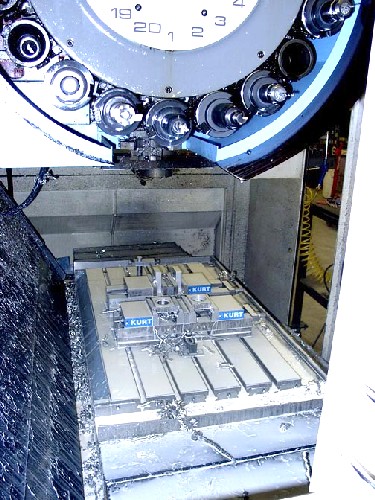

TOOL CHANGER CAPACITY 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 3.0 SECONDS
EQUIPPED WITH:
MITSUBISHI MELDAS 320M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)

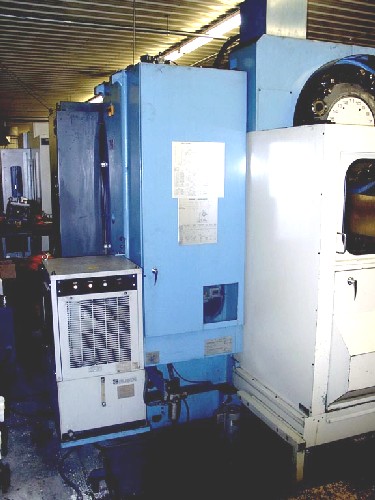

SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
