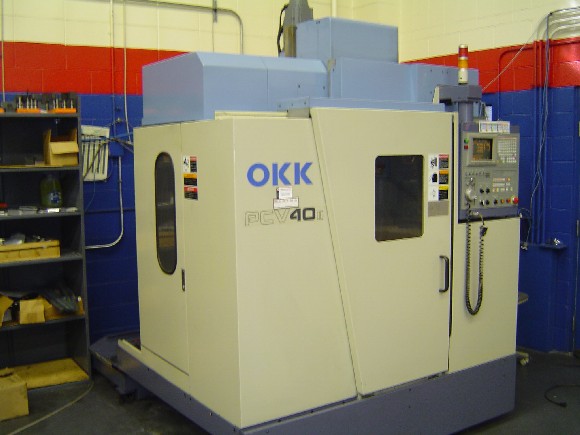

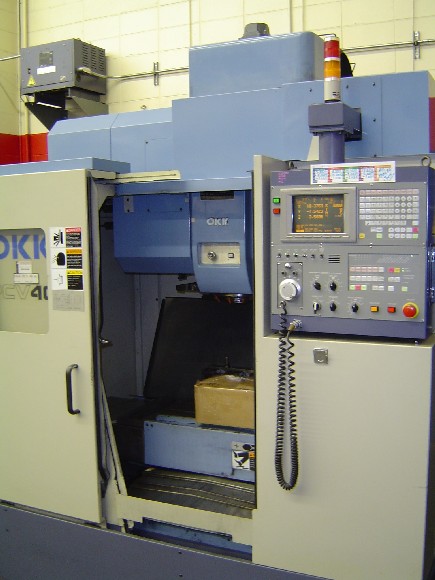

OKK PCV-40II, 22"-X, 16"-Y & Z, 28" x 16" TBL, CAT 40 TAPER, 20 ATC, MELDUS M520 CNC CTRL, 1997

GENERAL SPECIFICATIONS:
MANUFACTURER OKK
MODEL PCV-40II
NEW (APPROX.) 1997
X-TRAVEL 22"
Y-TRAVEL 16"
Z-TRAVEL 16"
TABLE SIZE 28" x 16"
SPINDLE NOSE TO TABLE 7" - 24"
MAX. WORK PIECE WEIGHT 1,100 LBS.
SPINDLE MOTOR 7.5 HP
SPINDLE SPEED 10,000 RPM
SPINDLE TAPER CAT 40
AXIS DRIVE MOTORS AC-SYNCHRONOUS MOTORS
BALL SCREWS PRELOADED, ZERO BACKLASH
FEED RATES PER MINUTE 0 - 196"
TOOL CHANGER 20 POSITION
WEIGHT (APPROX.) 9,900 LBS
DIMENSIONS (APPROX.) 77"W x 86"D x 103"H

EQUIPPED WITH:
MELDUS M520 CNC CONTROL
