Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER OKK
MODEL MCV650
NEW (APPROX.) 1995

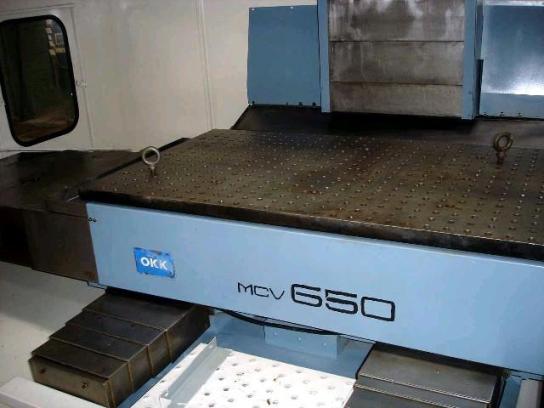

TABLE SIZE 33.94 X 62.99"
TABLE SLOTS - NECK .866"
TABLE SLOTS - BOTTOM 1.46"
X-TRAVEL 50.00"
Y-TRAVEL 25.59"
Z-TRAVEL 25.59"
MAXIMUM WEIGHT LOAD ON TABLE 4409 POUNDS
SPINDLE DIAMETER 3.94"
NOSE TO TABLE 7.87 / 33.46
TO COLUMN 27.56
SPEEDS 25 - 4000 RPM
TAPER #50 CAT
RAPID TRAVERSE X & Y 630 IPM
RAPID TRAVERSE Z 472 IPM
FEED RANGE 1 / 197 IPM
TOOL CHANGER CAPACITY 30 TOOLS
HORSEPOWER 30 HP
EQUIPPED WITH:

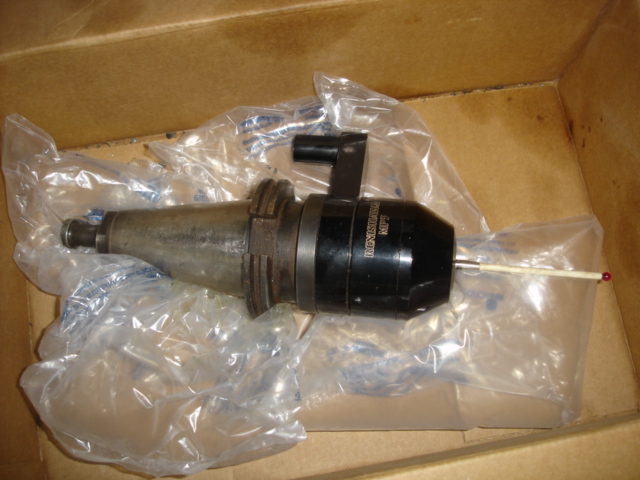

PROBE

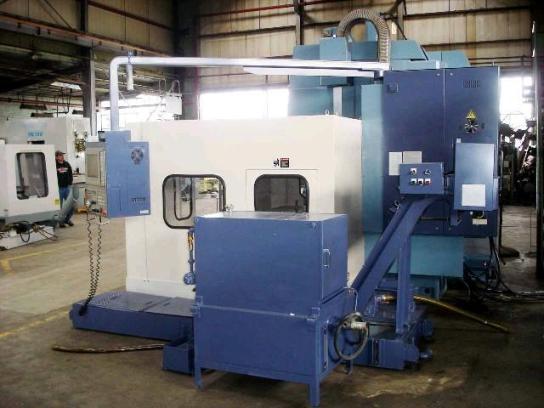

CHIP CONVEYOR

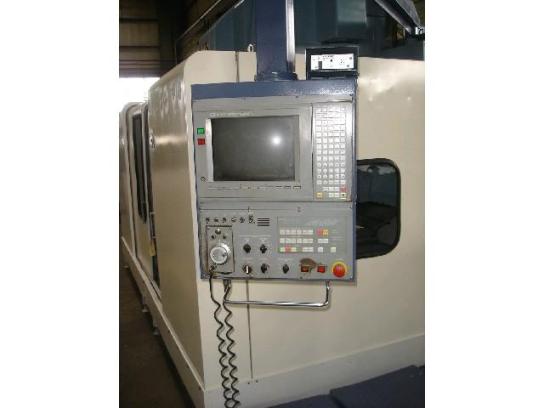

OKK GMC NEOMATIC CNC CONTROL
ABSOLUTE / INCREMENTAL PROGRAMMING
LINEAR / CIRCULAR INTERPOLATION
AUTOMATIC COORDINATE SYSTEM
