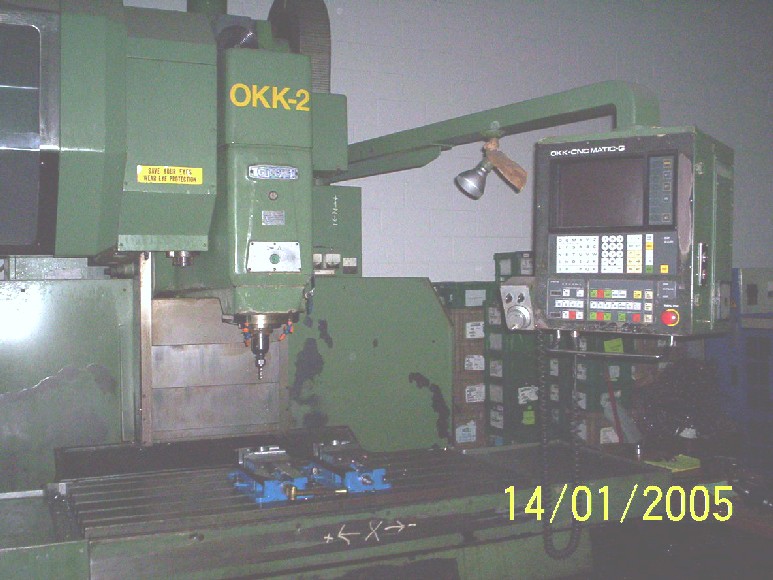

OKK MCV-630, 49.25"-X, 24.75"-Y & Z, 63" x 25-5/8" TBL, CAT 50, MITS M-2 CTRL, 1982

GENERAL SPECIFICATIONS:
MANUFACTURER OKK
MODEL MCV-630
NEW (APPROX.) 1982

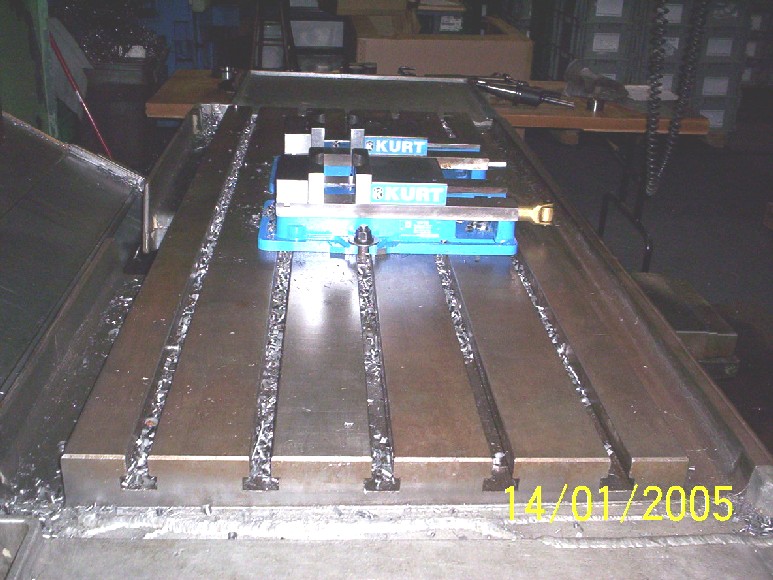

TABLE SIZE 63" x 25-5/8"
X-TRAVEL 49.25"
Y-TRAVEL 24.75"
Z-TRAVEL 24.75"
SPINDLE SPEED 25-3500 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 20/15 HP
TABLE CAPACITY 3300 LBS
WEIGHT (APPROX.) 24,200 LBS.
DIMENSIONS (APPROX.) 162" x 155"

EQUIPPED WITH:

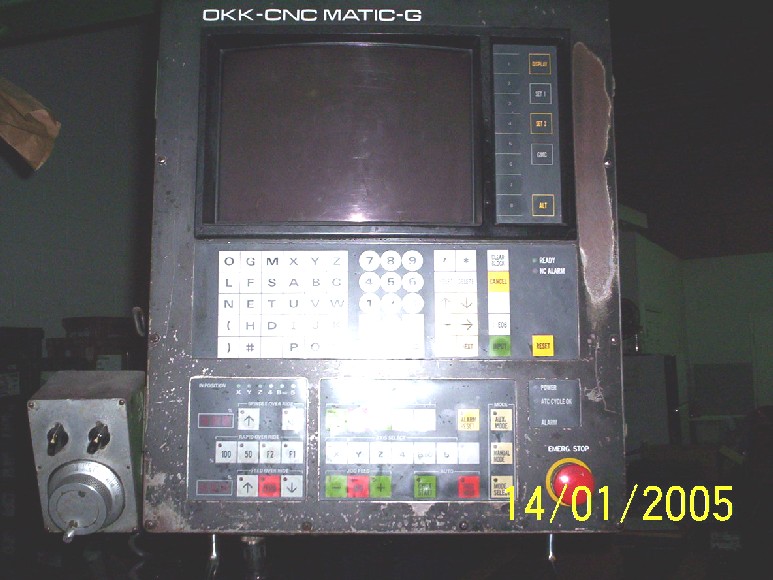

MITS M-2 CONTROL

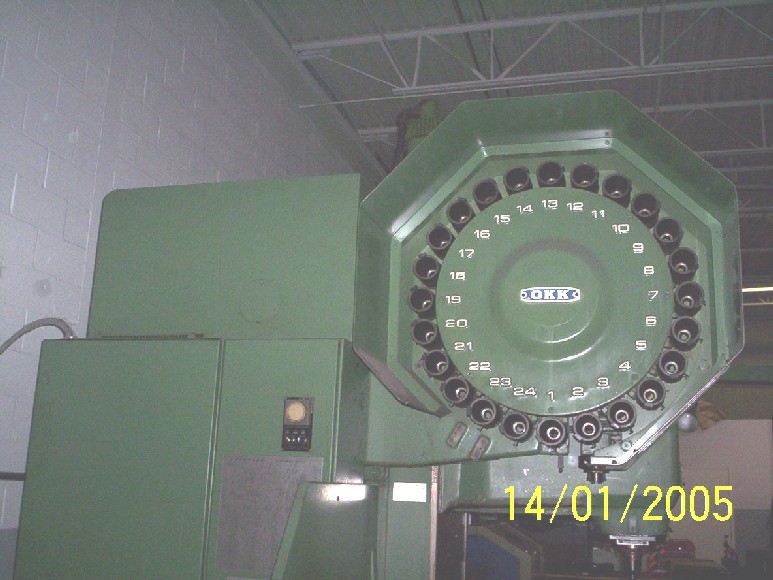

28 TOOL AUTO TOOL CHANGER
HIGH PRESSURE COOLANT
HYDRUALIC OIL COOLING UNIT
6-CAT 50 TOOL HOLDERS
