GENERAL SPECIFICATIONS:
MAKE...................... OKK
MODEL..................... MCV 550
SERIAL NUMBER............. 270
AGE (YEAR)................ 1992
MFG. NUMBER............... MA 49206
TRAVEL (X)................ 41.34"
TRAVEL (Y)................ 21.65"
TRAVEL (Z)................ 22.05"

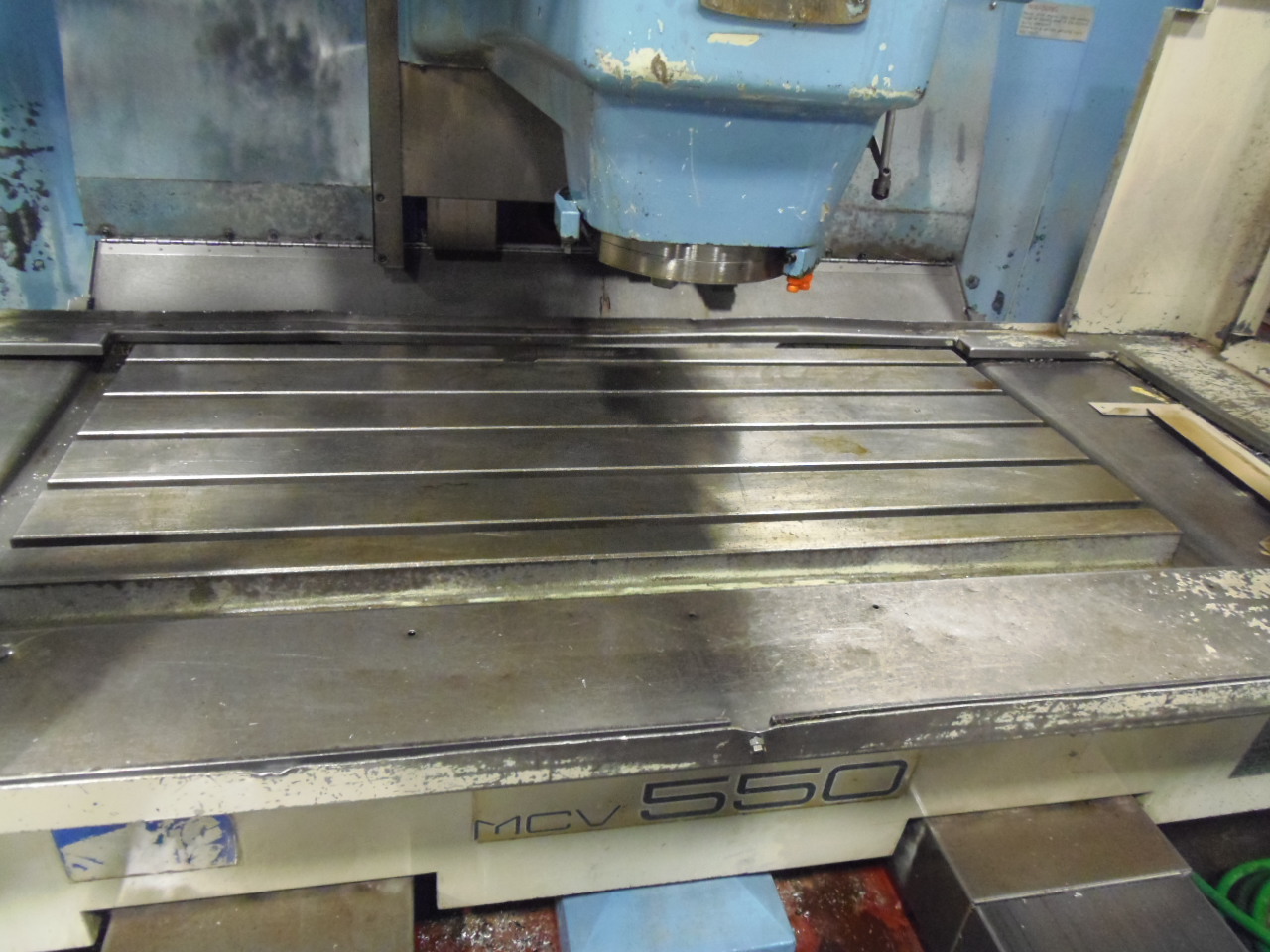

TABLE SIZE................ 51" X 22"
MAX TABLE CAP............. 3,300 LBS
SPINDLE MOTOR............. 25 - 4000 RPM
SPINDLE MOTOR 30 MIN...... 25 HP
SPINDLE MOTOR CONT........ 20 HP

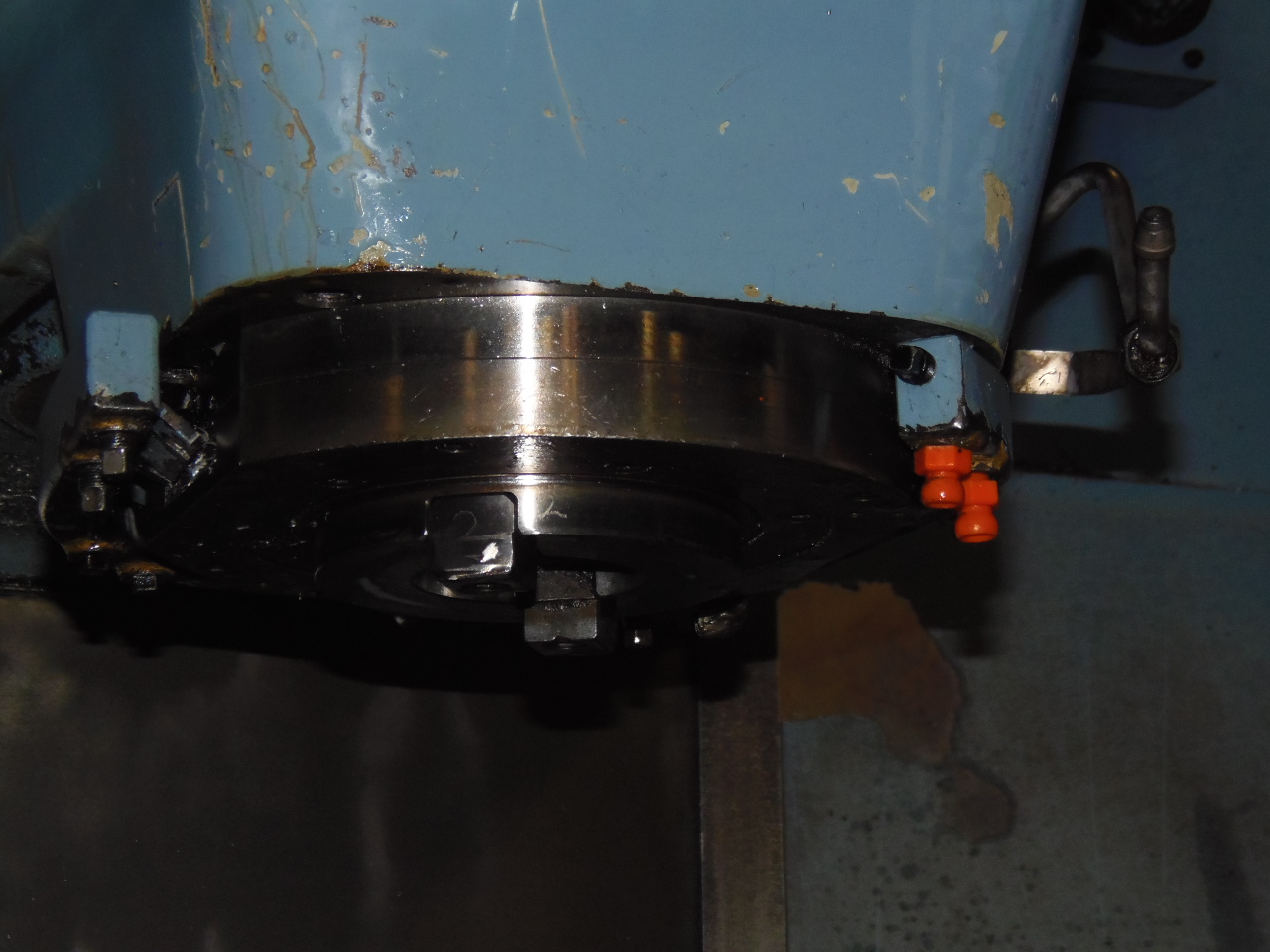

SPINDLE TAPER............. CAT 50

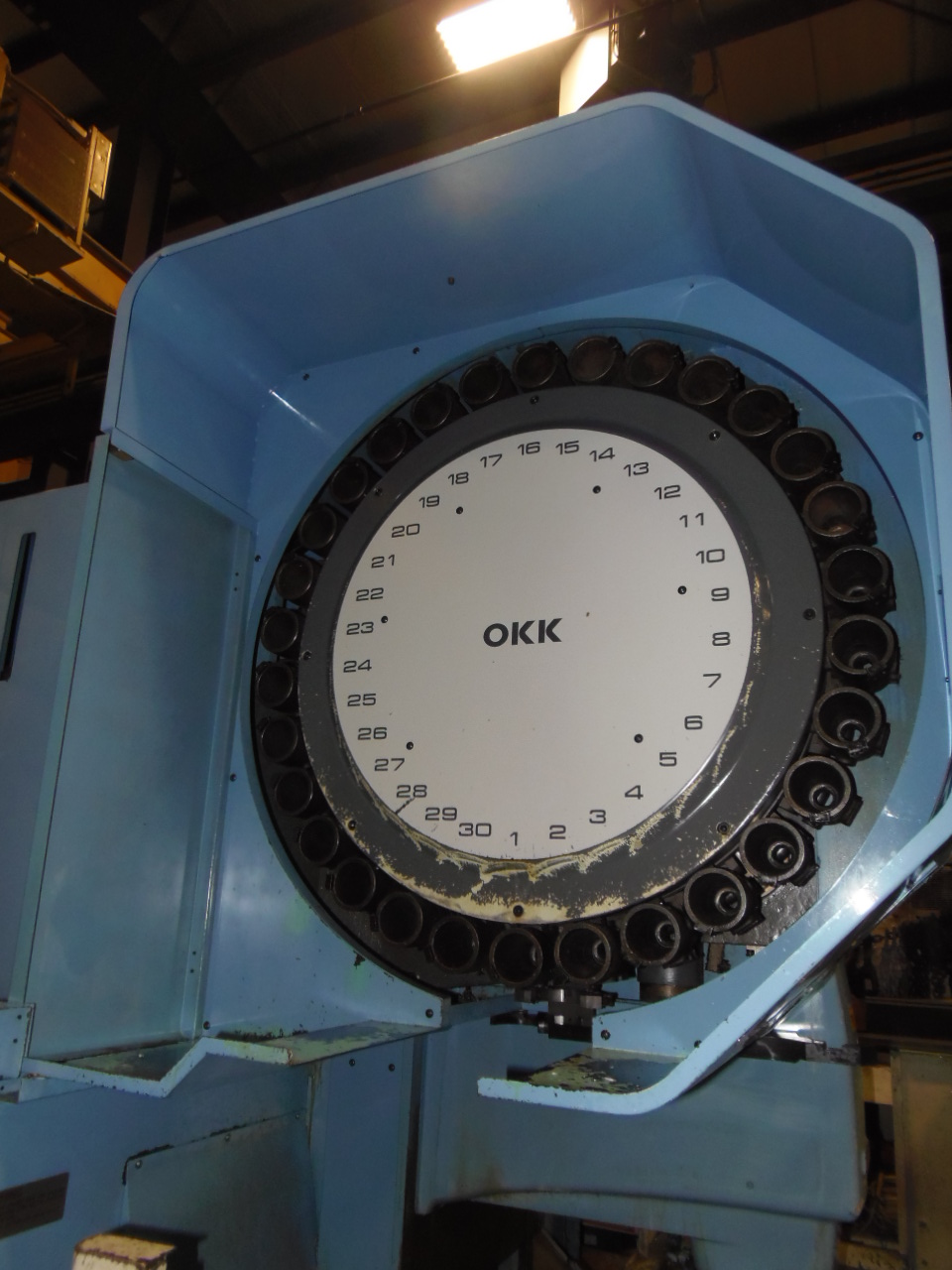

TOOL CHANGER.............. 30 ATC
ELECTRICS................. 200/220 V
.......................... 3 PH
.......................... 50 / 60 HZ
.......................... 44 KVA
DIMENSIONS................ 9' X 12' DEEP
SHIPPING DIMENSIONS....... 8.5' x 13' DEEP x 10.5' H
WEIGHT.................... 22,000 LBS.
EQUIPPED WITH:

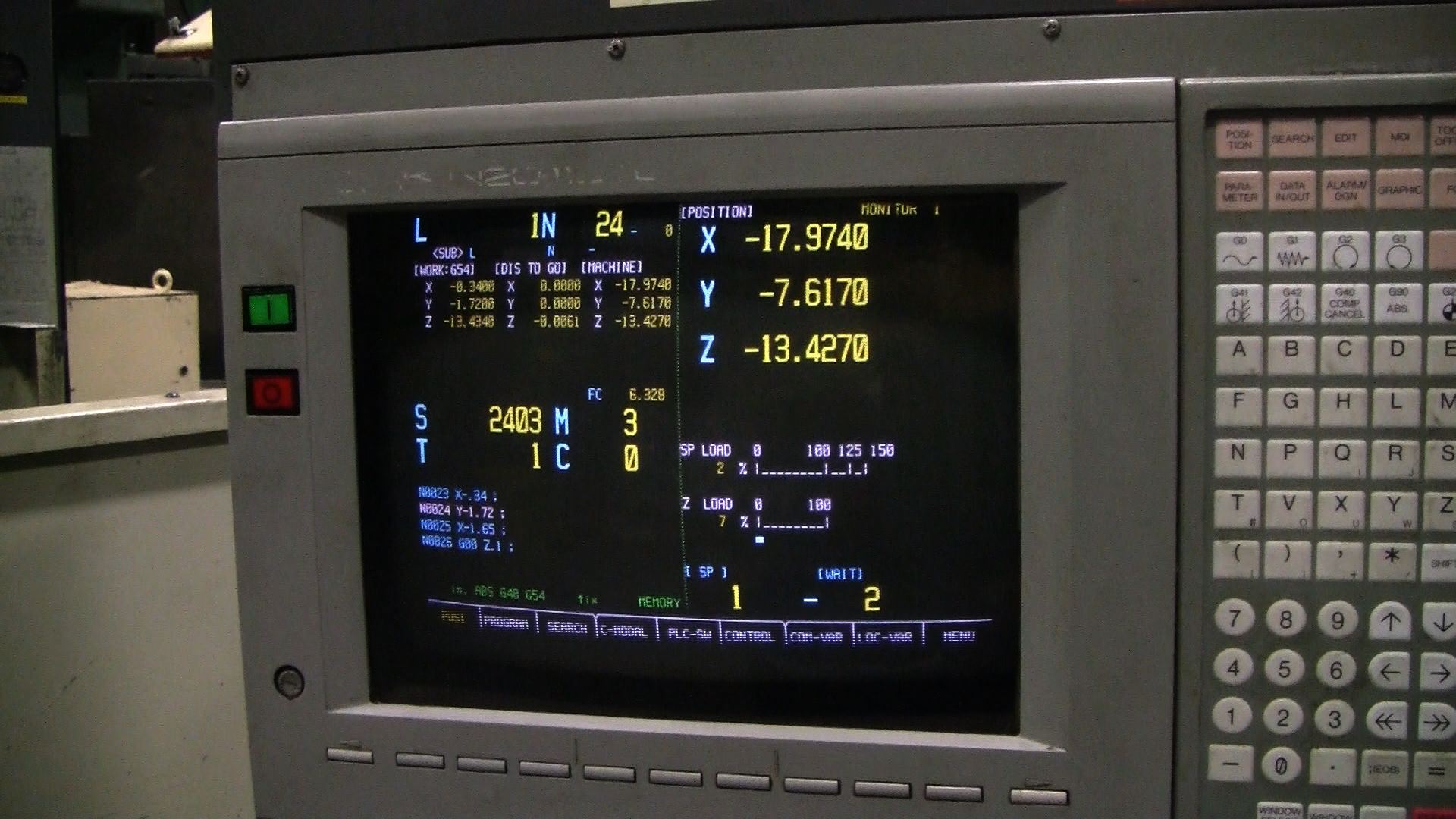

MELDAS 500M CONTROL
COOLANT TANK
SPECIFICATIONS SUBJECT TO VERIFICATION
