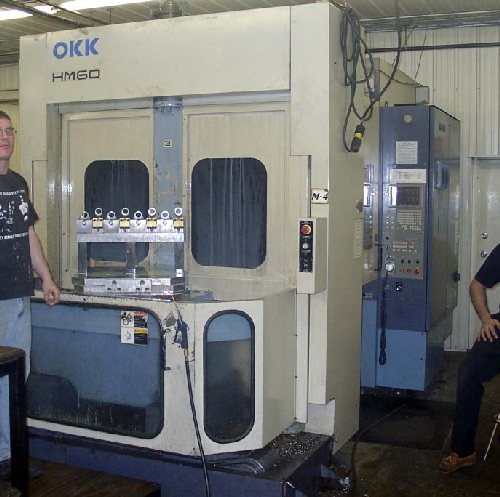

Specifications
Equipped With
GENERAL SPECIFICATIONS:
PALLET SIZE 23.62" x 23.62"
NUMBER OF PALLETS 2
PALLET CHANGE TIME 6 SECONDS
MAXIMUM TABLE LOAD 1,543 LBS
SPINDLE CENTER TO PALLET SURFACE 1.97" - 30.71"
SPINDLE FACE TO PALLET CENTER 5.91" - 37.4"
X AXIS TRAVEL 29.92"
Y AXIS TRAVEL 28.74"
Z AXIS TRAVEL 31.49"
B AXIS INDEXING 1 DEG.
RAPID TRAVERSE RATE X, Y & Z AXES 1574 IPM
CUTTING FEED RATE 0.1 - 1574 IPM
SPINDLE SPEEDS 35 - 8,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR (2 SPEED GEARED) 30 HP AC
TOOL CHANGER CAPACITY 60 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.9 SECONDS
EQUIPPED WITH:
OKK NEOMATIC CNC CONTROL WITH 9" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
HI PRESSURE COOLANT THRU SPINDLE (1000 PSI)
STANDARD COOLANT SYSTEM WITH TANK & PUMP

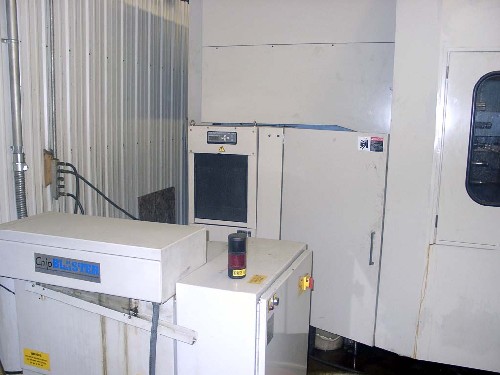

EXTERNAL LIFT-UP TYPE CHIP CONVEYOR, SPINDLE CHILLER
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
