Specifications
Equipped With
GENERAL SPECIFICATIONS:

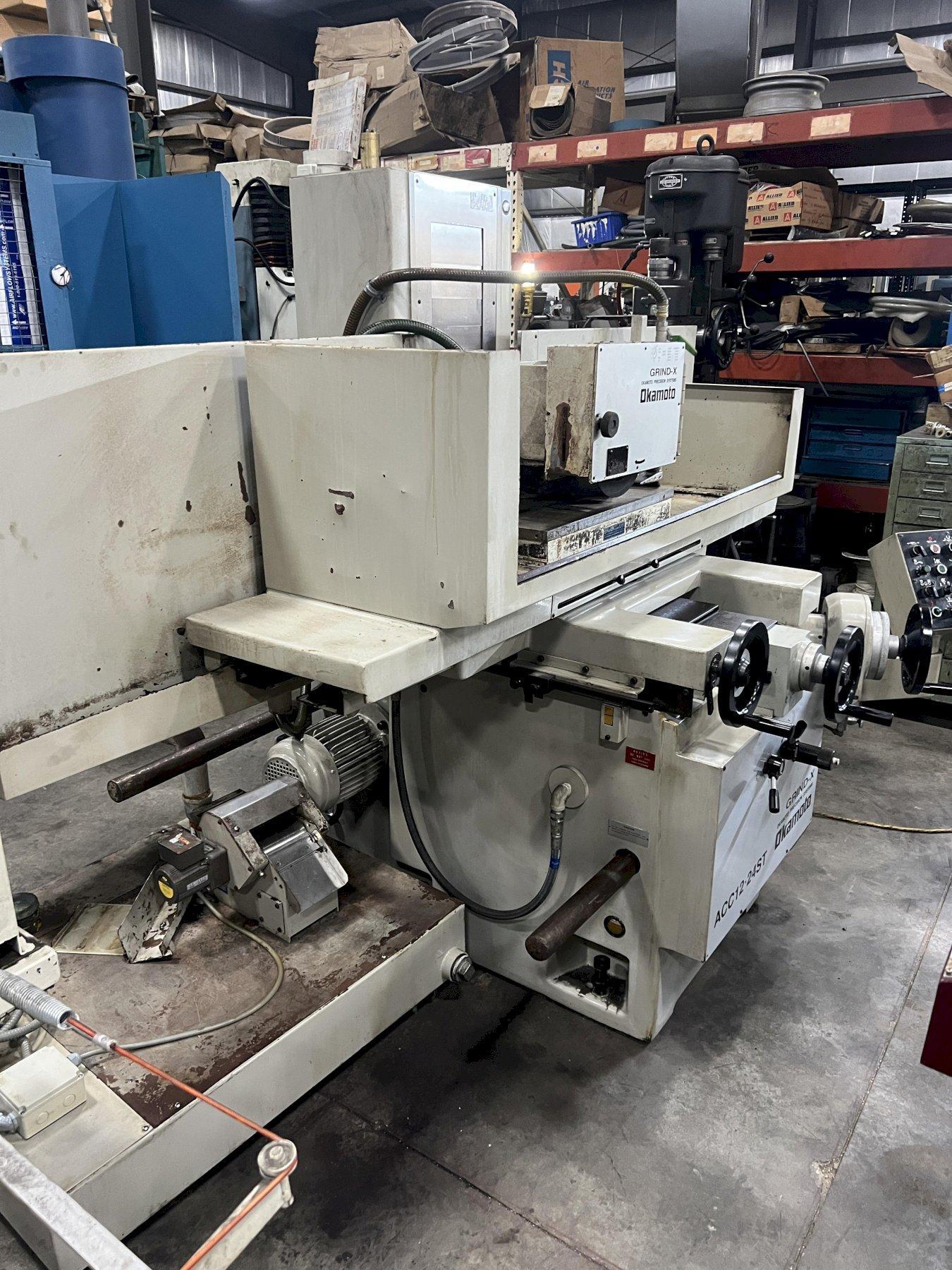

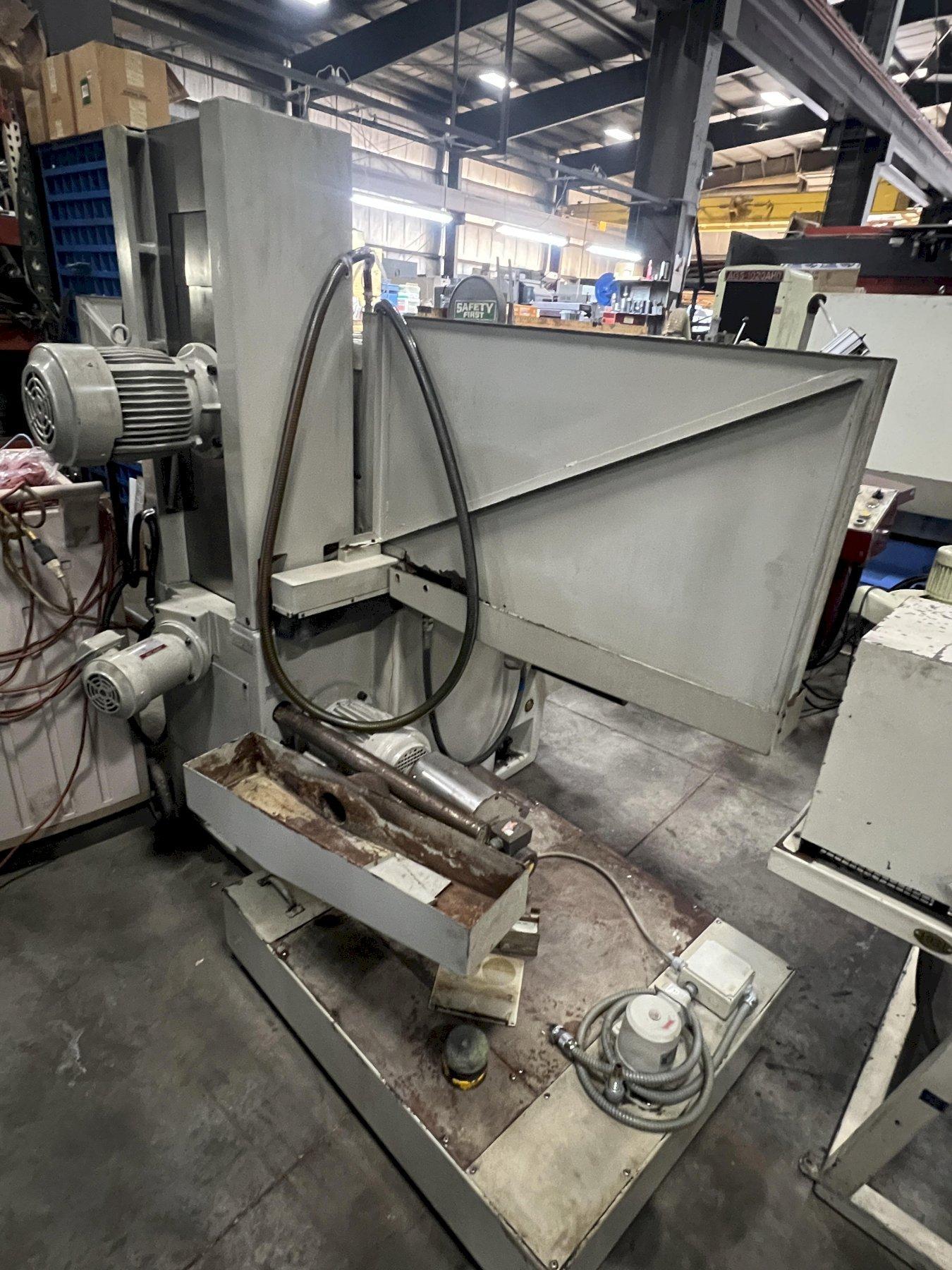

MAKE..................... OKAMOTO

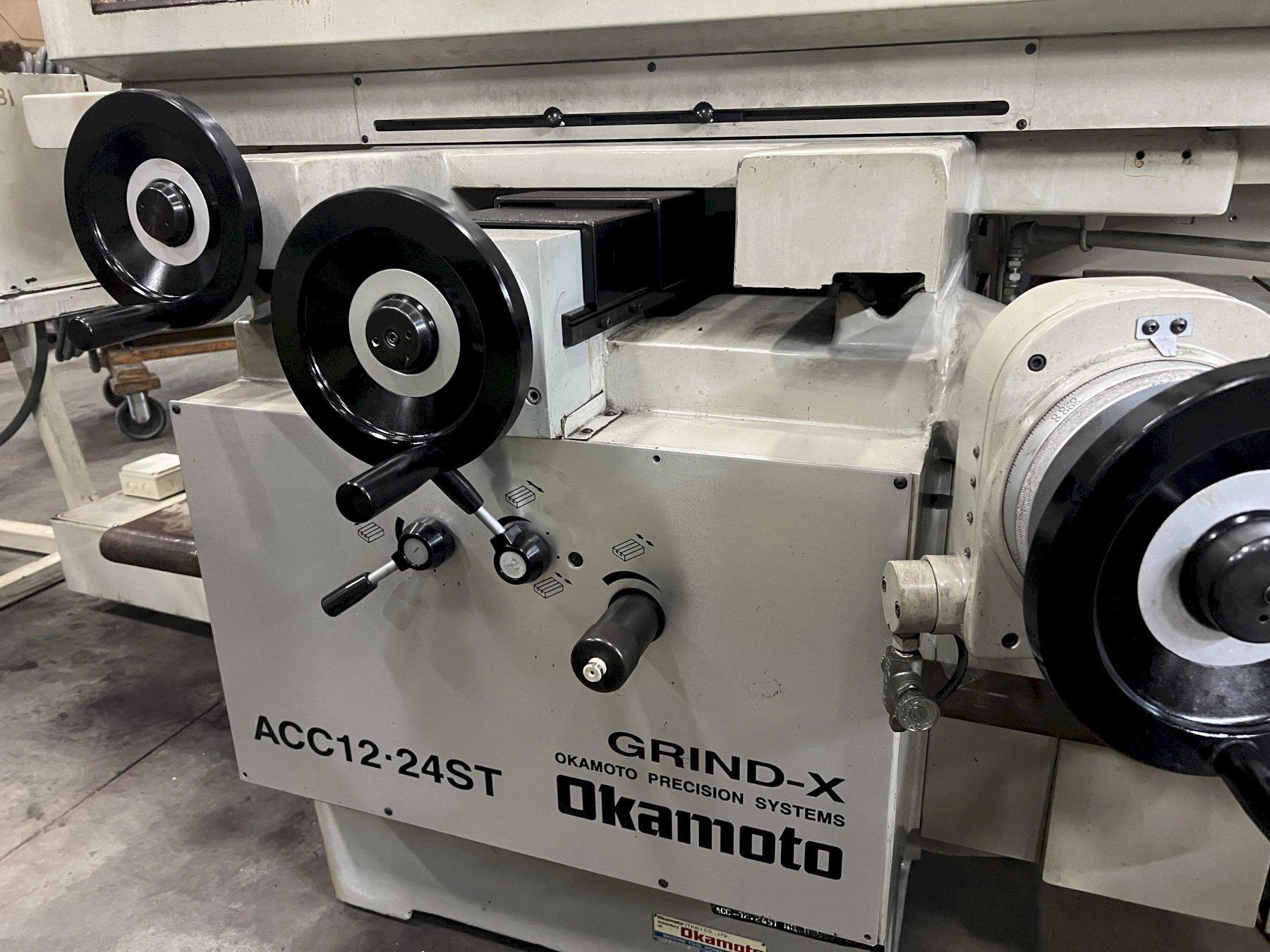

MODEL.................... ACC-12-24ST
SERIAL NUMBER............ 83827
AGE (YEAR)...............
MAX WORKING SIZE......... 12" x 24"
MAX LONGITUDINAL TRAVEL.. 29.5"
MAX CROSS TRAVEL......... 13.6"
MAX HEIGHT UNDER WHEEL... 13.7"
MAX LOAD ON TABLE........ 925 LBS
GRINDING WHEEL SIZE...... 12" X 1.5" X 5"
WHEEL SPEED.............. 1800 RPM

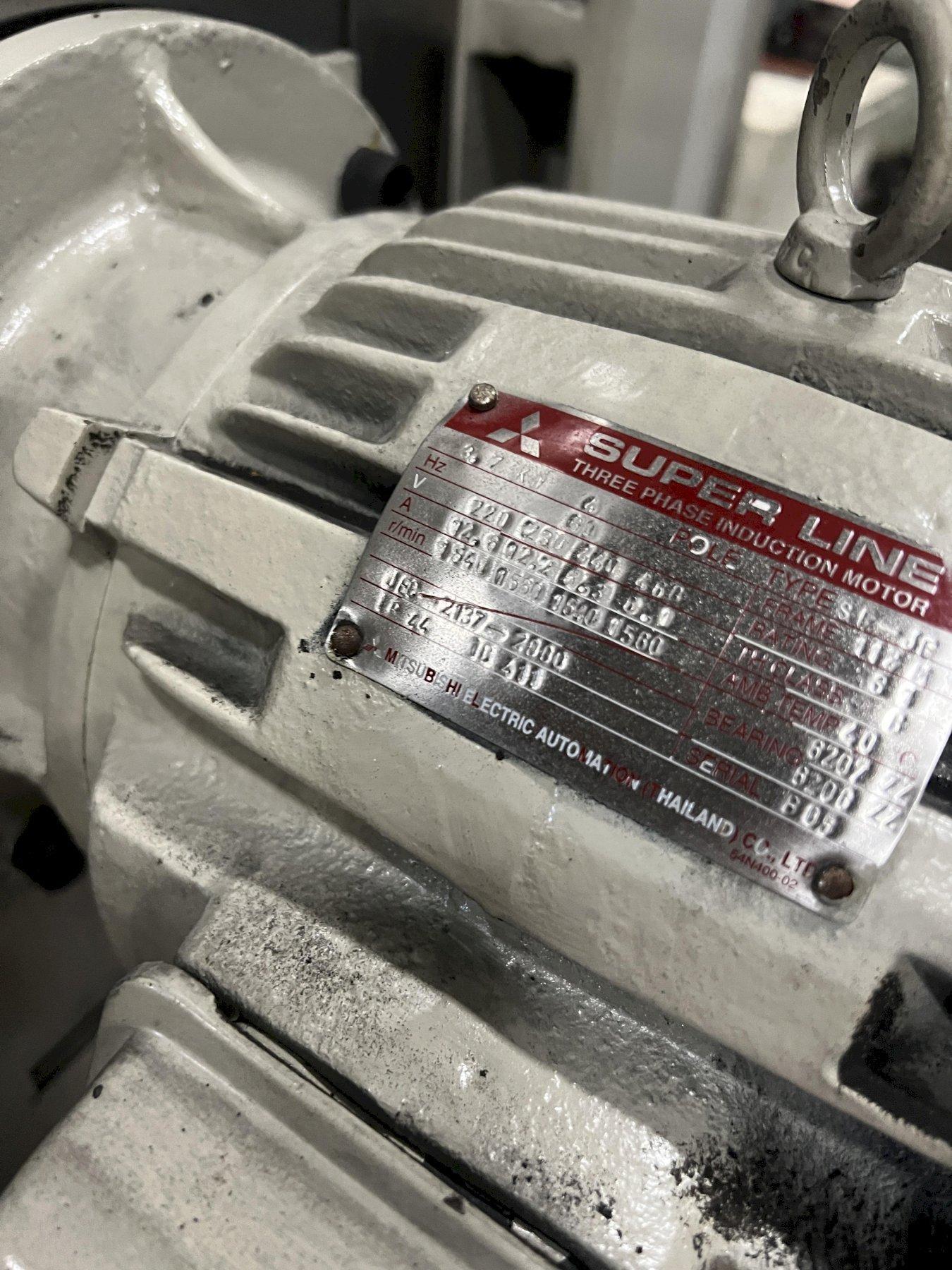

SPINDLE MOTOR............ 5 HP
AUTO LONGITUDINAL FEED... 1 - 82 FPM
AUTO CROSS FEED (INTERM). 0.02" - 0.8"
AUTO INCREMENTAL DOWNFEED 0.0001" - 0.0015"
VERTICAL RAPID FEED...... 16-19 IPM
AUTO SPARK OUT:.......... 0-5 PASSES
DIMENSIONS............... 103" X 74" X 74" H
WEIGHT (APPROX).......... 4,000 LBS

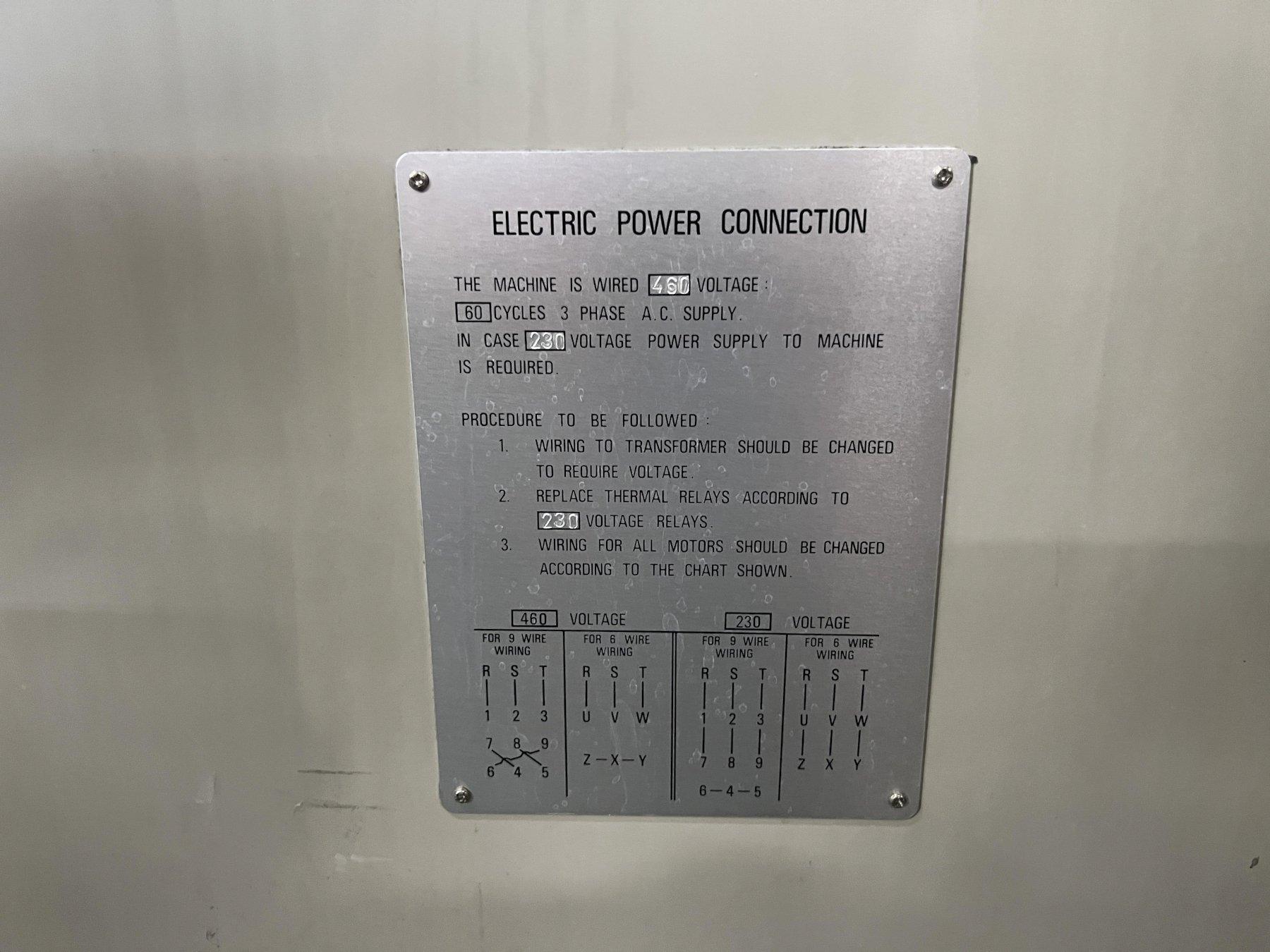

ELECTRICS................ 440 V / 3PH
EQUIPPED WITH:
AUTO INCREMENTAL DOWNFEED

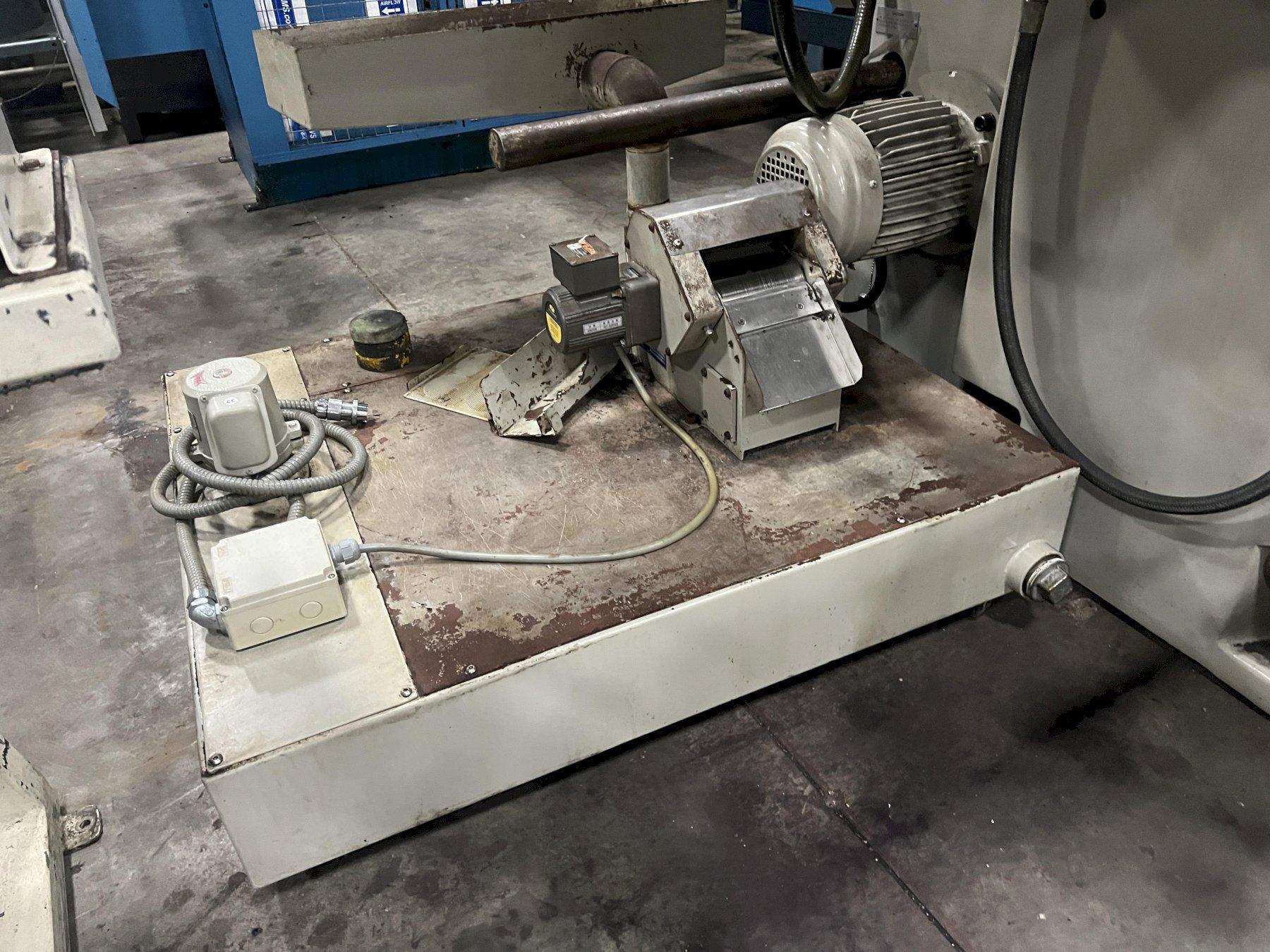

COOLANT TANK
SPECIFICATIONS SUBJECT TO VERIFICATION
