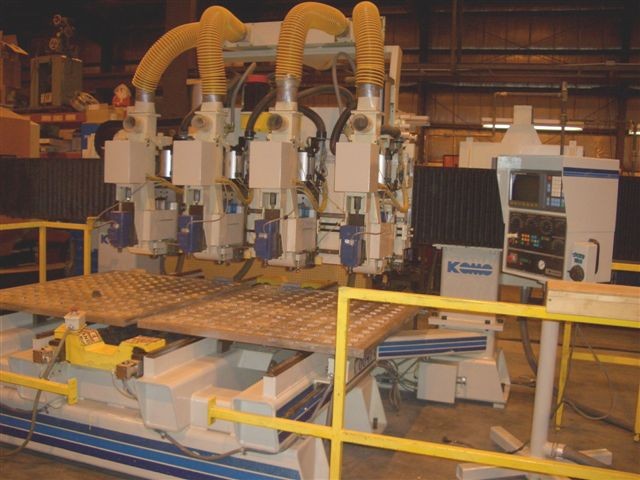

NO. VR804TT KOMO, 4-AXIS, 128" x 66.5" x 8" TRVLS, (2) 48" x 60" x 1.5" TBL, FANUC OM CTRL, 1994

GENERAL SPECIFICATIONS:
MANUFACTURER KOMO
MODEL VR804TT
SERIAL # 1274894
NEW (APPROX.) 1994
TYPE BRIDGE
# OF CONTROL AXIS 4
SIMULTANEOUS CONTROL 3 AXIS
INTERPOLATION CIRCULAR
X-TRAVEL 128"
Y-TRAVEL 66.5"
Z-TRAVEL 8"
X-RAPID 1000 IPM
Y-RAPID 1000 IPM
Z-RAPID 600 IPM
TABLE (2) 48" x 60" x 1.5"
COLUMN CLEARANCE 14.25"
WORK HEIGHT FROM FLOOR 31.5"
TABLE LOAD CAPACITY 500 LBS.
SPINDLE MOTORS (4) 10 HP
SPINDEL SPEED 7000 - 18,000 RPM
COLLECT SIZE UP TO 1"
SPINDLE SPACING 9" - 22"
DIMENSIONS (APPROX.) 82"H x 116"D x 232"W
WEIGHT (APPROX.) 22,000 LBS.

EQUIPPED WITH:
FANUC 0M CONTROL

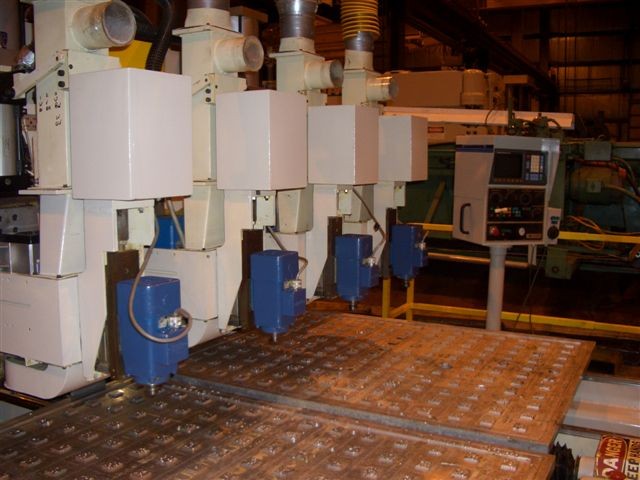

(4) 3HP PIGGYBACK ROUTER SPDLS, 7K-21K RPM, 1/8"-1/2" COLLET
(4) SPINDLE HEADS
