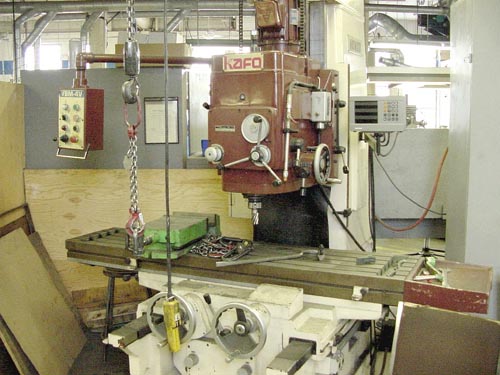

No. VBM-4V KAFO, 17.5" x 74.5" TBL, 50 TAPER, 7.5 HP, 1500 RPM, PWR FDS, DRO

GENERAL SPECIFICATIONS:
MODEL VBM-4V
NEW APPROXIMATELY 1988
TABLE SIZE 17.5" X 74.5"
TRAVELS: LONGITUDINAL 47"
CROSS 17.5"
VERTICAL 21.5"
SPINDLE MOTOR 7.5 HP
SPINDLE SPEED RANGE (12) 45-1500 RPM
SPINDLE TAPER 50
FEED RANGES: TABLE 1-1/2 - 34-7/16 IPM
CROSS 1-1/8 - 34-7/16 IPM
SPINDLE .002 - .008 IPR
DIMENSIONS (APPROX.) 7' X 7' X 8.5'
WEIGHT (APPROX.) 11,460 LBS.

EQUIPPED WITH:
3-AXIS DIGITAL READOUT
POWER FEEDS
BOX WAYS
PENDENT CONTROL
