Specifications
Equipped With
GENERAL SPECIFICATIONS:

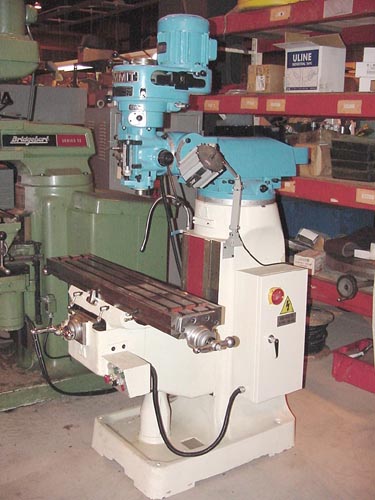

MODEL V-242B
HEAD: MOTOR SIZE 2 HP
# OF SPINDLE SPEEDS 16
SPEED RANGE 160-5440 RPM
SPINDLE TAPER R-8
SPINDLE TRAVEL 5"
SPINDEL FEED RANGE .0015/.003/.06 IPR
HEAD MOVEMENT SIDE TO SIDE +/- 90 DEGREES
HEAD MOVEMENT FRONT TO BACK +/- 45 DEGREES
TABLE: SIZE 9"Wx42"Lx3-1/8"H
LONGITUDINAL FEED 30"
OVERARM ADJUSTMENT 24"
SPINDLE NOSE TO TABLE 0 - 18-1/2"
WEIGHT 2,200 LBS.
EQUIPPED WITH:
HEAVY CAST IRON CONSTRUCTION
HEAVY BOX SADDLE
DOUBLE TABLE LOCKS
WIPERS FOR SADDLE AND COLUMN
RACK AND PINION RAM MOVEMENT
KNUCKLE JOINT HEAD MOUNT
BUILT IN COOLANT SYSTEM
ONE SHOT LUBRICATION
ADJUSTABLE CROSS SLIDE STOPS
HALOGEN WORK LIGHT
LOW VOLTAGE CONTROLS
ACCESSORIES: OIL GUN, CLAMPING KIT, SCREW DRIVERS, ANCHOR BOLTS, DRAW BARS, OPEN END WRENCH SET, BOX END WRENCH SET, HEX KEY WRENCH SET AND (6) R-8 COLLETS
