Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER PFAUTER
MODEL PA300
SERIAL 24474
DIAMETER OF WORK TABLE 11.811"
DIAMETER OF TABLE BORE 3.149"
DIAMETER 6.30"
LENGTH 8.60"
DIAMETER OF HOB ARBORS 1.25" & 2"
CNTR DIST. BETWEEN HOB & PIECE 1.20"MIN./10.40"MAX.
MAX. PART CENTERED 30"
MAX. HOB DISPLACEMENT 6.70"
HOB SPEED (ADJ. IN STEPS) 125 - 250 RPM
AXIAL FEED (INFINITELY VARIABLE) .04 - .27 IN/WR
ELECTRICS 440-480 VOLTS
DIMENSIONS (APPROX.) 226" x 139" x 117"
WEIGHT (APPROX.) 17,200 LBS.
EQUIPPED WITH
TWO CUT CYCLE DIFFERENTIAL

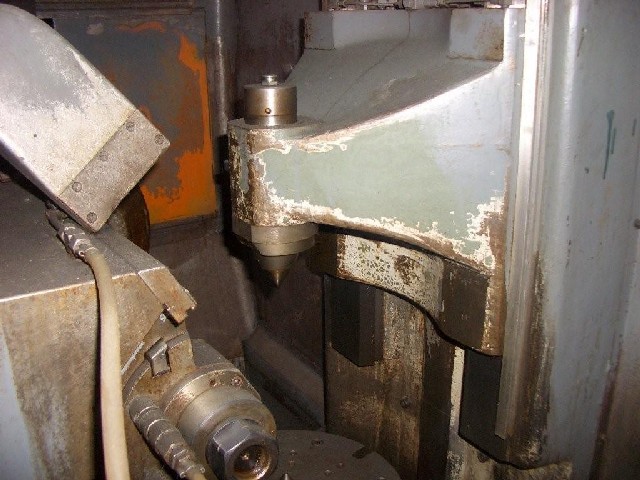

TAILSTOCK W/CUTTER 460-3-60 ELECTRICS
HOB ARBOR COOLANT SYSTEM

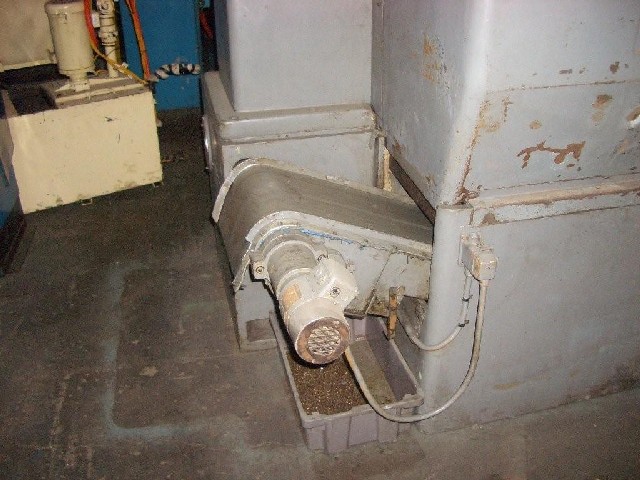

MAGNETIC CHIP CONVEYOR

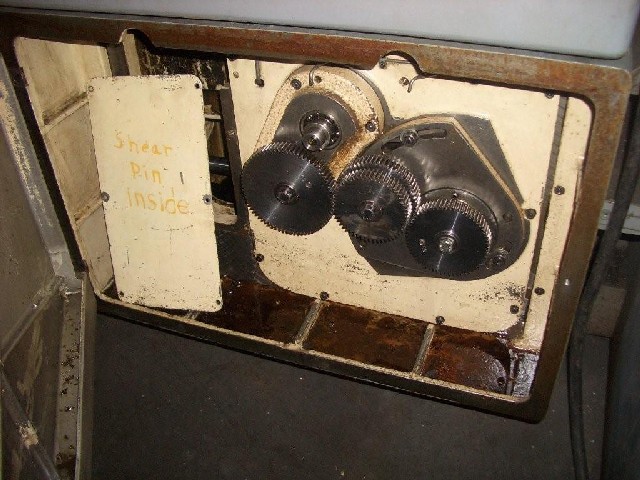

COMPLETE SET OF CHANGE GEARS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
