Specifications
Equipped With
GENERAL SPECIFCIATIONS:

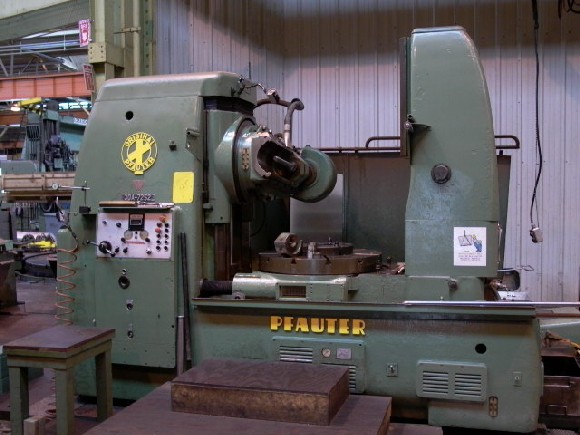

MANUFACTURER........................... PFAUTER
MODEL.................................. P1250
NEW APPROXIMATELY...................... 1960
MAX. WORK DIAMETER..................... 49"
MAX. PITCH IN STEEL.................... 2 DP
MAX. FACE WIDITH:
UP TO HELIX ANGLE 30 DEG............ 23"
AT HELIX ANGLE 45 DEG............... 16-1/2"
AT HELIX ANGLE 60 DEG............... 11-1/2"
MIN. # OF TEETH........................ 12
DIST. C/L OF WORKPIECE TO C/L
OF HOB.............................. 2-1/4" - 29-1/2"
DIA. OF WORKTABLE...................... 37-3/8"
DIA. OF TABLE BORE..................... 7-7/8"
MAX. HOB DIAMETER...................... 8-3/4"
MAX. HOB LENGTH........................ 10-1/4"
MAX. HOB SHIFTING...................... 9-1/2"
HOB SPEEDS (INFINITELY VARIABLE)....... 32 - 200 RPM
FEED RANGES (INFINITELY VARIABLE):
AXIAL FEEDS......................... 0.012 - 0.240 IPR
RADIAL FEEDS........................ 0.0035 - 0.071 IPR
TANGENTIAL FEEDS.................... 0.0035 - 0.066 IPR
FLOOR SPACE (APPROX.).................. 193"L x 117"W x 100"H
WEIGHT (APPROX.)....................... 28,000 LBS.
MAIN DRIVE MOTOR....................... 15 HP
EQUIPPED WITH:
DIFFERENTIAL
INFEED

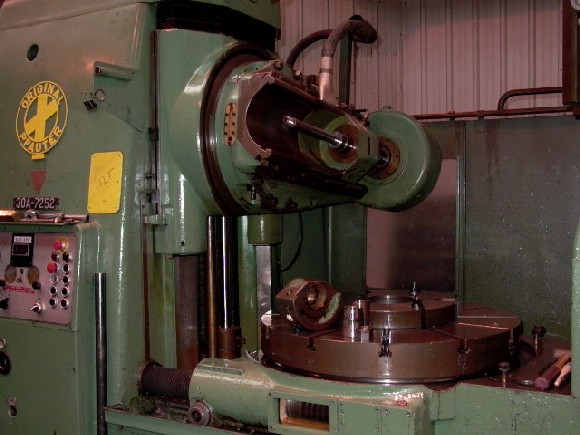

UNIVERSAL HOBHEAD
DIAGONAL HOBBING
AUTOMATIC WORK CYCLES
AUTOMATIC LUBRICATION
ONE HOB ARBOR
OUTER SUPPORT LESS TAILSTOCK CASTING
TABLE RAPID ROTATION FOR TRUING

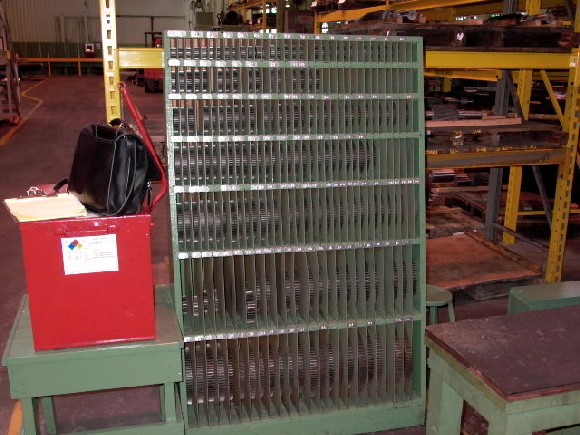

ASSORTMENT OF MISC. CHANGE GEARS
P.I.V. DRIVE MOTOR 440
HYDRAULIC PUMP MOTOR 1 HP
COOLANT PUMP MOTOR 1-1/2 HP
RADIAL RAPID TRAVERSE MOTOR 3 HP
AXIAL AND TANGENTIAL RAPID TRAVERSE MOTOR
