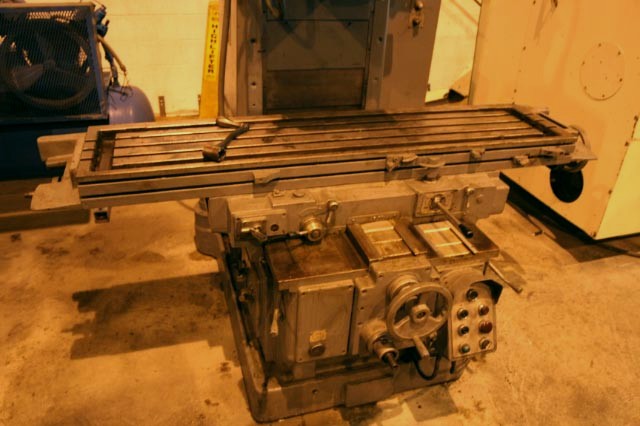

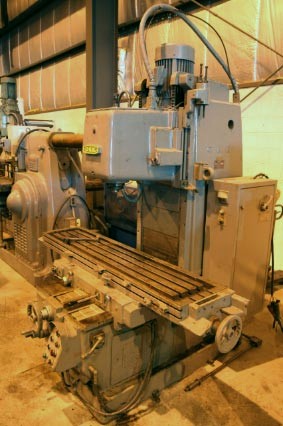

No. MH-3VII, OKK, BED TYPE, 15" x 65" TBL, MONO-LEVER, 50 TAPER, 10 HP, 1975

GENERAL SPECIFICATIONS:
SERIAL 837
NEW APPROXIMATELY 1975
SIZE #3
TABLE SIZE 15" X 65"
MAX. LONGITUDINAL TRAVEL 36-1/4"
MAX. SADDLE CROSS TRAVEL 13-3/4"
TABLE FEED (12) 6/16"-69 IPM
POWER RAPID TRAVERSE VERT. FEED 40% OF ABOVE
HEAD RAPIDS 50 IPM
MAX. VERTICAL TRAVEL 17-3/4"
SPINDLE MOTOR 10 HP
FEED MOTOR 2 HP
COOLANT PUMP MOTOR 1/6 HP
VOLTAGE 230/460/3/60
RPM RANGE 45-1600 RPM
NET WEIGHT 10,000 LBS

EQUIPPED WITH:
MONO LEVER CONTROL
CLIMB MILL
BED TYPE DESIGN
AUTOMATIC CYCLES
