GENERAL SPECIFICATIONS:

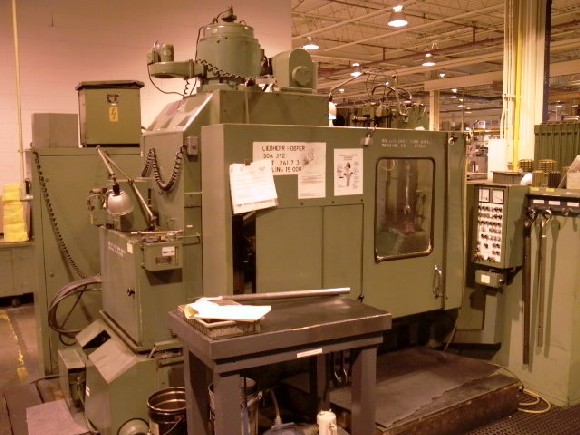

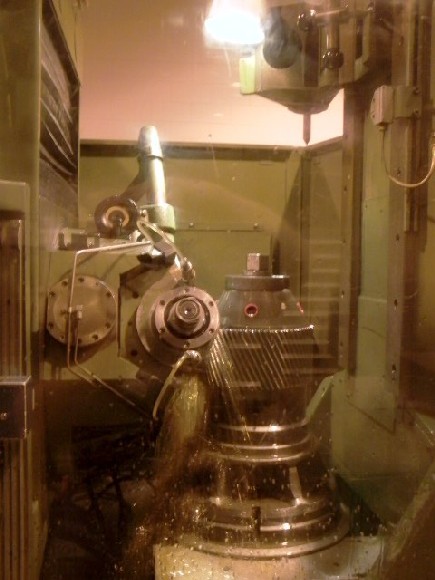

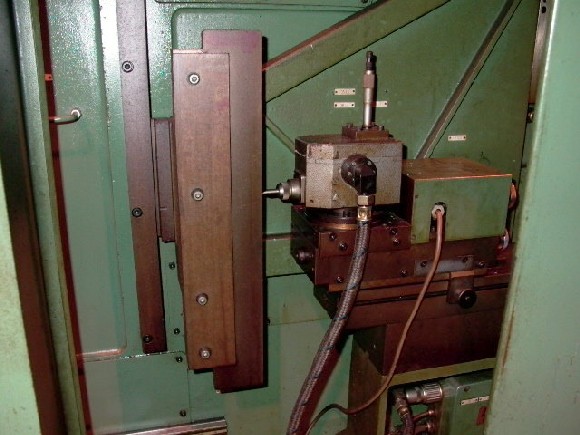

MANUFACTURER.......................... LIEBHERR
MODEL................................. L402
NEW APPROXIMATELY..................... 1981
MAX. WORKPIECE DIA.................... 16"
MAX. PITCH............................ 3.175 DP
MAX. TRAVEL OF HOB SLIDE.............. 11.81"
MAX. DIST. FROM FACE OF
TAILSTOCK TO FACE OF WORK TABLE.... 27.56"
DIST. BETWEEN C/L HOB & C/L WORKPIECE. 1.18" - 11.81"
MIN. DIST. C/O HOB SPINDLE
ABOVE WORK TABLE................... 6.89"
WORK TABLE DIA........................ 16.53"
INDEX WORMGEAR DIA.................... 15.91"
DIA. OF BORE IN WORK TABLE............ 3.9370"
MAX. HOB DIMENSIONS (DIAMETER)........ 7.56"
MAX. HOB DIMENSIONS (LENGTH).......... 9.84"
HOB SHIFT TRAVEL...................... 0.0206" - 7.87"
HOB SPINDLE TAPER..................... MK5
HOB SPEEDS (INFINITELY VARIABLE)...... 40 - 320 RPM
FEED RANGES (INFINITELY VARIABLE):
AXIAL.............................. 0.015 - 0.354 IPR
RADIAL............................. 0.028 - 0.53 IPM
TANGENTIAL......................... 0.003 - 0.063 IPR
FLOOR SPACE (APPROX.)................. 100"L x 60"W x 100"H
WEIGHT (APPROX.)...................... 21,000 LBS
EQUIPPED WITH:
CROWNING
DIFFERENTIAL
ASSORTMENT OF MISCELLANEOUS CHANGE GEARS
MISCELLANEOUS HOB ARBORS
MAIN DRIVE MOTOR 11.4 HP AND ELECTRICAL CONTROLS
(CONNECTED LOAD OF ALL MOTORS APPROX. 18 KVA)
