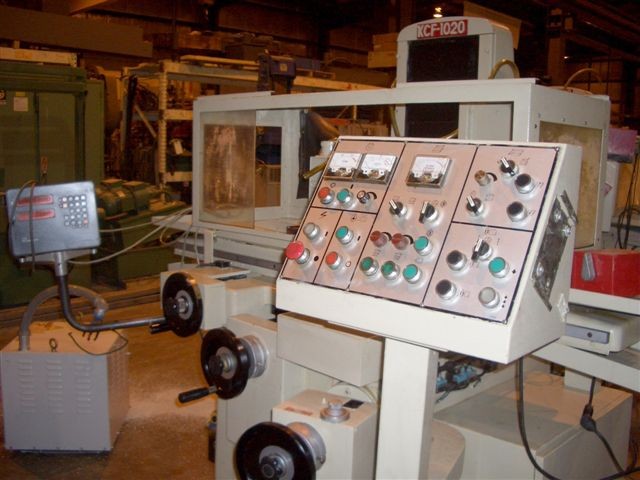

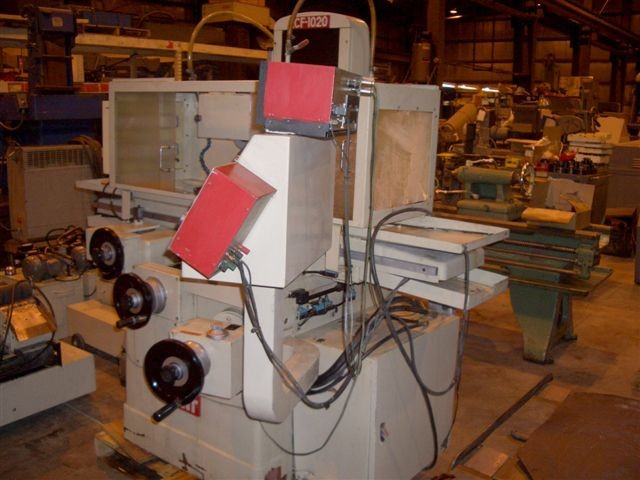

NO. KCF-1020AHD KENT, 19-11/16" x 9-13/16" TBL, 4000 RPM, 1985, 23-1/2" x 11" TRVL

GENERAL SPECIFICATIONS:
MANUFACTURER KENT
MODEL KCF-1020AHD
SERIAL # 85120603
NEW (APPROX.) 1985
TABLE WORKING SURFACE 19-11/16" x 9-13/16"
TABLE TRAVEL (MAX.) 23-1/2" x 11"
DIST. BETWEEN TBL & SPDL CNTR 19-11/16"
T-SLOT 9/16" x 1
WHEEL DIMENSIONS 8"OD x 1/4"T x 2"ID
SPINDLE SPEED 500 - 4000 RPM
TABLE SPEED (HYD.) 16-1/2 - 75-1/2 FPM
TABLE SPEED (DC MOTOR) 0 - 4 IPM
VERT. DOWNFEED ON HANDWHEEL 0.01" (1 REVOLUTION)
VERT. DOWNFEED ON HANDWHEEL 0.0001" (1 GRADUATION)
RAPID ELEVATION (60/50HZ) 6-1/2/5-1/4 IMP
AUTO DOWNFEED INCREMENT 0.0001" - 0.001"
CROSSFEED ON HANDWHEEL 0.20" (1 REVOLUTION)
CROSSFEED ON HANDWHEEL 0.001" (1 GARDUATION)
RAPID CROSSFEED (60/50HZ) 36"/30"
AUTO CROSSFEED INCREMENT 0.0005"-0.5"
SPINDLE MOTOR 5 HP x 2P
HYDRAULIC MOTOR 1 HP x 4P
ELEVATION MOTOR 1/2 HP x 6P
CROSSFEED MOTOR 1/2 HP x 6P
TABLE DRIVE DC MOTOR INPUT 60 WATTS

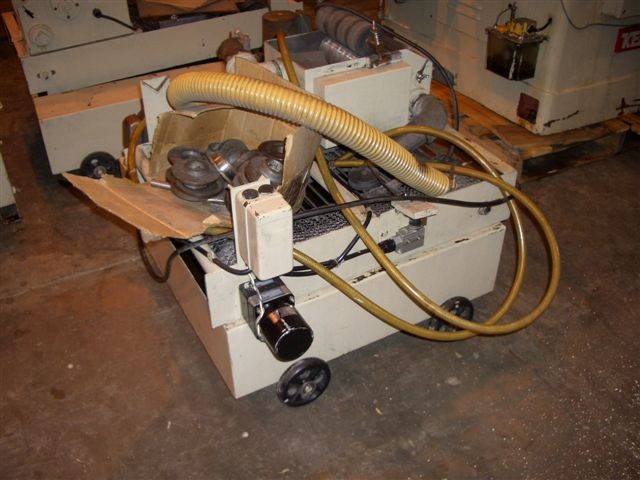

DUST COLLECTOR MOTOR 1/2 HP x 2P
COOLANT PUMP 1/4 HP x 2P
WEIGHT (APPROX.) 4,070 LBS.
DIMENTIONS (APPROX.) 89-1/2" x 70-1/2" x 83-1/2" TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
