GENERAL SPECIFICATIONS:

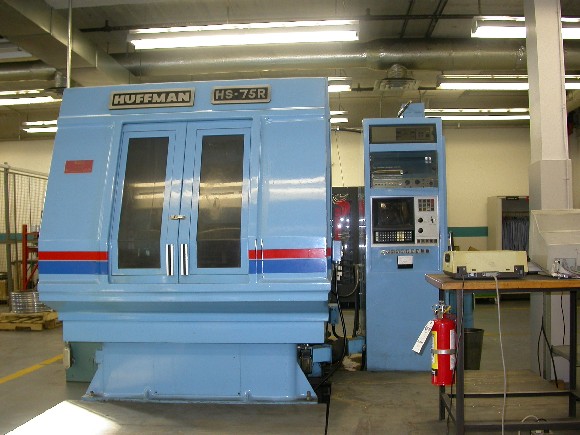

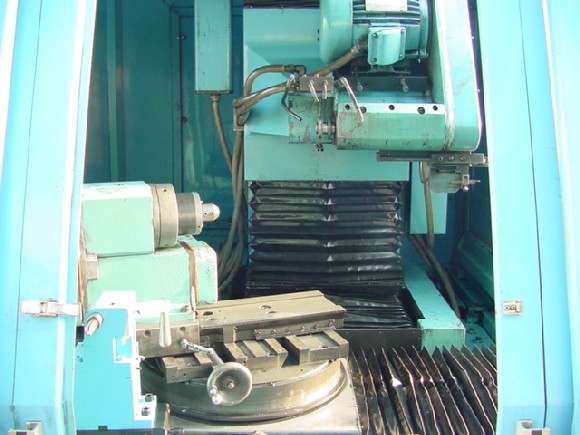

MANUFACTURER HUFFMAN
MODEL HS-75R
SERIAL # HB060386-259
END MILL SHANK DIA. MAX. 2-1/2"
END MILL SHANK DIA. MIN. 1/4"
MAX. FLUTE LENGTH 8"
MAX. OVERALL LENGTH OF TOOL 10"
MAX. CUTTER DIAMETER 6"
Z SLIDE TRAVEL 12"
Y SLIDE TRAVEL 18"
A-ROTARY AXIS (WORKHEAD SPINDLE) 360 DEG. (ROLLOVER)
RESOLUTION .01 DEG.
X-SLIDE (MAIN BASE SLIDE) 18"
C-ROTATION OF ROTARY TABLE 220 DEG.
U-AXIS (MANUAL) 8"
V-AXIS (MANUAL) 4"
WHEEL SPINDLE SPEED 6000 RPM
WHEEL DIAMETER 6"
WHEELHEAD MOTOR 5 HP
FEED RATES ALL LINEAR AXIS 0 - 200 IPM
FEED RATES ROTARY C-AXIS 700 DEG.,/MIN.
FEED RATES ROTARY A-AXIS 12,00 DEG./MIN.
DIMENSIONS (APPROX.) 127" x 172" x 99"H
WEIGHT (APPROX.) 19,000 LBS.
EQUIPPED WITH:
ALLEN-BRADLEY 5 AXIS CNC CONTROL CAPABLE OF GRINDING NOT ONLY ENDMILLS, BUT MANY OTHER CUTTING TOOLS SUCH AS ARBOR STYLE CUTTERS, REAMERS, MILLING CUTTERS, AND SPECIAL SHAPES INCLUDING BALLNOSE TOOLS.
TAILSTOCK
STEADY REST
COOLANT TANK
