GENERAL SPECIFICAITONS:

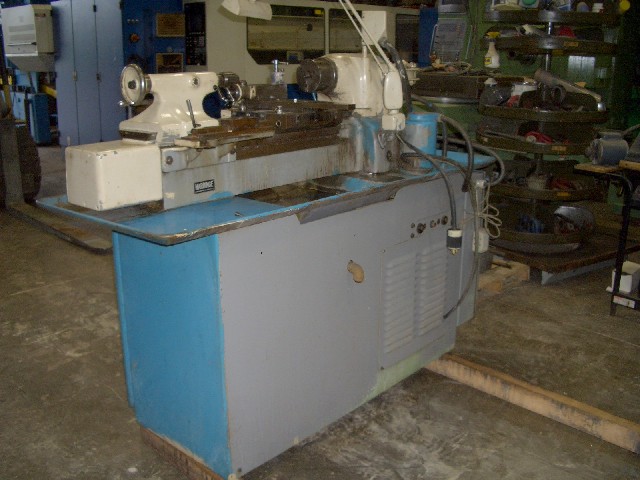

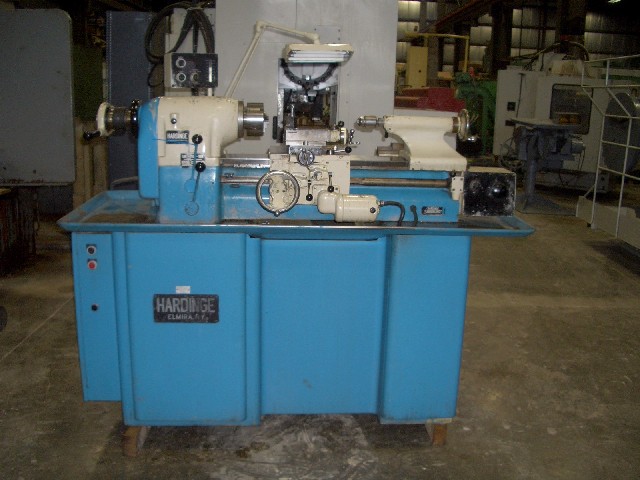

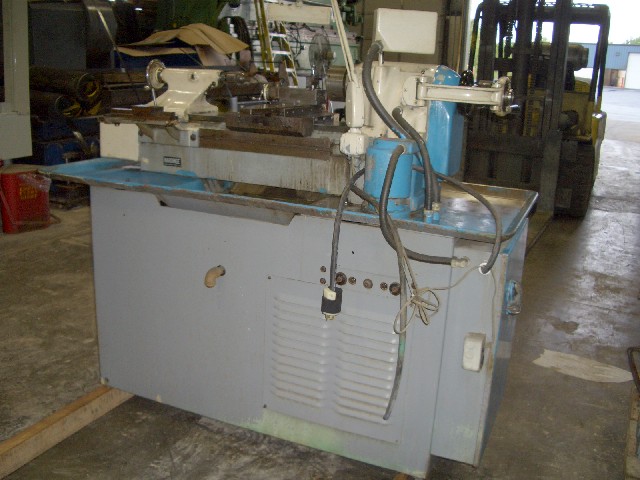

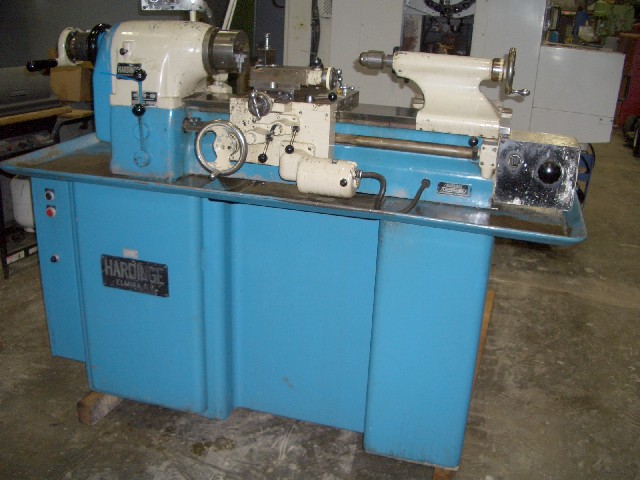

MANUFACTURER HARDINGE
MODEL HLV
SERIAL # HLV-H-1156
NEW (APPROX.) 1965
SWING OVER BED 11"
SWING OVER CROSS SLIDE 6"
SWING OVER CARRIAGE 9"
DISTANCE BETWEEN CENTERS 18"
SPINDLE SPEEDS (VARIABLE) 125 - 3000 RPM
SPINDLE NOSE 4 DEG. TAPER
HOLE THRU SPINDLE 1-1/4"
POWER FEED RANGE (VARIABLE) 3/16 - 7 IPM
TAILSTOCK QUILL TAPER 2 MT
TAILSTOCK QUILL TRAVEL 3-3/4"
MOTOR 1.5 HP
WEIGHT (APPROX.) 2,250 LBS.
DIMENSIONS (APPROX.) 72" x 32" x 73"
EQUIPPED WITH:
5" 3 JAW CHUCK
5" 4 JAW CHUCK
COOLANT SYSTEM
TAPER ATTACHMENT
8 COLLETS
