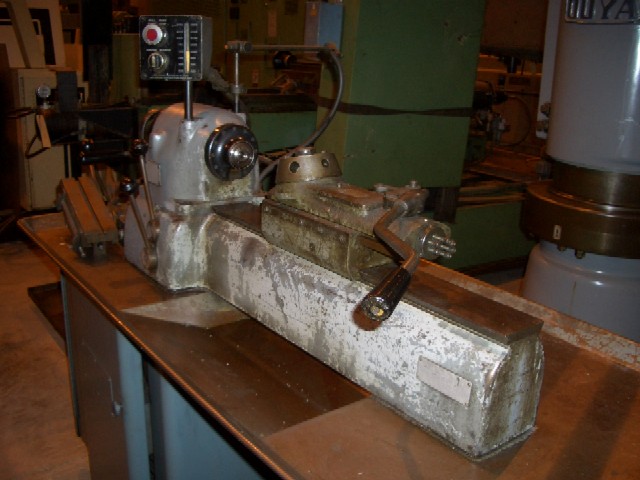

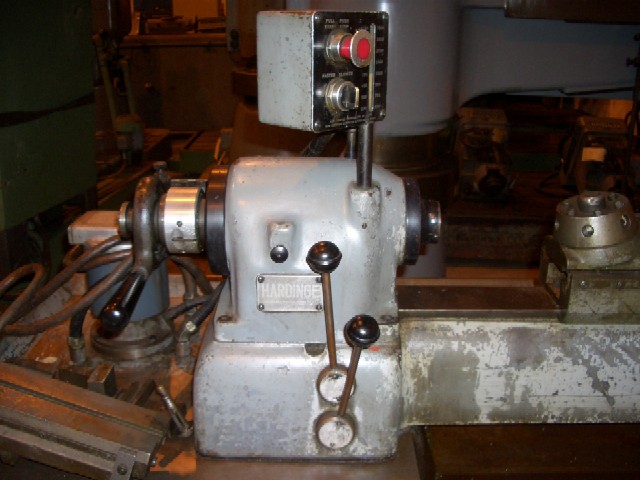

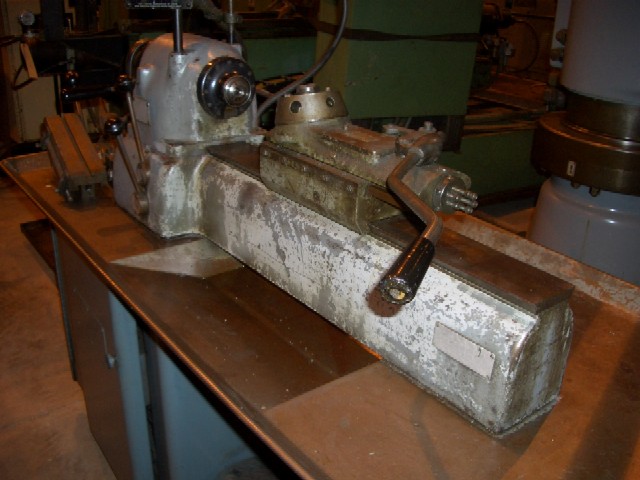

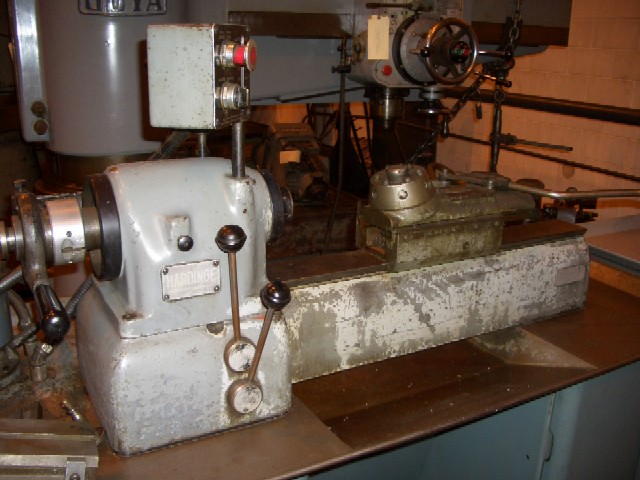

NO. DSM59 HARDINGE, 9" SWING, 4-1/2" CS, 1" BORE, 230-3500 RPM, COOLANT

GENERAL SPECIFICATIONS:
MANUFATURER HARDINGE
MODEL DSM59
SWING OVER BED 9"
SWING OVER CROSS SLIDE 4-1/2"
DISTANCE SPINDLE TO TURRET 3" - 18"
SPINDLE BORE 1" THRU 5C COLLET
SPINDLE MOUNT HARDINGE TAPER
SPINDLE SPEEDS VARIABLE 230 - 3500 RPM
TURRET FEEDS HAND
TURRET TRAVEL 4"
MOTOR 2 SPEED/220V/3PH/60HZ
DIMENSIONS (APPROX.) 36" x 68"
WEIGHT (APPROX.) 1,000 LBS.

EQUIPPED WITH:
LEVER CROSS SLIDE
BED TURRET
5C COLLET CLOSER
COOLANT
