Specifications
Equipped With
GENERAL SPECIFICATIONS:

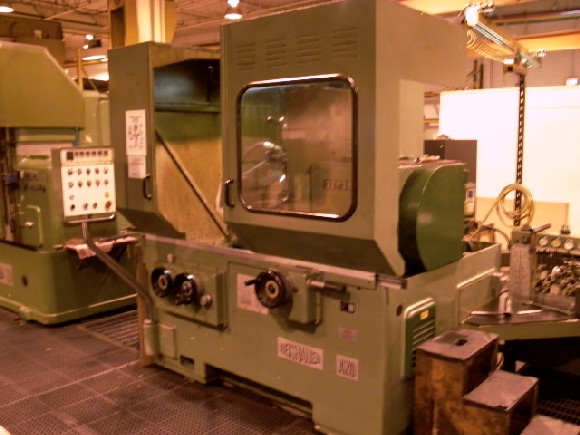

MANUFACTURER........................ REISHAUER
MODEL............................... AZO
NEW APPROXIMATELY................... 1980
MAX. TIP CIRCLE DIA................. 13"
MIN. ROOT DIA....................... 3/8"
PITCH............................... 4 - 48 DP
MAX. HEADSTOCK TRAVEL............... 7.08"
MAX. CLAMPING LENGTH................ 16.5"
MAX. WEIGHT OF WORKPIECE
(INCLUDING FIXTURE).............. 132 LBS
PRESSURE ANGLE...................... 10 - 45 DEG.
MAX. HELIX ANGLE LEFT/RIGHT......... 45 DEG.
GRINDING WHEEL DIMENSIONS:
DIAMETER......................... 10.6" - 13.8"
WIDTH............................ 2.4" - 4.0"
MAX. GRINDING SPEED................. 1900 RPM
FEEDS INFINITELY VARIABLE........... 0.016 - 0.125 IPR
INFEEDS PER STROKE.................. 0.0004" - 0.0032"
WEIGHT (APPROX.).................... 11,000 LBS
EQUIPPED WITH:
CROWNING
LARGE ASSORTMENT OF CHANGE GEARS
FULL SPLASH CABINET
COOLANT PUMP & TANK

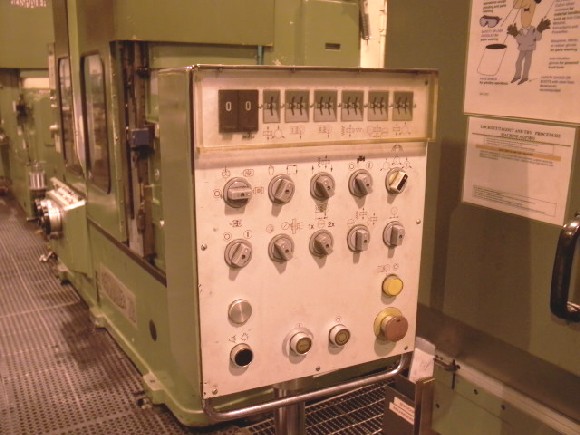

MOTORS AND ELECRTRICAL CONTROLS
