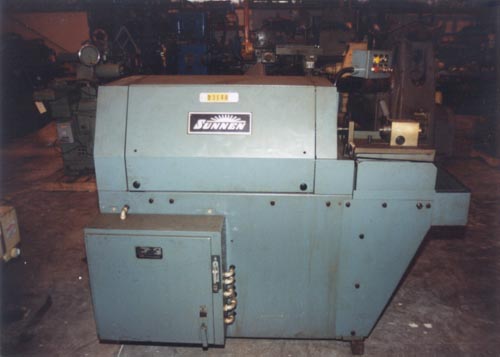

No. AH220 SUNNEN HORIZONTAL, 12" LENGTH, .233-1.039 DIA., DIAMOND

GENERAL SPECIFICATIONS:
DIAMETER .233 TO 1.039"
LENGTH RANGE UP TO 12"
SPEED 60 IPM
MAIN MOTOR LOAD 0-150
VOLTAGE 230
APPROXIMATE WEIGHT 1,430 LBS.
RPM LOW RANGE 600-1200
HIGH RANGE 1500-3000
CARRIAGE FEEDS 60-200 IPM

EQUIPPED WITH:
COOLANT

THIS HONE IS FOR CONSISTENCY OF SIZE, SURFACE FINISH AND BORE
GEOMETRY. NO VARIATION FROM PIECE TO PIECE. SINGLE STROKE
HONING SIZES BORES IN ONE PASS.
