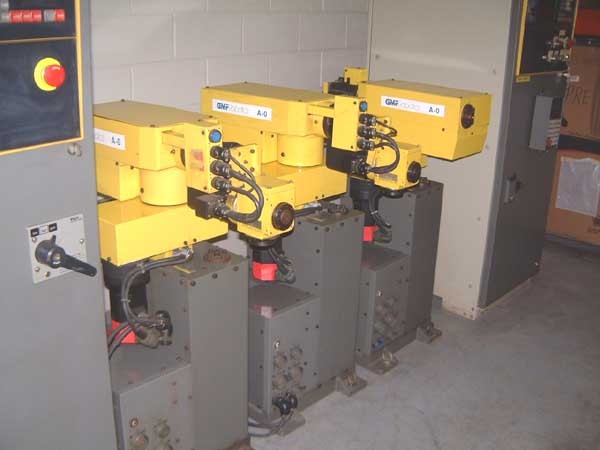

NO. A-1 GMF FANUC, 5 AXIS, FANUC R-C CTRL, AC SERVO DRIVES, TEACH PENDANT, RS232C INTERFACE

GENERAL SPECIFICATIONS:
MANUFACTURER GMF
MODEL A-1
NEW (APPROX.) 1985
CONTROLLER TYPE FANUC R-C
CONTROLLED AXIS 5
5 AXIS MAX. LOAD CAPACITY 19.84 LBS.
4 AXIS MAX. LOAD CAPACITY 33.07 LBS.
3 AXIS MAX. LOAD CAPACITY 66.14 LBS.
R AXIS REACH IN/OUT 11.81"/47.24"
Z AXIS REACH UP/DOWN 11.81"/23.62"
ROBOT WEIGHT (APPROX.) 397 LBS.
CONTROL WEIGHT (APPROX.) 552 LBS.

EQUIPPED WITH:
AC SERVO DRIVES

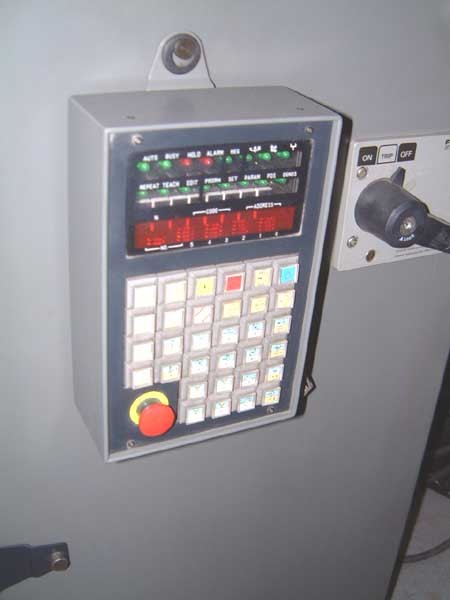

TEACH PENDANT
MANUAL FEED
RS232C INTERFACE
MANUALS
