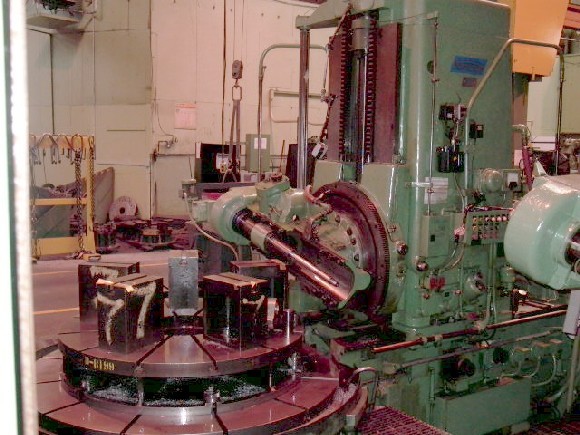

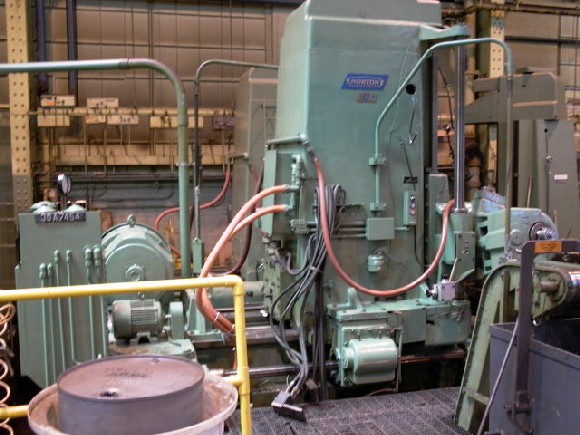

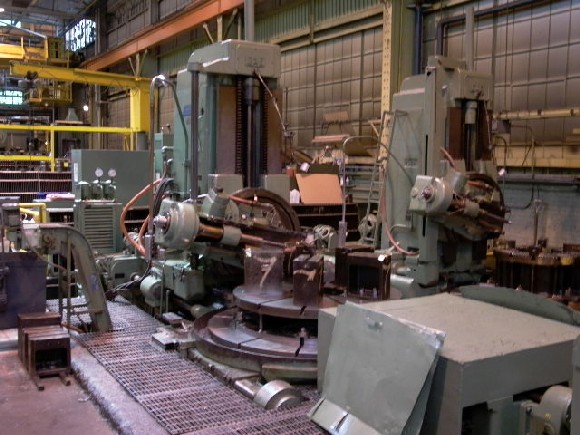

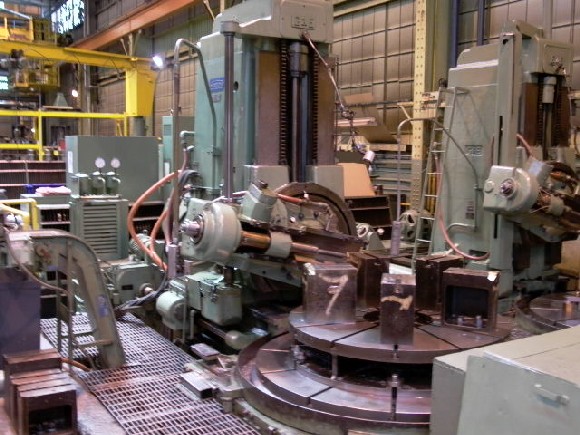

GENERAL SPECIFICATIONS:
MANUFACTURER.......................... NORTON GOULD &EBERHARDT
MODEL................................. 96H
NEW APPROXIMATELY..................... 1970
MAX. RATED PITCH...................... 1.5 DP
MAX. RATED FACE WIDTH:
SPUR GEARS......................... 42"
45 DEG. HELICAL GEARS.............. 36"
MAX. RATED GEAR DIAMETER.............. 125"
DIST. BETWEEN C/L OF HOB AND
WORK ARBORS........................ 8" - 66"
MAX. HOB DIAMETER..................... 10.75"
DIA. OF T-SLOTTED WORK TABLE.......... 78"
DIA. OF OWRK TABLE BORE............... 26"
MAX. TABLE LOAD, WORK & FIXTURES...... 30 TONS
INDEX RANGE (INCLUDING PRIMES)........ 25 -100
INDEX RANGE (WITHOUT PRIMES).......... 100 - 1200
# OF HOB SPEEDS....................... 14
HOB SPEED RANGE....................... 6 - 100 RPM
FEEDS (WHEN EQUIPPED W/SUITABLE GEAR). 0.003 - 0.2 IPM
FLOOR SPACE (APPROX.)................. 26'L x 9'W x 15'H
WEIGHT (APPROX.)...................... 85,000 LBS.
EQUIPPED WITH:
CROWNING ATTACHMENT
STANDARD HOB HEAD
DIFFERENTIAL
INFEED
HOB ARBOR WITH ARBOR SUPPORT
ASSORTMENT OF CHANGE GEARS
(2) LUBRICATION PUMP 0.75 HP 3-60-220/440 MOTORS
COOLANT PUMP A.C. MOTOR
HYDRAULIC UNIT DRIVEN BY 1.5 HP MOTOR
4-SPEED TABLE DRIVE 7.5/5/3.75/2.5 HP MOTOR
TRAVERSE DRIVE 7.5 HP MOTOR
MAIN DRIVE 25 HP VARI-DRIVE MOTOR AND ELECTRICAL CONTROLS
