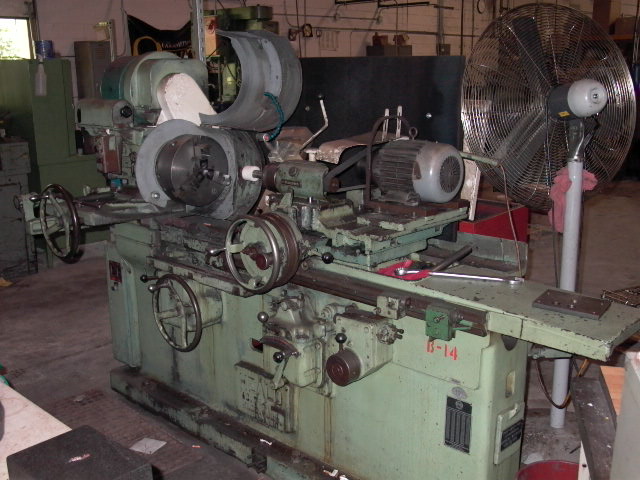

No. 72A HEALD, SWING 28", STROKE 20-5/8", HOLE 1-1/4", 4 SPEED WORKHEAD

GENERAL SPECIFICATIONS:
MANUFACTURER.............................. HEALD
MODEL..................................... 72A
SWING..................................... 28"
STROKE.................................... 20-5/8"
WORKHEAD:
MAX SWIVEL OF EXT. BRIDGE FROM C/L..... 8-1/2 DEG.
MAX SWIVEL OF WORKHEAD IND/OF BRIDGE... 16 DEG.
CENTER OF CHUCK SPINDLE FROM FLOOR..... 50"
HOLE THRU WORKHEAD SPINDLE............. 1-1/4"
SPEEDS AND FEEDS:
TABLE SPEEDS (INF. VAR.)............... 0 - 32 RPM
WORKHEAD SPEEDS (ADJ FROM DC DRIVE).... 152/456
CROSSFEED HANDWHEEL GRADUATIONS........ .001

EQUIPPED WITH:
4 SPEED WORKHEAD
MANUALD AND POWER TABLE
