NO. 728, MICROMATIC, 12" STROKE, 14.25" SPDL TO COLUMN, 3 HP SPDL, 5 HP HYD. PUMP

GENERAL SPECIFICATIONS:
MANUFACTURER MICROMATIC
MODEL 728
SERIAL # 137
MAXIMUM STROKE 12"
SPINDLE TO COLUMN CLEARANCE 14.25"
HYDRUALIC OIL CAPACITY 25 GAL.
COOLANT TANK CAPACITY 60 GAL.
SPINDLE MOTOR 3 HP
SPINDLE SPEED 1200 RPM
HYDRAULIC PUMP MOTOR 5 HP
HYDRAULIC PUMP SPEED 1200 RPM
WEIGHT (APPROX.) 5,400 LBS.
DIMENSIONS (APPROX.) 126" x 45" x 61"

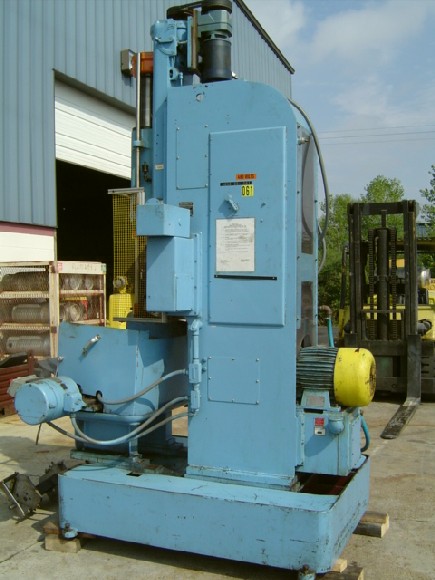

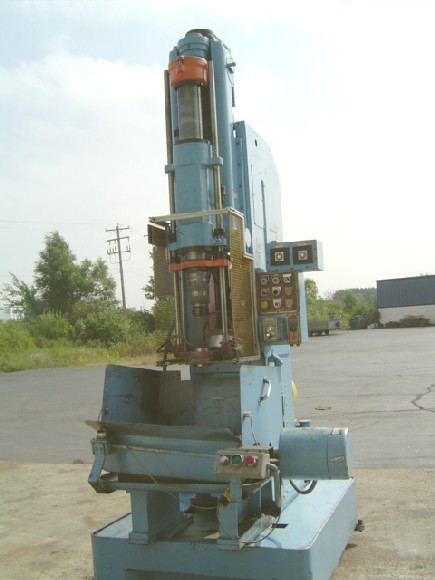

NOTE:MACHINES ARE STORED INSIDE PHOTOS TAKEN OUTSIDE AS THEY WHERE UNLOADED
