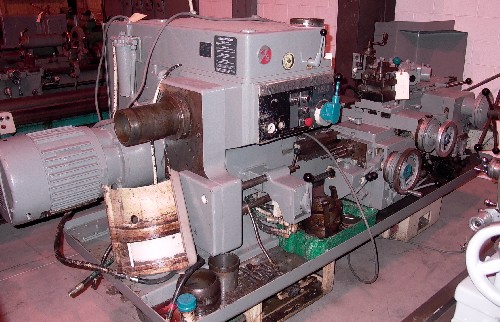

NO. 5 W & S MODEL M4660, 20" SWG, 5" HOLE, 1979, 4-1/2" BARFEED, TOOLPOST

GENERAL SPECIFICATIONS:
NEW 1979
SWING 20"
NUMBER OF TURRET POSITIONS 5
HOLE SIZE 5"
BAR FEED CAPACITY 4-1/2"
RPM RANGE 25-1000
MAXIMUM LENGTH TURNED 30"
TURRET FEED .0055 - .0225
CARRIAGE FEED .001-.0235
HORSEPOWER 20/10
NET WEIGHT 7,500 LBS.
VOLTAGE 440V

EQUIPPED WITH:
4 WAY TOOLPOST
CUTOFF HOLDER
2 ADJUSTABLE HOLDER
3 SHORT FLANGE HOLDERS
6 POSITION ADJUSTABLE TURRET STOP
4.5" BAR FEED
COLLETS: 2-5/8, 2-3/4, 2-9/16, 3, 3-1/8, 3-1/4, 3-1/2,
3-3/4, 4-1/4, 4-1/2
