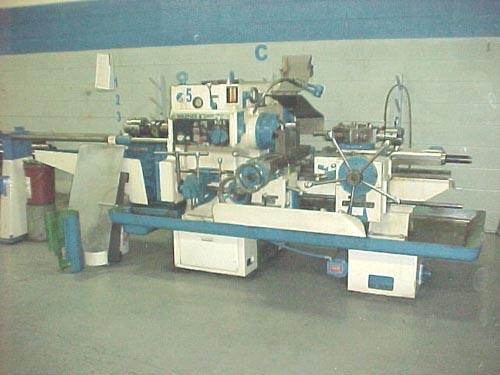

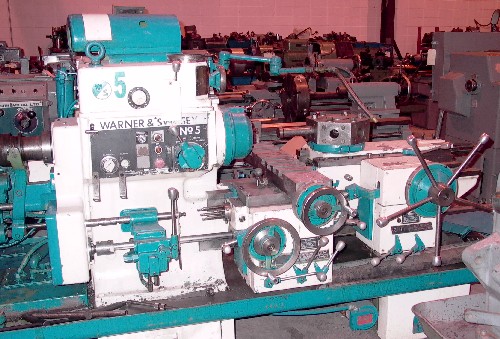

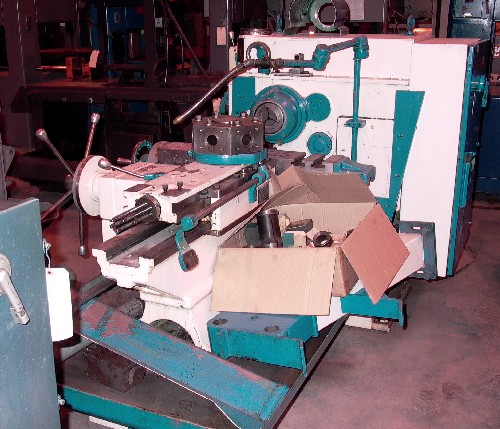

NO. 5 W & S MODEL M4660, 20" SWG, 3" HOLE, 1979, BARFEED

GENERAL SPECIFICATIONS:
MODEL 4660
SERIAL # 2833067
NEW APPRXOIMATELY 1979
SWING 20"
# OF TURRET POSITIONS 6
HOLE SIZE 3"
RPM RANGE 25-1556 RPM
MAX. LENGTH TURNED 73"
TURRET FEED .0055-.0225
CARRIAGE FEED .001-.0235
HORSEPOWER 20/10
NET WEIGHT 7,800 LBS.

EQUIPPED WITH:
6 POSITION ADJUSTABLE TURRET STOP
BAR FEED
COLLETS
HYDRAULIC COLLET CHUCK
UNIVERSAL CROSS SLIDE
