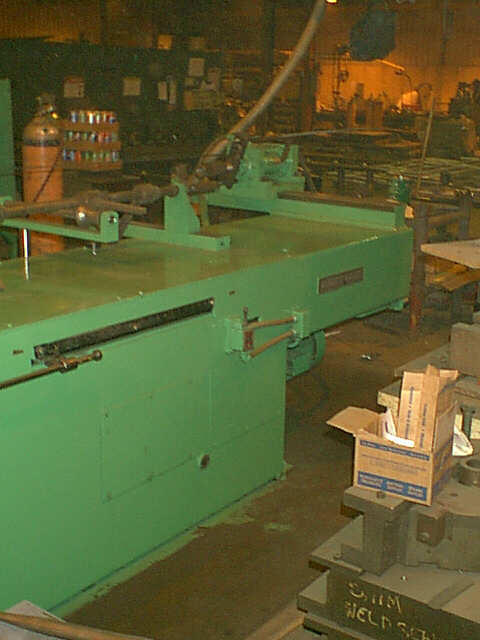

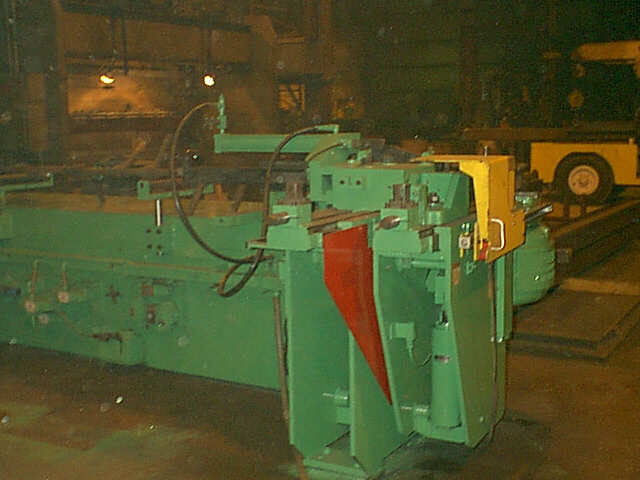

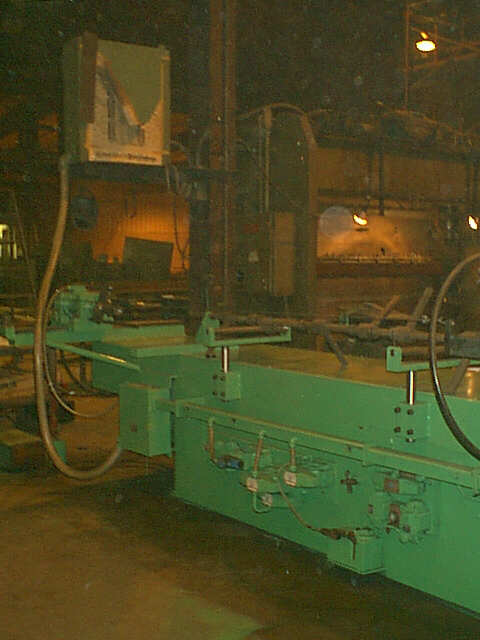

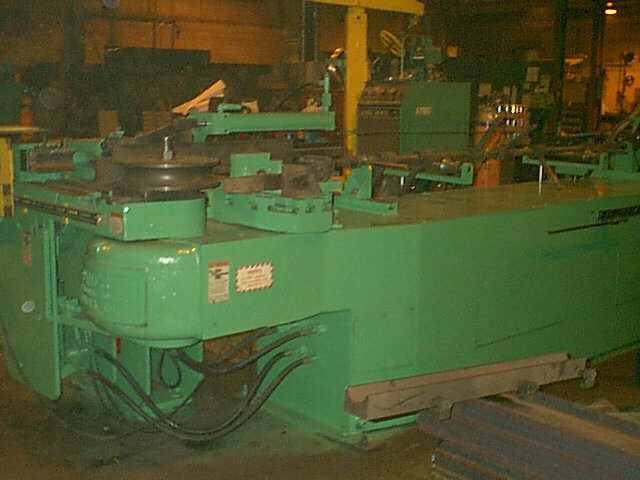

No 4 Pines, Wiper die assembly, dial a bend, extractor, 1979,

GENERAL SPECIFICATIONS:
MANUFACTURER....................PINES
MODEL...........................#4
AGE.............................1979

RATED CAPACITY..................6 X .250 ROUND TUBING
RATED CAPACITY..................4.5 X .337 SCHEDULE 80 STEEL PIPE
MAX RADIUS......................25"
MAX RADIUS EXTRA................48"
MAX BEND ANGLE..................180 DEG. +OVERBEND
MAX TUBE LENGTH.................13'6"
BENDING ARM SPEED...............2.3 RPM
MOTOR HP........................15
EQUIPPED WITH:
DIAL A BEND ANGLE OF BEND SELECTOR
MANDRAL EXTRACTOR
WIPER DIE HOLDER (PREVENTS WRINKLES)
