Specifications
Equipped With
GENERAL SPECIFICATIONS:

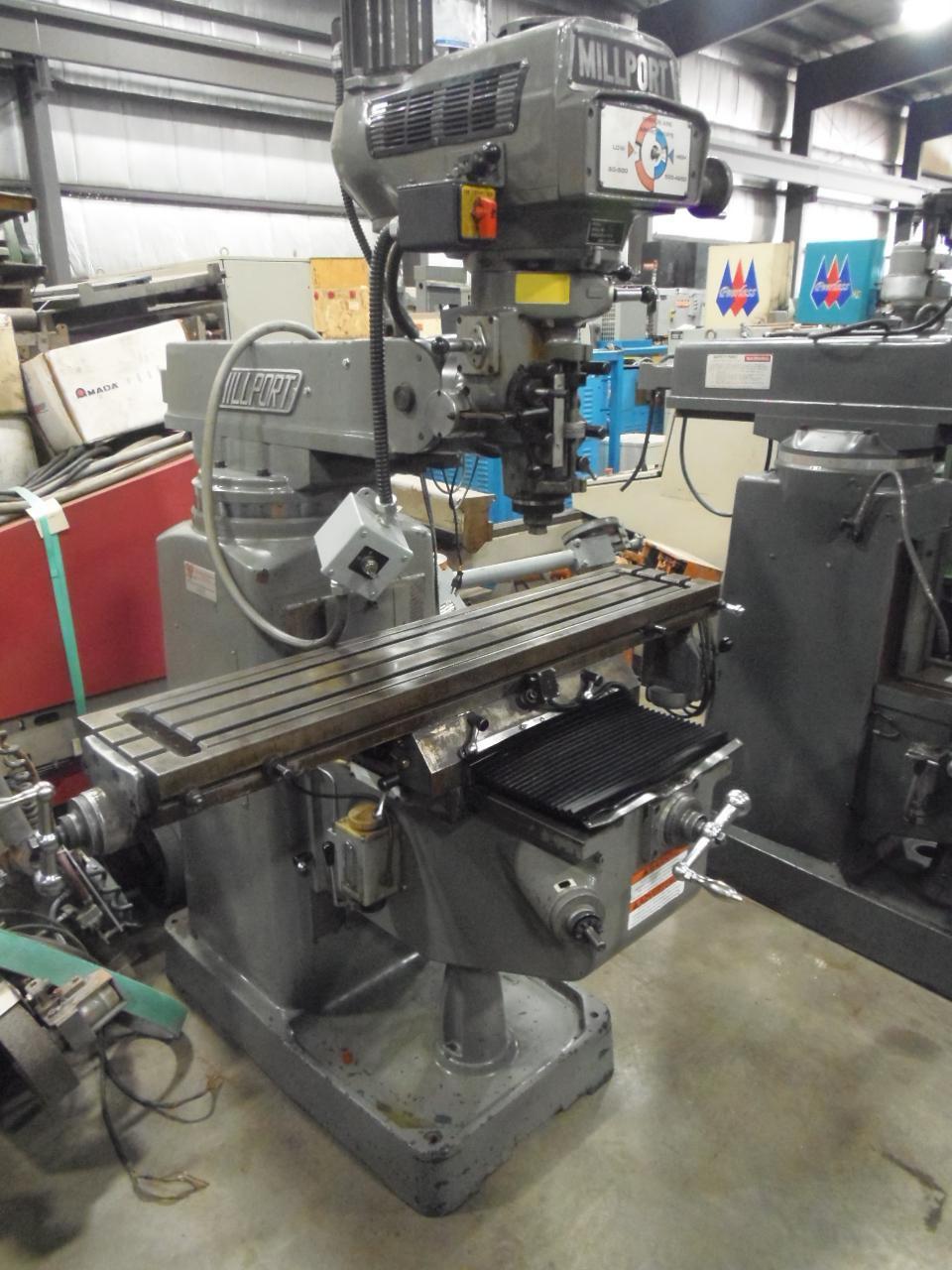

MANUFACTURER........................... Millport
MODEL.................................. 3KVHII
SERIAL NUMBER.......................... 3008

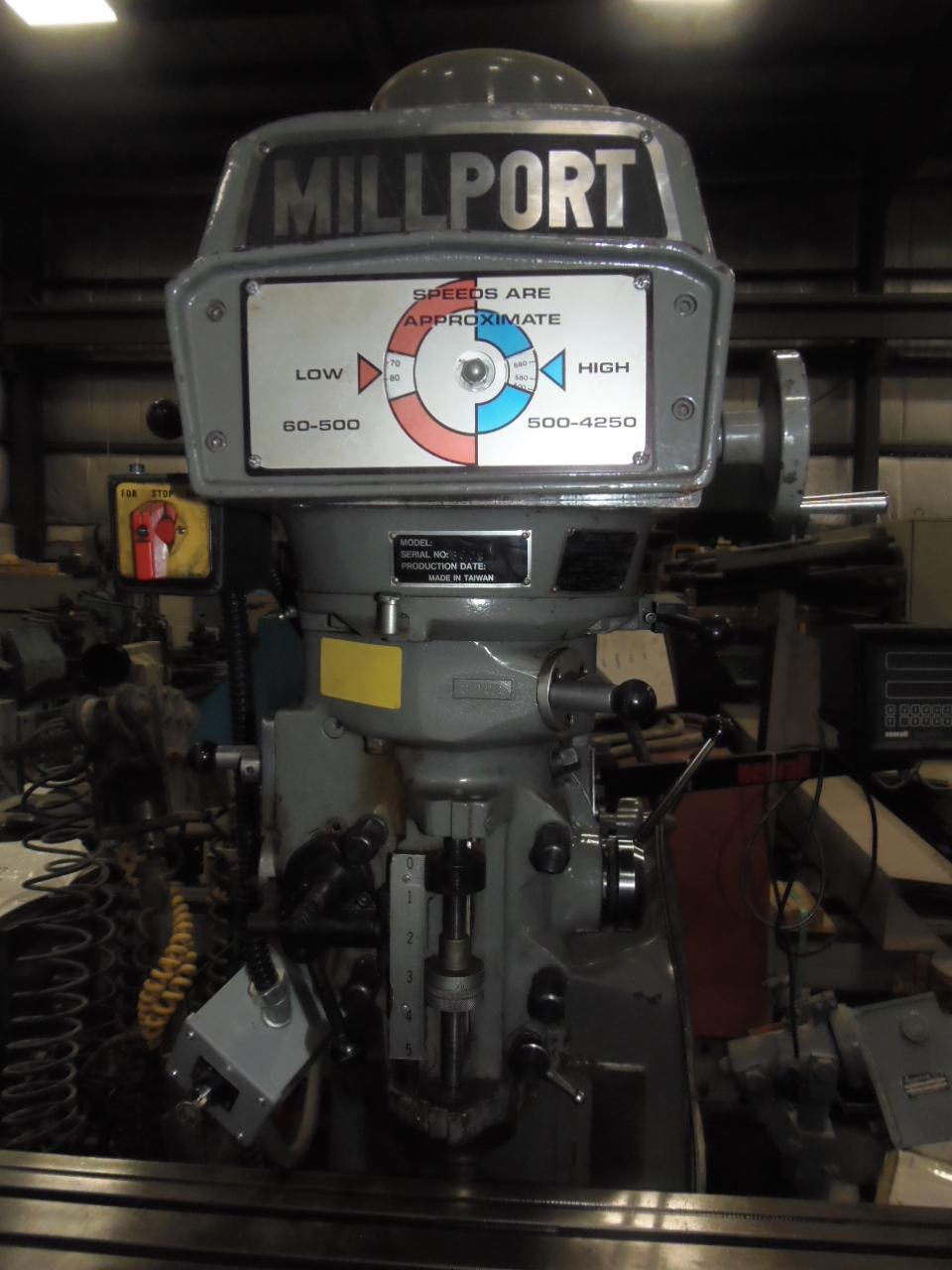

HEAD:
MOTOR (DUAL VOLTAGE)................... 3 HP 230V/460V
SPINDLE SPEDS (INFINITELY VARIABLE).... LOW 60 - 520 RPM
HIGH 500 - 4250 RPM
SPINDLE TAPER.......................... R8
QUILL DIAMETER......................... 3.375"
QUILL TRAVEL........................... 5.0"
QUILL FEEDS PER SPINDLE REV............ .0015-.003-.006"
HEAD MOVEMENT EITHER SIDE OF VERTICAL
(FRONT VIEW)........................... 90 DEGREES
HEAD MOVEMENT EITHER SIDE OF VERTICAL
(SIDE VIEW)............................ 45 DEGREES
OVERARM:
ROTATION............................... 360"
MAX. LINEAR ADJUSTMENT................. 23"
SPINDLE NOSE TO COLUMN FACE MAX........ 27.5"
MIN.................................... 7"

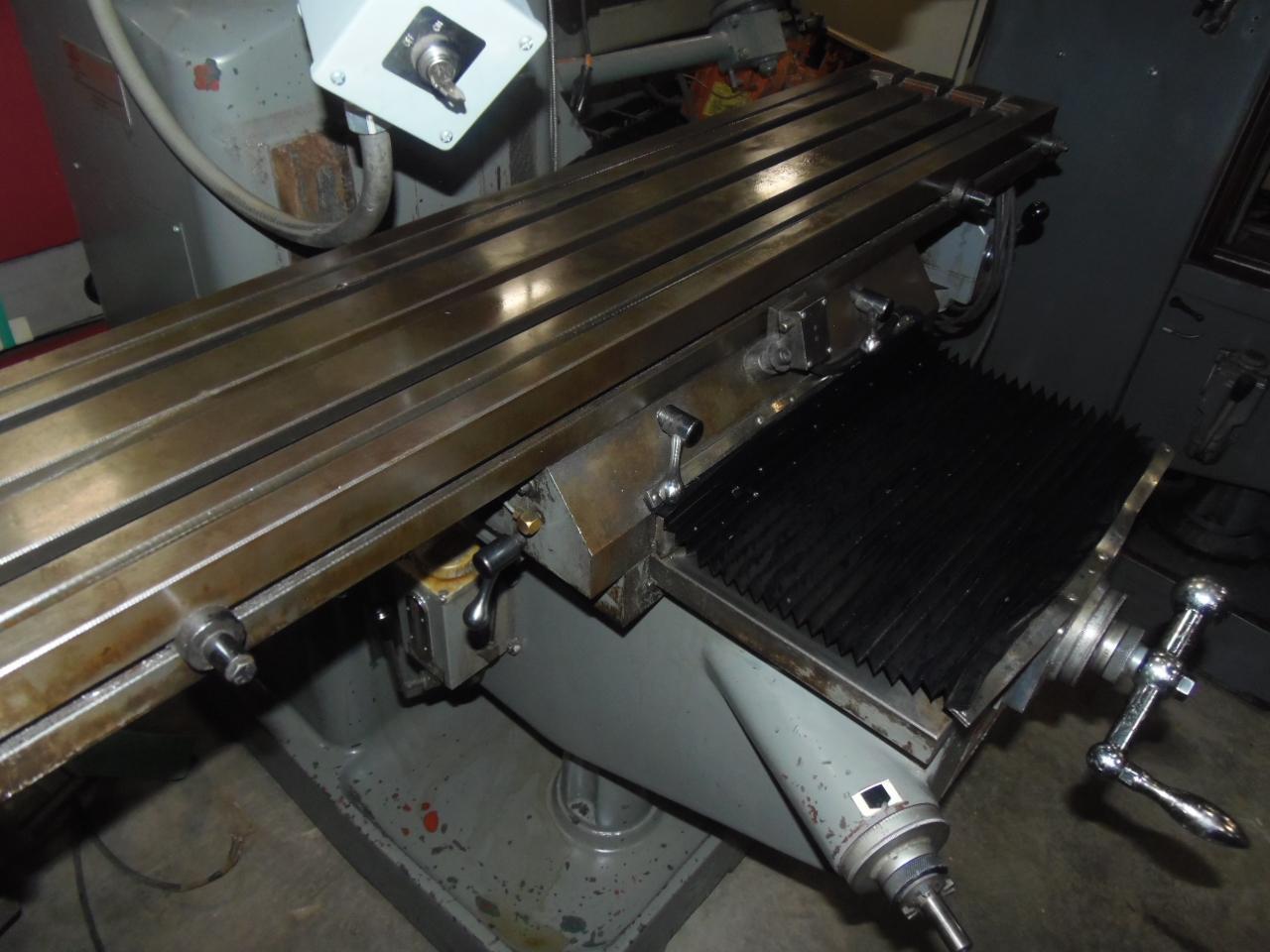

TABLE/SADDLE/KNEE
TABLE AREA............................. 50" X 10"
TABLE TRAVERSE......................... 36"
T-SLOTS (THREE)........................ 5/8" X 2-1/2" CTRS.
CROSS TRAVERSE......................... 16.5"
VERTICAL TRAVERSE...................... 16"
CAPACITY:
SPINDLE NOSE TO TABLE MAX.............. 18-1/2"
MIN.................................... 0"
WEIGHT APPROXIMATELY................... 3,200 LBS.
EQUIPPED WITH:

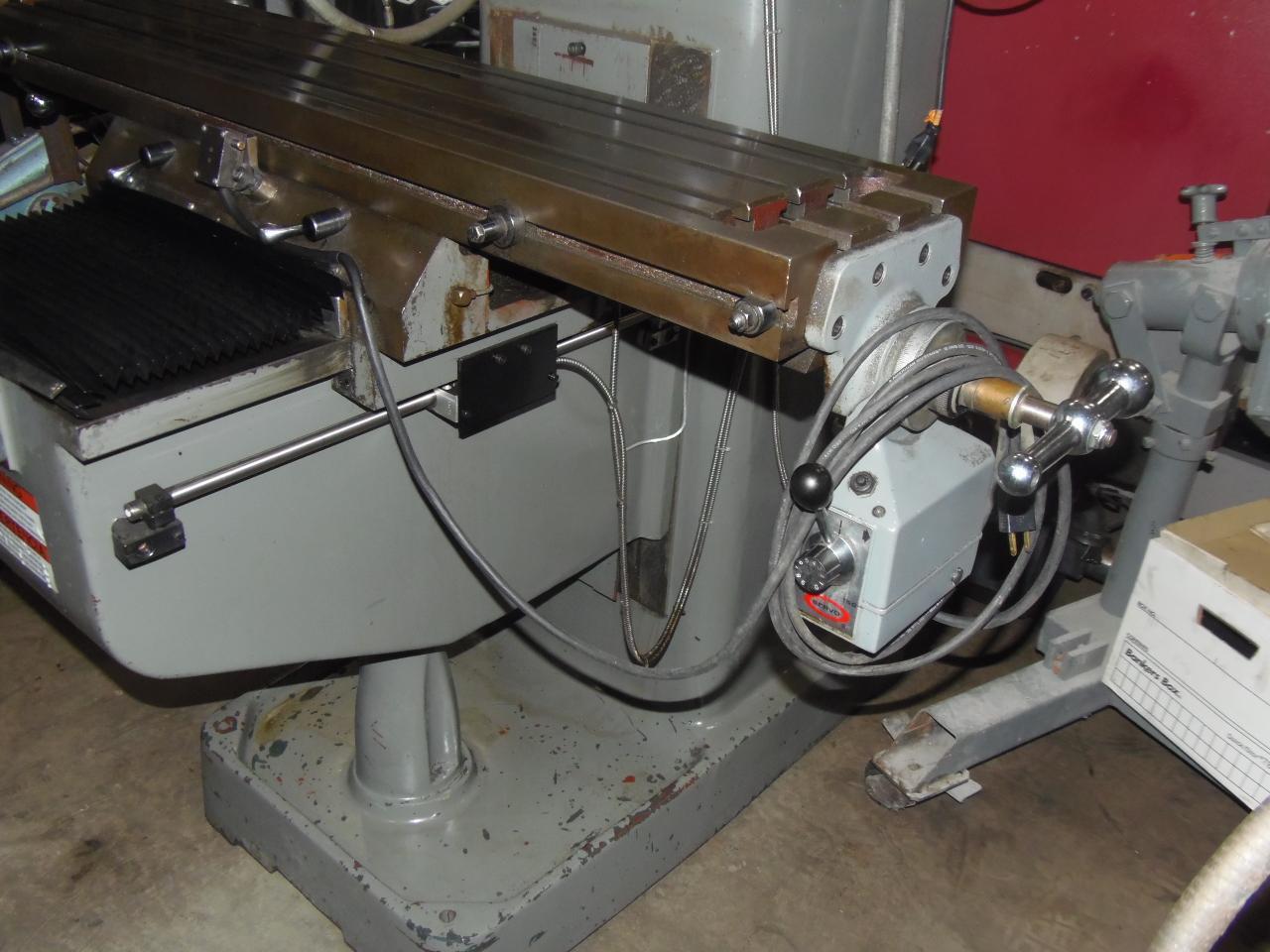

SERVO POWER FEED ON X

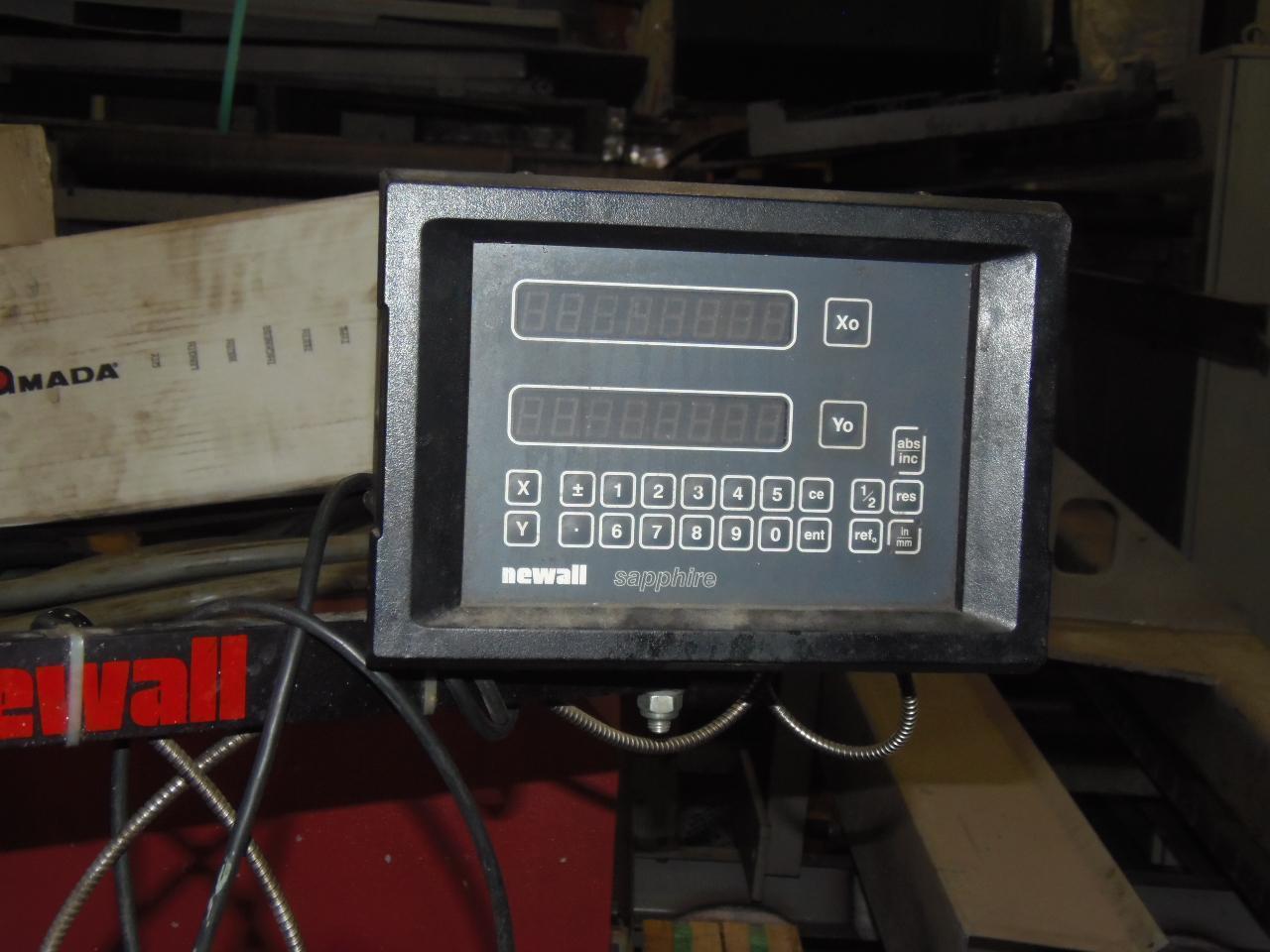

NEWALL SAPPHIRE 2 AXIS DIGITAL READOUT
1 PUMP LUBE
8 COLLETS
