Specifications
Equipped With

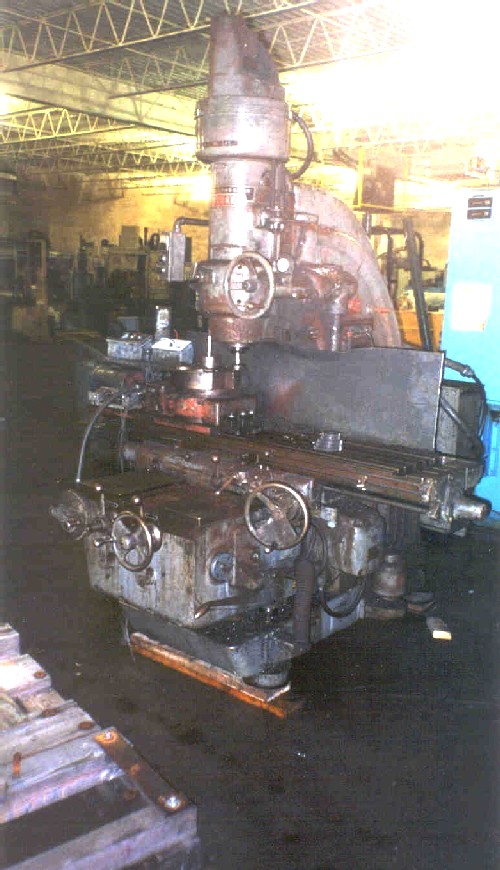

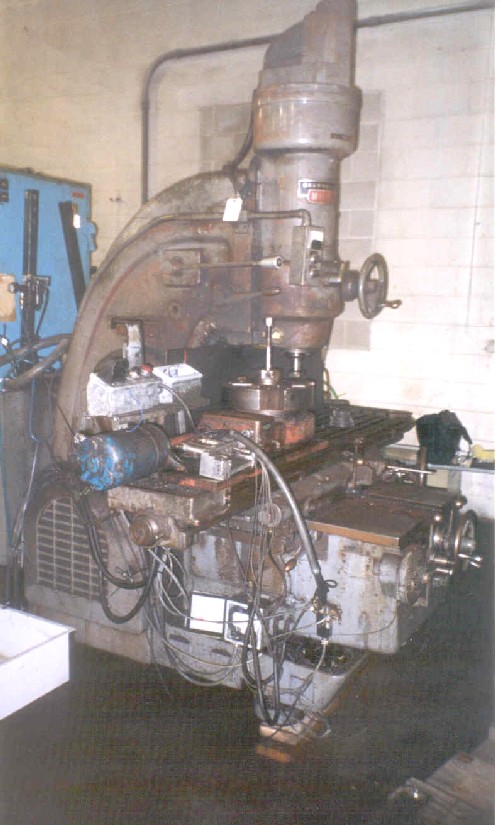

315TF-16 KEARNEY & TRECKER VERTICAL MILL
Serial # 55-1003-01 New 1965 Model # 315TF-16
Table Size: 15-3/4" x 78"
Travels: 48" X- Table, 14" Y - Saddle, 14" Z - Vertical Knee, 6" - Vertical Head
(24) Spindle Speeds:............ 15 to 1500 RPM
Spindle Taper:................... #50 National Standard
(32) Power Feeds:.............. 3/8" to 90 IPM for X & Y Axises
.................1/8" to 30 IPM for Vertical Knee Travel
................. 3/16" to 45 IPM for Vertical Head Travel
EQUIPPED WITH:
Automatic Table Cycle - NO Stop Dogs
All Ways Are Soft, Square Box Type
4-Position Turret Type Down Feed Stop with Indicator for Vertical Head Travel
Power Feed and Rapid to All 4 Axises of the Machine
Coolant Pump & Piping
Twin Screw (Dual) Knee Elevations Screws, Heavy Duty Wide Knee Design
Manual Tool Draw Bar
Motor Percent Load Meter
Positive Anti-Backlash Table Control
15 HP Main Spindle Motor
3 HP Feed & Rapid Motor
1/4 HP Coolant Pump Motor
Wired for 3 Phase, 60 Cycle, 220/440 Volt Operation
Overall Size: 93-1/2" L-R x 94" F-B x 92" H x 9900 Lb.
