Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL...................................... 9610
NEW APPROXIMATELY........................... 1969
TABLE SIZE.................................. 10-1/2" X 42"
TRAVELS: LONGITUDINAL ...................... 30"
CROSS....................................... 12"
OVERARM TRAVEL.............................. 0-21.5"
WIDTH OF KNEE SUPPORT ...................... 13"
LENGTH OF SADDLE SUPPORT TO TABLE........... 24"
SPINDLE NOSE TO TABLE TOP .................. 0-20.5"
SPINDLE SPEED............................... 50-2500 RPM
QUILL TRAVEL................................ 6"
ELECTRICS................................... 240 VOLTS / 3 PHS
EQUIPPED WITH:
POWER FEED (X AXIS)
SPINDLE MOTOR 3 HP

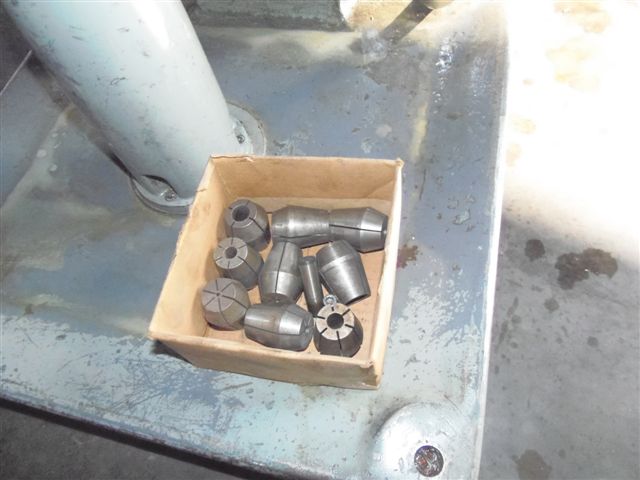

SOME COLLETS
